Middle Atlantic 3SP Fine Perf Security CO - SF3

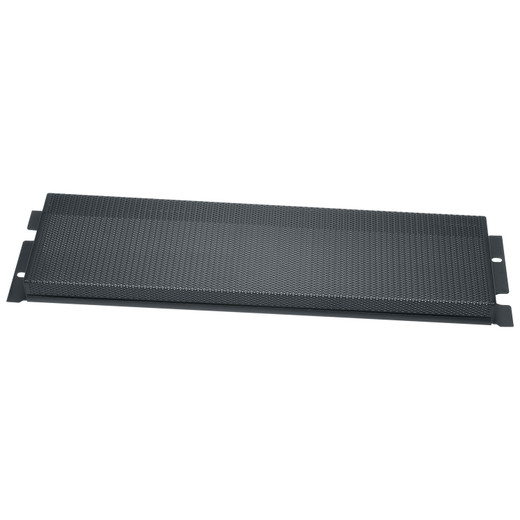

Middle Atlantic SF3 3U Fine-Perforated Rack Security Cover Panel

The Middle Atlantic SF3 is a 3U fixed rack security cover designed for integrators who need to close off unused rack space without blocking airflow or compromising cabinet security. At 19 inches wide and 5.25 inches tall, the SF3 fills three rack units with a fine-perforated steel face that maintains 23% open vent area — enough passive ventilation to keep heat from concentrating behind the panel. If you've worked on dense rack builds where thermal management and cable discipline both matter, this is the kind of detail panel that does real work.

Key Features

• 3 RU steel construction: The SF3 spans three rack units in a single panel, letting you fill a standard gap in one mount instead of stacking multiple 1U blanks. Fewer pieces means faster installation and a cleaner finished rack.
• Fine-perforated face, 23% open area: The fine perforation pattern isn't decorative — 23% open area provides meaningful passive airflow through a closed rack section. In equipment-dense cabinets, this prevents warm air from pooling behind blank panels and pushing back into intake zones.
• 19-inch rack-standard width: At exactly 19 inches wide, the SF3 drops into any standard 19-inch EIA rack without shimming or adapters. Depth is just 1.1 inches, so it won't conflict with rear cable management or deep shelf edges.
• Black powder-coat steel finish: The steel body and black finish match standard Middle Atlantic rack hardware for a consistent look across mixed rack builds. Steel construction handles the incidental contact and panel flexing that plastic covers rarely survive in field-installed cabinets.
• Two-point mounting: The SF3 secures at two rack rail mounting points, which is standard for panel covers of this height. Two screws seat quickly and hold the panel flush without over-engineering the install.
• Low profile, 1.1-inch depth: At 1.1 inches deep, the SF3 adds virtually nothing to the front-to-back envelope of the rack. You won't lose depth clearance for rear-mounted equipment or cable trays.
• Ships at 1.6 lbs: The complete shipping weight of 1.6 lbs confirms this is a lightweight accessory that won't affect rack weight distribution in floor-standing or wall-mount enclosures.

Integration and Compatibility

The SF3 is compatible with any Middle Atlantic rack enclosure or third-party 19-inch EIA-standard rack rail system. It is a passive panel — no wiring, no connectors, no tooling required beyond standard rack screws. It suits any rack accessory build where unused 3U openings need to be covered for airflow management, cable discipline, or basic physical access control. The fine-perforated style pairs well with ventilated rack doors and open-frame equipment bays in AV, security, and IT head-end builds. For integrators specifying full rack systems, consider pairing with a rack enclosure and a rack power distribution unit to complete the infrastructure. Buyers building network video recorder head-ends or access control head-ends will find the SF3 useful for closing off empty rack slots above or below equipment without trapping heat. This panel is not TAA compliant, which is a relevant flag for federal procurement projects governed by the Trade Agreements Act.

Frequently Asked Questions

Q: What rack size does the SF3 fit?

A: The SF3 is designed for standard 19-inch EIA rack rails and occupies 3U (three rack units, 5.25 inches tall). It fits any 19-inch rack enclosure regardless of brand.

Q: Does the SF3 provide any airflow, or does it fully block the rack opening?

A: The fine-perforated face maintains 23% open vent area, which allows passive airflow through the panel. It is not a solid blank — it provides meaningful ventilation while covering the opening.

Q: Is the SF3 TAA compliant for federal procurement?

A: No. The SF3 is not TAA compliant. It should not be specified for federal projects with Trade Agreements Act requirements.

Q: How deep is the SF3, and will it conflict with rear cable management?

A: The SF3 is 1.1 inches deep. This is a shallow panel that should not conflict with rear cable management or equipment mounted behind the rack face.

Q: How many mounting points does the SF3 use?

A: The SF3 uses two mounting points on the rack rails, which is standard for a 3U panel cover. Standard rack screws are used — no proprietary hardware required.

Q: What material and finish is the SF3?

A: The SF3 is constructed from steel with a black finish, matching standard rack hardware aesthetics in Middle Atlantic and third-party rack systems.

Ted Perry

The SF3 earns its place in rack builds by combining two things that cheap plastic blanks ignore: structural integrity and real airflow. That 23% open vent area is not a cosmetic spec — in a closed rack cabinet with active equipment generating heat, solid blanks create pressure differentials that push warm exhaust back into intake zones. The SF3 lets you close the opening without sealing it.

Technical Highlights:

• 23% vent open area: Meaningfully reduces thermal pocketing behind unused rack space. In a fully loaded 42U cabinet with two or three vacant sections, solid blanks can drive measurable temperature increases at equipment intakes — this panel avoids that.
• 1.1-inch depth: Shallow enough to install in front-access-only wall-mount enclosures where clearance behind the front rail is tight. Not every 3U blank clears 1.5 inches; this one comes in under that threshold.
• Steel construction at 1.6 lbs shipped: Steel resists panel flex under repeated contact in field-service environments. Plastic covers crack at the mounting holes in racks that get opened frequently — this won't.

Deployment Considerations:

• The SF3 occupies exactly 3U, which makes it most useful when equipment leaves a 3RU gap. If your gap is 1U or 2U, you'll need separate panels — this one doesn't split.
• TAA non-compliance is a hard stop for federal and some state government projects. Verify procurement requirements before specifying on government head-end builds.

The SF3 fits best in commercial security or AV head-end racks where equipment is staged across multiple visits and 3U gaps appear between NVRs, switches, and UPS units — closing those gaps cleanly without trapping heat is the exact problem this panel solves.
