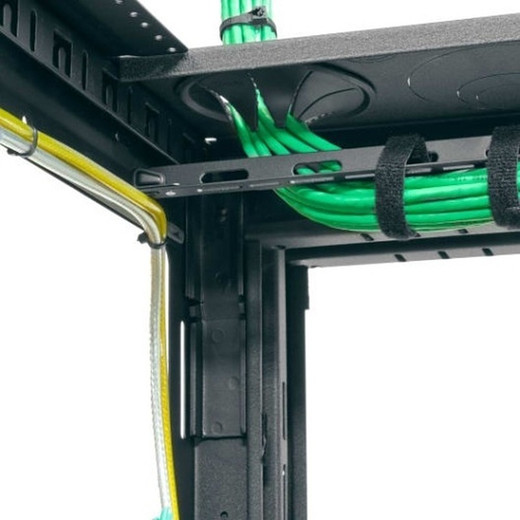

Middle Atlantic 38SP/27D Multibay BGR LRD - BGR-3827LRD

Middle Atlantic BGR-3827LRD 38RU Floor-Standing AV Rack Frame

Overview

The Middle Atlantic BGR-3827LRD is a 38-rack-unit, 27-inch-deep steel floor frame built for integrators who need a structural backbone that won't be the weak link in a high-density surveillance, AV, or IT head-end. At a UL-verified 3,000 lb load capacity and seismic certification to OSHPD OPM-0444-13, this is the right rack when the room requires accountability — hospital infrastructure, public-safety command centers, or any seismically active region with code requirements. The BGR-3827LRD ships as a frame-only configuration, meaning you bring your own doors, side panels, and PDUs — giving integrators who already have preferred accessories the flexibility to build exactly the enclosure they need without paying for components they'll swap out anyway.

Middle Atlantic's BGR rack family is a mainstay in professional AV and physical security head-ends precisely because the structural specs are verifiable, not marketing language. UL load ratings are third-party tested, OSHPD seismic numbers are permit-trackable, and TAA compliance is documented for government procurement. This isn't a consumer or prosumer rack — it's a commercial-grade steel frame designed and manufactured in the USA.

Key Features

• 38 Rack Units / 66.63" usable height: At 38RU of usable panel space (66.63 in / 169.2 cm), you have room to mount a full NVR stack, patch panels, PoE switches, UPS, and a KVM without creative stacking. For a multi-camera surveillance head-end, that typically means 4–6 NVRs, a managed PoE network switch, and power distribution all in one frame — no overflow rack needed in most mid-size deployments.
• 3,000 lb UL-rated load capacity: The UL listing on the 3,000 lb (1,360.8 kg) load rating means it's been independently tested, not self-certified. Dense server and storage configurations that would flex or stress a lighter frame stay planted. For NVR arrays with surveillance-grade HDDs, actual installed weights rarely exceed 600–700 lbs — the headroom here is structural insurance, not a spec you'll actually approach.
• Seismic certification — OSHPD OPM-0444-13, 1,175 lb seismic load: HCAI (formerly OSHPD) approval under permit number OPM-0444-13 is a hard requirement for healthcare facility installations in California. With a certified seismic load capacity of 1,175 lbs (533 kg), the BGR-3827LRD satisfies the structural review process for hospital security and nurse-call head-ends that otherwise require custom engineering submittals. If your project includes a California healthcare AHJ, this rack gets you to permit faster.
• 27" depth, 24.4" usable: The 27 in (68.6 cm) overall depth yields 24.4 in (62 cm) of usable front-to-back space — enough for full-depth servers and NVRs plus rear cable management. Shallow-depth network gear (1RU managed switches, patch panels) fits comfortably; only the most extreme deep-chassis servers push this limit. Check your deepest piece of gear before assuming clearance at the rear cable managers.
• Forward rackrail configuration: The forward rackrail design positions your equipment at the front of the frame, which simplifies cable management to the front of the rack and keeps rear depth available for vertical cable managers, PDU mounting, and airflow paths. This is the standard configuration for AV and security head-ends where rear-access for patching is more important than split front/rear mounting.
• Gangable construction: The BGR-3827LRD can be ganged side-by-side with adjacent BGR frames — practical for large command center buildouts where a single 38RU frame isn't enough and you want a unified structural and aesthetic footprint without freestanding gaps between racks.
• 25mm × 150mm swing handles: Integrated swing handles on a frame this size (116 lb shipping weight) matter during staging and installation. Handles fold flush when not in use so they don't interfere with adjacent rack accessories or side panels.
• Black wrinkle powder coat finish: The wrinkle powder coat is more durable against scratching and scuffing during installation than smooth gloss finishes — relevant in active construction environments where racks get bumped by trades before the room is finished.
• TAA compliant, US-manufactured: Federal and state procurement officers, defense contractors, and GSA schedule buyers have hard TAA requirements. This rack qualifies — Federal Ops Country of Origin is USA, and TAA compliance is documented.
• Forward compatible: Middle Atlantic's forward compatibility designation means accessories and panels designed for current and future BGR configurations will fit this frame without adaptation hardware. For integrators who standardize on a rack platform and want to avoid accessory mismatches across projects, this is the practical benefit of staying within a structured product family.

Integration and Compatibility

The BGR-3827LRD accepts standard 19-inch rackmount equipment across the full 38RU of panel space. Pair it with rack-mount PDUs and UPS units sized for your load, vertical and horizontal cable managers for the BGR family, and any Middle Atlantic side panels or blanking panels that fit the BGR rail spacing. The gangable design accommodates multi-frame configurations where project scope exceeds a single 38RU enclosure.

For surveillance-specific deployments, this frame is sized to host high-channel-count network video recorders, managed PoE switches, fiber patch panels, and KVM switching in a single controlled location — the 3,000 lb load floor and seismic certification make it appropriate for installations where the rack must survive both physical load and seismic event requirements without compromise.

The OSHPD OPM-0444-13 permit number is a concrete reference for project engineers submitting to California HCAI reviewers. The BGR-3827LRD (often searched as BGR 3827LRD) is an established frame in the permitting database, which streamlines the structural documentation phase for healthcare and life-safety projects.

Frequently Asked Questions

Q: Is the BGR-3827LRD TAA compliant for government procurement?

A: Yes. The BGR-3827LRD is TAA compliant with a Federal Ops Country of Origin of USA, making it eligible for GSA schedule and federal/state government procurement without an exception waiver.

Q: What is the seismic certification for the BGR-3827LRD?

A: The BGR-3827LRD carries HCAI (formerly OSHPD) seismic certification under permit number OPM-0444-13 with a seismic load capacity of 1,175 lbs (533 kg). This satisfies the structural requirements for California healthcare facility installations.

Q: Does the BGR-3827LRD include side panels or a rear door?

A: No. The BGR-3827LRD ships as a frame-only configuration with no rear door and no side panels included. These are sold separately, allowing integrators to specify the accessories appropriate for their installation.

Q: Can multiple BGR-3827LRD units be installed side by side?

A: Yes. The BGR-3827LRD is gangable, meaning it can be bolted side-by-side with adjacent BGR frames for multi-rack installations requiring a unified structural footprint.

Q: What is the usable rack depth on the BGR-3827LRD?

A: The overall depth is 27 inches (68.6 cm); usable front-to-back depth is 24.4 inches (62 cm). This accommodates full-depth servers and NVRs as well as rear-mounted cable management and PDUs.

Q: What load capacity is the BGR-3827LRD rated for?

A: The BGR-3827LRD carries a UL-listed load capacity of 3,000 lbs (1,360.8 kg) — a third-party verified rating, not a self-certified figure.
