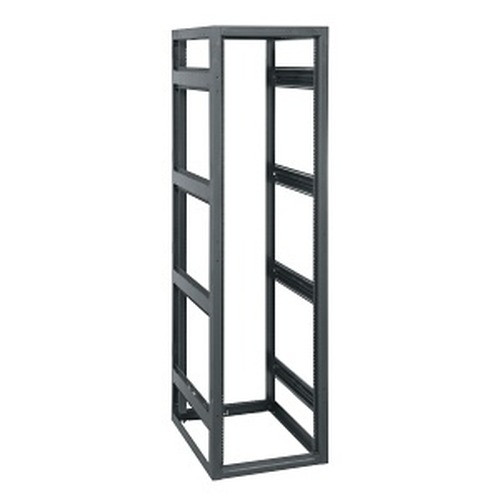

Middle Atlantic BGR-4127LRD 41U Open-Frame AV/Security Rack

Overview

The BGR-4127LRD is a 41U, 27-inch-deep open-frame steel rack designed for floor-standing deployments in AV, security, and IT infrastructure environments. It ships as a frame-only unit — no rear door — making it well-suited for high-density cable-management builds where rear access and airflow matter more than physical security. At 23 inches wide and 75.88 inches tall with a black wrinkle powder-coat finish, it fits standard equipment rooms without a raised floor. The rack's UL-rated 3,000 lb static load capacity and seismic rating (HCAI/OSHPD certification OPM-0444-13, seismic load capacity 1,175 lbs) make it a viable choice for California healthcare and other jurisdictions with structural compliance requirements. TAA compliant and manufactured in the USA, so it qualifies for federally funded projects without additional sourcing documentation. The MPN BGR-4127LRD ships at approximately 127 lbs — plan for a two-person install.

Compatibility

The BGR-4127LRD accepts any standard 19-inch panel-width equipment across its 41 RU of usable rail space (71.88 inches of usable height, 24.4 inches of usable depth). Forward rackrail configuration positions rail attachment at the front of the frame — confirm your equipment's rear-mount depth before ordering deep chassis gear. The frame is gangable, meaning multiple BGR units can be joined side-by-side for multi-bay deployments; the
