Middle Atlantic 25SP/32D Multibay BGR LRD - BGR-2532LRD

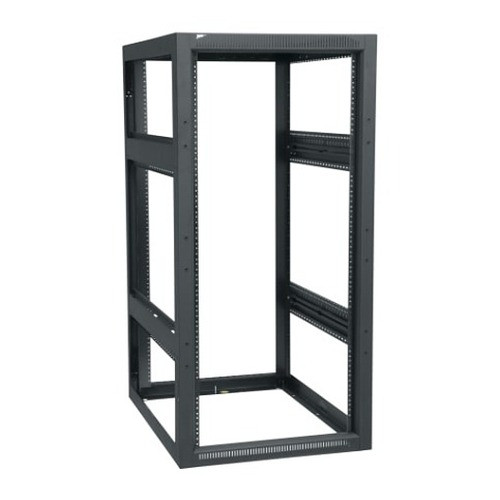

Middle Atlantic BGR-2532LRD 25RU Open-Frame Floor Rack

Overview

The Middle Atlantic BGR-2532LRD is a 25-rack-unit, 32-inch-deep open-frame floor rack built for AV, security, and IT equipment deployments where structural integrity and long-term platform consistency matter. At 23 inches wide with a 19-inch panel width and 29.4 inches of usable depth, BGR-2532LRD accommodates full-depth servers, NVRs, matrix switchers, and patch infrastructure without forcing compromises on cable routing or airflow. The steel construction with black wrinkle powder coat finish is designed for equipment rooms, wiring closets, and security head-end enclosures — environments where the rack takes abuse over a multi-year lifecycle. TAA-compliant and manufactured in the USA, it satisfies federal procurement and healthcare facility requirements out of the box.

Compatibility

The BGR-2532LRD uses a standard forward rackrail configuration compatible with any 19-inch EIA-310 rackmount equipment — NVRs, video management servers, PoE switches, UPS units, and patch panels all mount without adapters. The Middle Atlantic BGR series is gangable, so multiple BGR frames can be bolted side-by-side to expand capacity as a system grows without replacing the installed base. The forward-compatible rail design means future Middle Atlantic accessories — shelves, blanks, cable managers — drop in without retrofitting. This frame ships as frame only; no side panels, rear door, or top are included, which suits open-access head-end rooms but means you'll need to source enclosure panels separately if the installation requires containment. Seismic certification under HCAI (formerly OSHPD) number OPM-0444-13 qualifies this unit for California hospital and healthcare facility deployments governed by ASCE seismic standards — the 1,175 lb seismic load rating is the figure that matters for those compliance submittals, not the 3,000 lb static UL load capacity.

Installation Notes

Shipping weight is 107 lbs — plan for two-person installation and verify floor loading before positioning. The 25mm x 150mm swing handles on each bay assist with positioning during install. Overall footprint is 23 inches wide by 47.88 inches tall by 32 inches deep; confirm ceiling clearance and door width before delivery. No rear door is included, so rear cable access is unobstructed — factor this into your cable management plan if the installation is in a public or semi-public space. The open-frame floor rack configuration works best in controlled-access equipment rooms; if the site requires a locking enclosure, evaluate the enclosed BGR variant instead.
