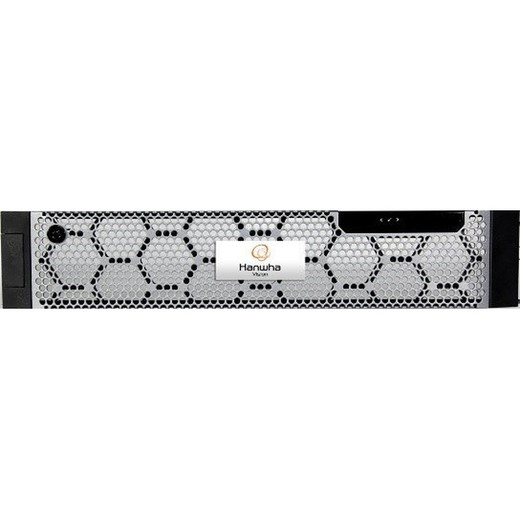

Hanwha WRR-P-S204S-144TB 2U Rackmount Enterprise NVR

Hanwha WRR-P-S204S-144TB 2U Rackmount Enterprise NVR

The Hanwha WRR-P-S204S-144TB is a 2U rackmount network video recorder engineered for large-scale enterprise surveillance deployments requiring both high storage capacity and operational resilience. This model ships with Wisenet WAVE VMS pre-installed—eliminating integration overhead and reducing time-to-deployment for multi-camera networks. The WRR-P-S204S-144TB configuration delivers 144TB of raw storage capacity, supporting up to 256 IP camera channels with 470 Mbps aggregate recording throughput, positioning it as a purpose-built solution for critical infrastructure, multi-site retail operations, government facilities, and data center security.

Key Features

• 12 Hot-Swappable 3.5-inch HDD Bays, 144TB Raw Capacity: Supports up to 144TB raw storage across 12 hot-swappable bays. Hot-swap design means you can replace a failed drive during operation without powering down—critical for 24/7 facilities where downtime directly costs revenue or compromises security oversight.
• RAID 0/1/5/6 Support with 8GB Non-Volatile Cache: RAID 5 yields approximately 116TB usable capacity with single-drive fault tolerance; RAID 6 protects against two simultaneous drive failures at the cost of additional storage overhead. The 8GB NV cache accelerates write operations and provides emergency data protection if power is interrupted during a write cycle.
• Intel Xeon 4410Y Processor & 16GB DDR4 RAM: Real-time transcoding and metadata processing without offloading to external compute. This headroom means you can run concurrent multi-stream recording, on-box analytics, and VMS operations simultaneously without degradation—valuable when budget constraints prevent deploying separate analytics servers or when edge processing latency matters.
• Dual 800W 80 Plus Platinum Power Supplies with Automatic Failover: Automatic switchover between PSUs eliminates a single point of failure. If one PSU fails, the second seamlessly takes full load and your recorder remains online. 80 Plus Platinum efficiency reduces operational heat dissipation and power consumption on systems that run 365 days per year.
• 256-Channel Support, 470 Mbps Aggregate Throughput: Scales from small multi-site operations to enterprise deployments. At 4 Mbps per camera (typical for H.265-encoded 2MP streams), this NVR handles 117+ cameras simultaneously at that bitrate. For higher-resolution feeds—8 Mbps per 4K camera, for example—validate your specific stream requirements to ensure you have throughput headroom and won't bottleneck the network interface.
• Wisenet WAVE VMS Pre-Installed, ONVIF-Conformant: Comes configured out of the box with Hanwha's Wisenet WAVE management software. ONVIF compliance means it supports Hanwha IP cameras and third-party ONVIF-compatible cameras without vendor lock-in. No separate license purchase required; pair your cameras, set retention schedules, and deploy.
• Native PoE Integration: Simplified camera wiring via PoE. However, plan your PoE power budget carefully: a full 256-camera network at 13W per camera (typical for high-resolution models) requires robust switch infrastructure. Consider a dedicated PoE+ or PoE++ power backbone or phase your rollout in stages to avoid straining a single switch.
• MicroSD Card Slot: Local backup and emergency short-term recording capability. Use for footage export, failsafe retention on specific high-value camera streams, or as a secondary backup target if primary storage fails.
• Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, or Ubuntu 22.04 LTS Compatibility: Align with your IT infrastructure. Windows Server deployments integrate with Active Directory for centralized authentication; Ubuntu deployments reduce licensing costs and enable Docker-based ancillary services such as custom analytics containers or webhook handlers for alarm notifications.
• 2U Rackmount Form Factor, Standard 19-Inch Rack: Occupies two rack units of vertical space. Plan your rack layout to ensure adequate cooling airflow above and below the unit, and account for cable management at the rear for network uplinks and camera feeds.

Integration & Compatibility

The WRR-P-S204S-144TB operates as a standards-compliant network video recorder with ONVIF support, meaning it integrates with both proprietary and third-party IP camera ecosystems. Wisenet WAVE handles camera discovery, recording scheduling, retention policies, and multi-view dashboards. For organizations running Milestone XProtect or Genetec Security Center, the ONVIF interface supports read-only or two-way integration depending on your VMS licensing tier. If you require advanced video analytics or edge intelligence, validate that your chosen analytics platform supports ONVIF Profile G or can ingest RTSP streams from the NVR's recording engine.

Network architecture is critical at 256 channels: plan for at least a 10 Gigabit uplink or dual 1 Gigabit interfaces to avoid choking the recorder's 470 Mbps throughput. If cameras are distributed across multiple VLANs or subnets, configure multicast or unicast stream replication at the switch layer to reduce broadcast flooding. Storage life depends on bitrate and retention policy: 144TB at 4 Mbps average per camera supports approximately 900+ hours of continuous 256-channel recording (roughly 37 days at 24/7 operation), but this scales down sharply if average bitrate rises or you apply RAID 6 overhead.

What's in the Box

• 1x Hanwha WRR-P-S204S-144TB 2U Rackmount NVR (pre-installed with Wisenet WAVE VMS)
• 1x Power cord (country-specific)
• 1x Quick Start Guide

Frequently Asked Questions

Q: Does the WRR-P-S204S-144TB support H.265 compression?

A: Yes. H.265 (HEVC) encoding reduces storage requirements 40–60% compared to H.264, depending on scene complexity and frame rate. This significantly extends storage life on a 144TB array, particularly valuable for 24/7 multi-camera deployments where every percentage point of compression efficiency translates to weeks of additional retention.

Q: What is the usable storage capacity after RAID 5 overhead?

A: Approximately 116TB usable with RAID 5 (single-drive fault tolerance). RAID 6 (two-drive fault tolerance) yields roughly 96TB usable at the cost of additional parity overhead. Choose RAID 5 for cost efficiency in managed data center environments with backup power; choose RAID 6 for high-availability facilities where the risk of dual-drive failure during rebuild justifies the storage cost.

Q: Can I expand the NVR to more than 144TB?

A: No. The WRR-P-S204S-144TB has 12 fixed hot-swappable bays. You cannot add external SAN or NAS storage directly to the appliance. If you need more capacity, consider deploying multiple NVRs (one per building or site) and federating them under Wisenet WAVE's multi-recorder management interface.

Q: Is the WRR-P-S204S-144TB NDAA Section 889 compliant?

A: Refer to Hanwha's NDAA compliance matrix. The WRR-P-S204S-144TB uses Intel processors and may contain components subject to NDAA restrictions. Verify with Hanwha or your integrator before deploying in federal or government facilities.

Q: How much cooling capacity does the unit require?

A: Dual 800W power supplies at full load dissipate approximately 2,400W of heat under continuous operation. Ensure your data center rack cooling can handle 8,000+ BTU/hour. Most standard hot-aisle/cold-aisle layouts accommodate this, but verify with your facilities team before racking the unit in constrained environments.

Q: Does Wisenet WAVE support remote access or mobile playback?

A: Yes. Wisenet WAVE includes remote client software and mobile app support (iOS/Android) for live viewing and playback. Configure firewall rules and reverse-proxy or VPN access to allow authenticated remote access without exposing the recorder directly to the internet.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WRR-P-S204S-144TB is a genuine rack-scale NVR for organizations running 100+ cameras across multiple sites or buildings. The 256-channel capacity and 470 Mbps throughput are not theoretical maximums—they're continuous recording targets. The Intel Xeon 4410Y processor and 16GB RAM are serious compute horsepower, meaning you can run transcoding, motion detection, and VMS queries simultaneously without watching the CPU throttle. The dual 800W 80 Plus Platinum PSUs eliminate the most common single point of failure in enterprise recorders, and the 8GB non-volatile cache prevents data loss if a power anomaly interrupts mid-write. However, this is not a small-office NVR.

Technical Highlights:

• 144TB raw storage across 12 hot-swappable 3.5-inch bays: At typical H.265 bitrates (3–4 Mbps per 2MP camera), you're looking at 37–50 days of continuous 256-channel recording before wrapping. At 116TB usable (RAID 5), you're still comfortably in the 30+ day range—sufficient for most forensic investigations and compliance hold periods.
• 470 Mbps aggregate throughput: This translates to roughly 58 MB/s sustained write to disk. For comparison, a single 1 Gigabit network interface maxes out at 125 MB/s, so the recorder will not saturate a single 1 GbE port. However, a full 256-camera deployment at 8 Mbps per camera (4K streams) requires careful network segmentation and potentially dual 10 GbE uplinks to avoid stream drops.
• Dual 800W PSUs with automatic failover: 2,400W max dissipation under full load. Most enterprise data centers can handle this, but verify cooling capacity before racking. Single PSU failure triggers automatic switchover with zero downtime—this is not a manual intervention scenario.

Deployment Considerations:

• Network design is critical: 256 cameras mean careful VLAN segregation, multicast stream management, and potentially a dedicated network segment for recorder ingress traffic. Do not attempt to backhaul 256 IP streams across a single 1 Gbps link or shared corporate network without QoS controls.
• PoE power planning is non-trivial: A full 256-camera deployment at 13W per camera requires ~3.3 kW of PoE power. Most PoE switches max out at 1–2 kW per unit. Plan for multiple PoE+ or PoE++ switches, or use a dedicated PoE distribution layer separate from your data network.
• Wisenet WAVE is capable but not Milestone-grade: It handles camera provisioning, retention schedules, and multi-view dashboards well. If you require deep VMS integration with access control systems, license plate recognition, or third-party metadata ingestion, validate that your analytics platform supports ONVIF Profile G or RTSP streaming out of the recorder.
• Ubuntu vs. Windows Server: Ubuntu 22.04 LTS reduces licensing costs and enables Docker-based ancillary services (custom analytics containers, webhook handlers). Windows Server 2022 integrates tighter with Active Directory and existing Microsoft infrastructure but requires per-core licensing.

The WRR-P-S204S-144TB is the right call for large retail chains (200+ locations), government facilities (DMV, courthouse, transit authority), or industrial campuses running 24/7 security. It's overkill for a 20-camera office building and undersized if you're adding 400+ cameras across a multi-building hospital. Size your NVR to your network (not just camera count), and validate cooling and power infrastructure before ordering.
