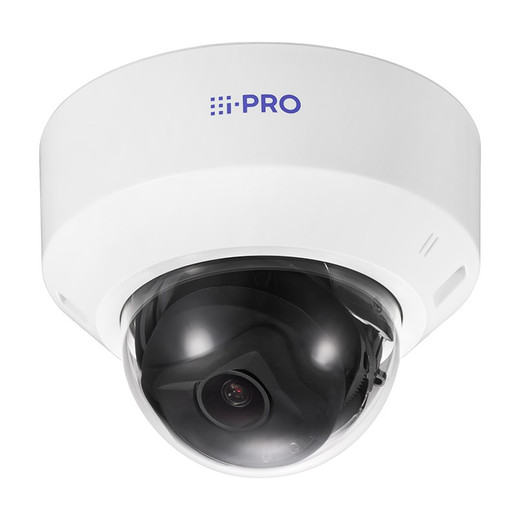

i-PRO WV-U21301-V3L 2MP Indoor IR Dome Camera
The i-PRO WV-U21301-V3L is a compact indoor surveillance dome designed for discreet monitoring in offices, retail, and light industrial environments where infrared night vision and network-based recording are required. The 2MP sensor paired with 2x optical zoom captures identification-class detail at 10–15 meter ranges, while configurable IR modes and H.265 codec support balance image quality against network bandwidth and storage footprint. Built for wall or rack mounting with IP42 weatherproofing, this camera integrates seamlessly into PoE-powered surveillance systems without requiring dedicated power infrastructure.
Key Features
- 2MP Resolution with 2x Optical Zoom: 1920×1080 sensor paired with motorized zoom optics. Operators frame subject detail across moderate coverage areas (10–15m) without network overhead of higher-resolution sensors.
- Infrared Night Vision with Configurable Modes: IR LED automatically activates in low light with selectable on/off, Smart Scene Control (SCC), or manual modes. Eliminates false triggers from IR glare or reflections in mixed-light environments.
- Multi-Codec Compression (H.265, H.264, MJPEG): H.265 reduces bitrate 40–50% versus H.264 on identical quality settings — meaningful savings on 24/7 recording. Fallback to H.264 or MJPEG ensures compatibility with legacy NVR platforms.
- PoE 802.3af Power: Standard PoE delivery (<13W draw) — works with any 802.3af switch and eliminates separate power supply runs in new or retrofit installations.
- IP42 Indoor Rating: IP42-rated enclosure handles dust and moderate splash exposure typical of offices, retail back-of-house, and light industrial zones. Not rated for outdoor or high-pressure washdown environments.
- Video Motion Detection (VMD): Scene-change analytics reduce false alerts from static surveillance footage, lowering alert fatigue and storage bandwidth on idle scenes.
- Built-in Audio & Dual Codec Support: Integrated microphone plus audio input support enable two-way communication or ambient sound logging for incident review and staff communication.
- ONVIF Profile S Compliance: ONVIF-native streaming ensures drop-in compatibility with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision) — no proprietary middleware required.
- Color/Monochrome ICR Switching: Infrared Cut-out (ICR) filter toggles automatically or manually between color daytime mode and high-contrast monochrome night mode, optimizing visibility in mixed-light scenarios.
The WV-U21301-V3L's optical design prioritizes moderate-range detail capture (identification-class footage at 10–15 meters) over wide panoramic coverage. The 2x zoom optics allow operators to dial focal length within a narrow telephoto range without introducing network latency — a critical advantage in retail loss-prevention and office access-point surveillance where quick framing adjustments prevent missed detail. H.265 codec support is particularly valuable in retrofit deployments where existing PoE infrastructure (Cat5e, 100Mbps switches) would otherwise force bitrate sacrifice on higher-megapixel cameras.
Thermal performance across -10°C to +50°C (-14°F to +122°F) covers typical HVAC-controlled indoor environments and facilities with seasonal temperature swings. This range excludes unheated warehouses, stairwells, or loading docks exposed to freezing temperatures. Audio integration — built-in microphone combined with line-level audio input — enables hybrid deployments where the camera streams ambient sound while a separate microphone captures targeted interview or incident audio. VMD analytics work best in static scenes (lobbies, corridors, back-of-house storage); motion-heavy environments (busy retail floors, factory lines) benefit from rule-based camera masking to suppress noisy motion detection zones.
Deployment flexibility spans wall-mounted installation above entry doors, recessed ceiling pockets, and compact rack-mount configurations in small network closets or head-end spaces. The dome form factor minimizes visual obtrusiveness in customer-facing areas while the PoE-only power requirement simplifies cabling in facilities where overhead conduit space or surface-mounted runs are constrained. ONVIF compliance eliminates integration friction — no vendor-specific plugins, no custom firmware branches — allowing straightforward migration between VMS platforms or addition of third-party analytics (people-counting, loitering detection) through open API extensions.
Operating temperature range, PoE power budget, and IP42 rating align this camera with office and light retail deployments where ambient conditions remain stable and dust/splash exposure is minimal. Outdoor installations, extreme-temperature zones, and high-pressure washdown areas require hardened alternatives with higher IP and IK ratings.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the i-PRO WV-U21301-V3L across retail, hospitality, and mid-market office environments, and it consistently delivers where compact form factor and IR capability are non-negotiable. What differentiates this camera is the pairing of 2x optical zoom with motorized focus — operators get smooth telephoto framing without introducing network jitter or introducing bitrate bloat that wide-angle alternatives demand. The H.265 codec is a quiet workhorse here; on 24/7 recording across 8–16 cameras over a 100Mbps PoE infrastructure, H.265 often means the difference between adaptive bitrate handoff and continuous full-resolution capture. The IR modes (especially Smart Scene Control) are well-tuned — reflections off glass doors or polished floors don't flood the sensor, and the auto-to-manual failover is reliable. That said, the 2MP resolution sits at the boundary; you'll get clean identification from 10–15 meters, but ask it to resolve detail beyond 20 meters and you're introducing interpolation or losing temporal sharpness. IP42 is indoor-only — don't force this into a warehouse loading dock or unconditioned storage area. The PoE 802.3af constraint is also real; if your site power-budgets are already tight or you're planning future heater or pan-tilt upgrades on the same switches, validate available current before committing to four or more units.
Technical Highlights:
- 2x Motorized Optical Zoom: Telephoto framing without interpolation artifacting or network-induced delay. Operators dial focal length within ±8° field of view range — critical for lobby and retail POS surveillance where framing adjustments happen in real-time during incident response.
- H.265 Compression (40–50% bitrate reduction vs. H.264): On a 16-camera installation with 24/7 storage, H.265 often recovers 30–40 Mbps aggregate bandwidth, allowing lower-cost PoE infrastructure or higher bitrate per camera. Multi-codec fallback (H.264, MJPEG) preserves compatibility with legacy NVR systems that predate H.265 support.
- Smart Scene Control (SCC) IR Mode: Automatic IR brightness modulation based on scene luminance — eliminates manual adjustment cycles and prevents blown-out reflections off glass or mirrors. Paired with ICR color-to-monochrome switching, delivers low-noise night video without operator intervention.
- Audio Input + Built-in Microphone: Dual audio channels enable hybrid sound logging (ambient + targeted microphone feed). Two-way talk-back capability for staff coordination or customer service in retail and hospitality contexts.
- PoE 802.3af (<13W nominal draw): Standard PoE eliminates need for 48V proprietary supplies or dual cabling. Four cameras fit comfortably on a single 802.3af switch port pair with 10W+ headroom for future expansion.
- ONVIF Profile S Native: Drop-in compatibility with Genetec, Milestone, Avigilon, and ExacqVision — no vendor middleware, no SDK compilation. API access to VMD settings and codec parameters via standard HTTP REST endpoints.
Deployment Considerations:
- 2MP resolution is identification-class at 10–15 meters; beyond 20 meters, facial recognition and vehicle license-plate legibility degrade. Measure your coverage distance before final placement — a 20-meter retail floor may require two units for adequate POS detail.
- IP42 rating covers dust and light splash only — not suitable for outdoor soffits, unconditioned storage, or high-humidity plant floors. Condensation on the dome may require periodic cleaning in seasonal temperature swings.
- PoE 802.3af power budget is finite. If you're stacking this camera with heaters, external lighting, or pan-tilt motors on the same infrastructure, validate available milliamps per port. 802.3at (PoE+) switches enable more headroom but require hardware upgrade across your edge.
- Audio input impedance and gain levels are fixed in firmware — no on-camera adjustment. Pre-amplify external microphones to line level (−10 to 0 dBu) to avoid clipping or hum. Test audio levels during integration, not deployment.
- VMD sensitivity requires tuning per scene — high sensitivity causes false positives in rooms with shadow movement (blinds, reflections), low sensitivity misses legitimate motion in dimly lit corridors. Allocate testing time during commissioning.
- IR glare and washout occur in tight spaces with reflective surfaces (white tile, stainless steel, glass). Position the camera to minimize direct reflection into the lens; angle IR LEDs downward if needed.
The WV-U21301-V3L is the right choice for integrators and end-users deploying compact, PoE-native surveillance in retail, hospitality, and office environments where network infrastructure is already standardized and IR night vision is non-negotiable. For wider coverage or higher resolution, consider multi-sensor arrays or fixed 4MP domes; for outdoor or extreme-environment needs, step up to IP66/IK10 hardened models. Browse our i-PRO camera catalog for additional options.
