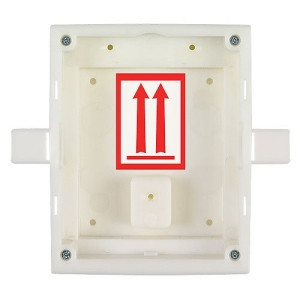

2N 01286-001 IP Verso 3 Module Wall Installation Box
The 2N 01286-001 is a purpose-built wall-mounted enclosure designed to house up to 3 modules of the 2N IP Verso intercom system in a recessed in-wall configuration. For integrators and architects specifying IP-based access control and intercom infrastructure, this box solves a specific problem: delivering a professional, integrated appearance without surface clutter or visible wiring. In-wall mounting keeps the intercom module flush with your wall surface, eliminating the visual footprint of a surface-mounted unit while maintaining full electrical and functional access to the module.
Key Features
- 3-Module Capacity – Holds up to 3 IP Verso modules in a single enclosure, allowing you to stack additional reader or control modules (such as keypads, card readers, or relay modules) without requiring separate boxes. Reduces installation labor and conduit runs compared to installing modules individually.
- In-Wall Recessed Design – Purpose-engineered for stud-cavity or rough-opening installation behind drywall or finished wall material. The box frames the mounting cavity, so your completed installation presents only the module fascia and button layout — no visible enclosure edges or surface protrusion.
- Clean Architectural Integration – Accepts standard cover plates and bezels sized to match standard US electrical outlet boxes (where applicable), so the finished appearance blends with lobby, corridor, or office wall finishes. No special trim or architectural afterthoughts required.
- 2N IP Verso System Compatibility – Engineered exclusively for 2N IP Verso intercom modules. The box accommodates the mechanical footprint, electrical backplane, and connector layout of the IP Verso product line, ensuring modules mount securely without adapters or modifications.
- Supports Multi-Module Configurations – Stack access control readers, audio/video modules, and relay modules within the same box. This modularity is core to the IP Verso design philosophy, allowing you to start with a single audio/video module and add readers, keypads, or output control without requiring a site revisit or additional enclosure.
- Professional Finish for Multiple Sectors – Suitable for corporate office entry points, residential multi-unit buildings, educational facilities, government buildings, hospitality properties, and new construction planning IP-based communication infrastructure. In each case, the recessed mounting delivers a finished appearance that suits professional interior design standards.
Integration & Compatibility
This enclosure is part of the broader 2N IP Verso product ecosystem. It is designed to work with any 2N IP Verso module — audio/video intercoms, card readers, keypad modules, and relay outputs all share the same module form factor and backplane connector. If you are deploying a multi-module access control or intercom system, the 01286-001 eliminates the need to specify multiple surface-mount boxes or scattered wall locations. All modules integrate into a single logical point of control via Ethernet (PoE) and can be configured and monitored from a common 2N management application or third-party ONVIF-compatible access control platform.
For installation planning, confirm that your wall cavity is deep enough to accommodate the module depth (typically 70–100mm for standard IP Verso modules, depending on configuration) plus the enclosure frame thickness. The box is designed for standard stud-to-stud framing (typically 16 inches on center). Work with your electrical contractor or integrator to ensure conduit routing and PoE cable runs terminate cleanly to the box location.
Deployment Scenarios
This box is essential when your deployment requires a professional, finished appearance. In office buildings where visible intercom equipment at entry points is discouraged by design standards, recessed mounting via the 01286-001 is your primary option. In residential multi-unit properties, the same benefit applies — a single, neat module location per unit rather than a visible surface-mount box. New construction projects that are pre-planning for IP-based access control benefit most, since the box can be installed during rough-in and finished over with drywall, eliminating surface afterthought.
When to Choose a Different Approach
If your deployment does not require recessed mounting (for example, you're retrofitting a surface-mount installation or your wall structure doesn't support cavity installation), consider the standard intercom accessory mounting solutions 2N offers for surface-mount applications. If you need to mount a single module only and in-wall installation is not a priority, a standard surface-mount bracket may reduce installation complexity and cost. Verify your module configuration and count before ordering — the 01286-001 is dimensioned for 3 modules maximum; if you anticipate expansion beyond 3 modules, you'll need multiple boxes or a custom configuration.
Frequently Asked Questions
Q: Is the 2N 01286-001 suitable for retrofit installations?
A: In-wall recessed mounting works best in new construction or during major renovation when wall cavities are open. Retrofit installations into existing finished walls require cutting and patching drywall around the box opening, which may not be practical depending on your wall surface and building condition. Surface-mount options are typically faster for retrofit work.
Q: Does the 01286-001 come with any modules, or is it an enclosure only?
A: The 01286-001 is an enclosure box only. You must order IP Verso modules (audio/video, readers, keypads, etc.) separately. Confirm your module configuration and count before installation so the box size matches your needs.
Q: Can I install all 3 module positions with mixed module types?
A: Yes. The 01286-001 accommodates any combination of IP Verso modules — audio/video units, card readers, keypad modules, and relay control modules all share the same module format and backplane connector. You can mix and match as your access control design requires.
Q: What electrical rough-in is required for the 01286-001?
A: IP Verso modules are powered via PoE (Power over Ethernet) delivered through a standard network cable. Plan a single Ethernet conduit run from your network closet or PoE-enabled switch to the box location. No separate 120V or low-voltage power wiring is required, which simplifies rough-in and reduces installation cost.
Q: Does in-wall mounting affect audio or video quality?
A: No. The module itself is recessed, but the speaker grille and camera lens remain at the surface, so audio and video performance are unaffected. The enclosure is passive — it provides structure and wire management only.
Q: Is the 01286-001 available with a specific finish or color?
A: The enclosure is typically supplied in a neutral finish compatible with standard electrical outlet box trim rings and cover plates. Confirm finish options with your supplier, as customization may be available depending on project specifications.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01286-001 is a straightforward specification: a recessed wall enclosure that accepts 3 IP Verso modules in a single in-wall cavity. The key benefit is architectural — finished intercom installations at corporate or residential entry points no longer require visible surface-mount boxes. This is not a technical differentiator in terms of module functionality or network performance; it's a professional aesthetic and installation-simplicity win. If your project requires a polished, integrated appearance, the 01286-001 is the right choice. If surface mounting is acceptable, it's not necessary.
Technical Highlights:
- 3-Module Stacking Capacity: Consolidate audio/video, card readers, keypads, and relay outputs into a single enclosure, reducing conduit runs, cable management complexity, and installation labor across multi-module access control deployments.
- In-Wall Cavity Mounting: The box is engineered to sit flush in a standard wall stud cavity (typically 16-inch on-center framing). Only the module fascia and front plate are visible after drywall finish — no edge bead, trim ring, or enclosure frame visible from the front. Delivers a finished appearance equivalent to a standard electrical outlet.
- PoE-Only Power Requirement: IP Verso modules draw power from a single Ethernet cable (PoE or PoE+, depending on module count and configuration). The 01286-001 has no separate power entry; conduit planning is simpler and electrical rough-in cost is lower than traditional intercom systems requiring 24VDC or 110VAC line voltage.
Deployment Considerations:
- Wall Cavity Depth and Structure: Confirm your wall framing and cavity depth accommodate the module stack (typically 70–100mm depending on configuration) plus the enclosure frame. In retrofit situations where walls are finished, the cost and disruption of cutting and patching may outweigh the aesthetic benefit — surface mounting may be the pragmatic choice.
- Modules Sold Separately: The 01286-001 is the enclosure only. Budget for IP Verso modules separately — audio/video, readers, keypads, and relay outputs are individual line items. Confirm your module selection before ordering the box to avoid over- or under-sizing.
Position the 01286-001 in new construction projects, major renovations, or high-visibility corporate and residential lobbies where architectural integration is a stated requirement. For retrofit retrofits, service calls, or deployments where surface mounting is acceptable, the standard surface-mount options will reduce complexity and cost.
