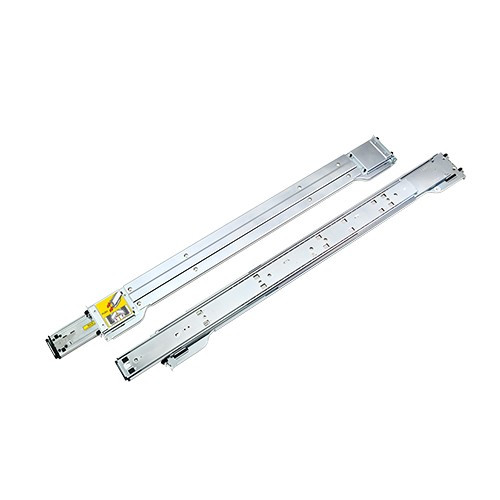

ACTi PMAX-1203 26" Rackmount Rails

ACTi PMAX-1203 26" Rackmount Rails

Overview

The ACTi PMAX-1203 is a 26-inch rackmount rail kit designed to secure ACTi network video recorders and related equipment inside standard 19-inch server racks. This accessory solves the alignment and weight-distribution problem when mounting heavier NVR appliances vertically in a SOC or data-center rack — the rails ensure stable positioning, distribute load across the frame, and allow straightforward sliding insertion and removal without stress on front connectors or backplane connections.

Compatibility

The PMAX-1203 is engineered for these ACTi models: CMS-200, ENR-190, ENR-420, ENR-421, and LPR-120. Verify your specific NVR model against this list before ordering — rail kits are not universal across all rackmount form factors. If your NVR is not listed, consult the product documentation or contact a pre-sales resource to confirm fit.

Installation Notes

These rails mount to standard 19-inch EIA racks with normal rack PDU spacing. Ensure your rack has at least 26 inches of usable depth (measured from the front of the rack mounting ears) to accommodate the equipment and allow for cable routing behind the unit. The rails are designed for horizontal mounting only — do not attempt vertical or inverted orientation. Heavy-duty construction supports the weight of the listed NVR models; verify that the combined load (rails + NVR + installed drives) does not exceed your rack frame's rated capacity.
