Middle Atlantic 25SP 32DEEP Plexi Door & KEN Maple TOP - BGR-25SA32MDK-E1

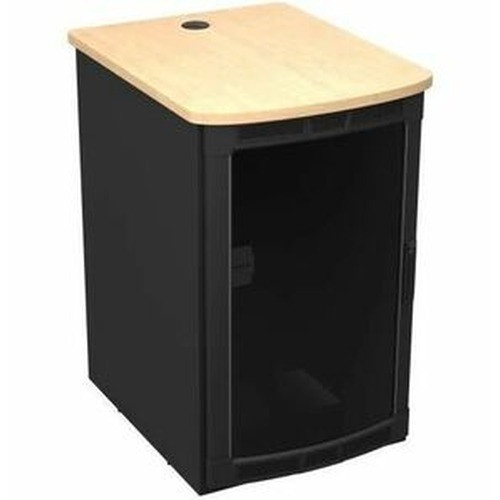

Middle Atlantic BGR-25SA32MDK-E1 25RU Mobile AV Rack with Plexi Door and Kensington Maple Top

Overview

The Middle Atlantic BGR-25SA32MDK-E1 is a 25-rack-unit mobile AV enclosure built for integrators who need a UL-rated, TAA-compliant, USA-manufactured equipment rack that can take a real beating in production, broadcast, or live-event environments. At 1,100 lbs UL-rated load capacity on a steel frame finished in black wrinkle powder coat, this is not a light-duty server shelf — it is a field-deployable equipment enclosure sized for full A/V or security control system builds. The Kensington Maple wood laminate top is a distinguishing feature: it doubles as a working surface for gear staging or monitoring without adding a separate utility table. If you are speccing BGR-25SA32MDK-E1 (often searched as BGR 25SA32MDK E1) for a tour rack, a government integrations room, or a permanent security operations build, the TAA compliance and domestic origin make federal procurement straightforward.

Key Features

• 25 RU / 43.75 in usable height: Twenty-five rack spaces gives you room to fit a full NVR stack, network switching layer, UPS, and patch panel without compromise. The 43.75 in (111.1 cm) usable interior clears standard 1U and 2U equipment without shimming or custom rails.
• 1,100 lb UL load capacity: UL-listed at 1,100 lbs (499 kg) means you can load this rack to a realistic production weight and still have documentation for AHJ sign-off. Most portable racks carry manufacturer claims with no third-party listing — this one has the UL mark.
• 29.4 in usable depth: Deep equipment — full-depth servers, broadcast recorders, and multi-port NVRs — fits without rear-door conflicts. The 29.4 in (74.7 cm) usable depth accommodates standard 24–28 in equipment with cable slack behind the units.
• Forward Rackrail configuration: The forward rackrail positioning keeps equipment weight toward the front of the enclosure, which matters for stability when the rack is in motion. Combined with the swing handles (25 mm × 150 mm), repositioning is a two-person job rather than a full crew operation.
• Front and rear doors included: Both front plexi and rear doors ship with the unit. The plexi front door lets you read indicator LEDs and check status lights without opening the enclosure — useful in live events or NOC environments where a door swing is disruptive.
• Kensington Maple wood laminate top: The maple top is a functional workspace, not just a cosmetic finish. In a broadcast or live AV deployment, it serves as a staging surface for laptops, tablets, or hand-held meters. The black wrinkle powder coat on the steel body contrasts cleanly against the maple.
• Monitor mounting support: The rack is monitor-mount capable, so you can attach a display directly to the enclosure rather than running a separate stand — reducing floor footprint in tight control rooms or mobile production environments.
• Forward compatible construction: Middle Atlantic's forward-compatible design means accessories and rack components from the broader BGR product family integrate without custom fabrication. This protects your investment as system requirements change.
• TAA compliant, USA-made: Federal Ops country of origin is USA, and the unit is TAA compliant — a hard requirement for GSA schedule purchases, government integrations, and any federally funded project with TAA sourcing obligations. No workaround needed.
• Steel construction, black wrinkle powder coat: The all-steel frame with wrinkle finish resists scratching and minor abrasion better than standard flat powder coat, which matters on a mobile rack that gets loaded and unloaded regularly.

Integration and Compatibility

The BGR-25SA32MDK-E1 accepts standard 19 in (48.3 cm) panel-width equipment — the universal rack form factor for network switches, NVRs, UPS units, patch panels, and A/V matrix switchers. The 25 RU capacity and 29.4 in usable depth are compatible with virtually all standard 1U–4U rack-mount equipment from any manufacturer. The forward rackrail design is compatible with Middle Atlantic's BGR accessory ecosystem for shelves, blanks, cable managers, and fan trays. The unit ships at 229 lbs (103.9 kg) — factor that into freight planning; a standard liftgate truck delivery is appropriate. Product weight unloaded is 204 lbs (92.5 kg), so the rack itself contributes a meaningful portion of that shipping weight. Overall footprint is 24.5 in wide × 36.35 in deep × 50 in tall — confirm door clearance and floor loading before positioning in finished spaces.

Frequently Asked Questions

Q: Is the BGR-25SA32MDK-E1 TAA compliant for federal procurement?

A: Yes. The BGR-25SA32MDK-E1 is TAA compliant and manufactured in the USA, making it eligible for GSA schedule and other federally funded projects with TAA sourcing requirements.

Q: What is the UL-rated load capacity of this rack?

A: The BGR-25SA32MDK-E1 carries a UL-listed load capacity of 1,100 lbs (499 kg). This is a third-party UL listing, not just a manufacturer claim, which supports AHJ documentation requirements.

Q: What is the usable rack depth for equipment installation?

A: The usable depth is 29.4 in (74.7 cm), which accommodates full-depth servers, NVRs, and broadcast equipment. The overall enclosure depth is 36.35 in (92.3 cm).

Q: Does the BGR-25SA32MDK-E1 include front and rear doors?

A: Yes. Both a front plexi door and a rear door are included. The plexi front allows visual status checks without opening the enclosure.

Q: What does the Kensington Maple top provide?

A: The wood laminate top in Kensington Maple finish provides a functional work surface on top of the rack, useful for staging gear, placing monitors, or working with hand-held test equipment in live or production environments.

Q: What is the standard rack unit count and interior height?

A: The BGR-25SA32MDK-E1 provides 25 RU of rack space with 43.75 in (111.1 cm) of usable interior height. Overall enclosure height is 50 in (127 cm).

Ted Perry

The BGR-25SA32MDK-E1 gets specified on federal integration projects for good reason: the TAA compliance is built in at the factory, not retrofitted, and the 1,100 lb UL load rating gives you an actual third-party data point when a project engineer asks for documentation. For a 25RU mobile enclosure, that combination is not common at this price tier.

Technical Highlights:

• 1,100 lb UL Load Capacity: Third-party UL listing at 1,100 lbs (499 kg) is the spec that closes federal and institutional bids — self-certified load ratings from competing enclosures won't satisfy strict AHJ review.
• 29.4 in Usable Depth: Full-depth equipment — think 28 in NVRs or multi-port network appliances — installs with room for a proper cable bundle behind the units. Racks that advertise 32 in depth but yield only 24 in usable are a common gotcha this unit avoids.
• Kensington Maple Wood Laminate Top: Functional, not decorative. In a live production or temporary operations center, the maple top eliminates the need for a separate utility table — that matters when floor space is constrained and setup time is measured in hours, not days.

Deployment Considerations:

• Shipping weight is 229 lbs (103.9 kg) — coordinate a liftgate delivery. The rack arrives assembled and that weight does not break down into manageable sub-packages. Have a plan for moving it from the dock to the install location before it arrives on site.
• Overall dimensions are 24.5 in W × 36.35 in D × 50 in H — measure your door clearances before delivery. The 36+ in depth catches integrators on standard 36 in door openings when the rack needs to pass through on its casters.

The BGR-25SA32MDK-E1 is the right call for government systems integrators building portable or semi-permanent security operations or A/V control racks that need TAA documentation, UL load certification, and domestic manufacture on the same purchase order line item.
