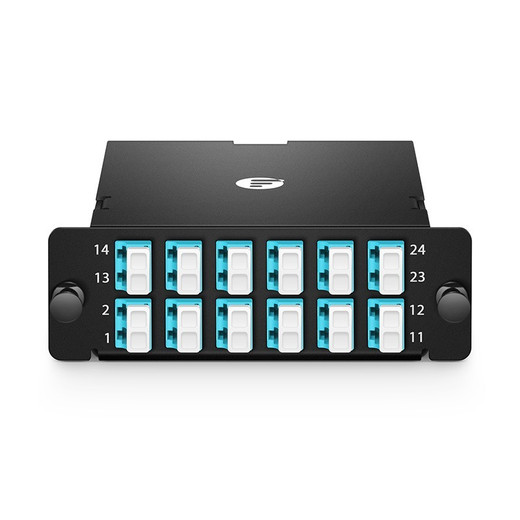

Panduit FDCSA-24-10B1RH Fiber Optic Patch Panel

Overview

The Panduit FDCSA-24-10B1RH is a 24-fiber, OM4+ patch panel designed for high-density fiber optic network infrastructure. It facilitates efficient termination and management of fiber optic cabling, specifically bridging LC connectors to dual MPO/MTP 12-fiber trunk assemblies. This unit is suitable for data center backbone, storage area networks, and high-speed enterprise interconnects where density and performance are critical. The B1 UL rating indicates compliance with specific safety standards for use in certain environments.

Compatibility

This patch panel is engineered to interface with standard LC fiber optic patch cords and MPO/MTP 12-fiber trunk cables. It is designed for use within Panduit's modular fiber optic enclosure systems, providing a standardized solution for structured cabling deployments. It supports OM4+ fiber specifications, ensuring compatibility with 40GbE, 100GbE, and higher speed network architectures requiring multi-mode fiber.

Installation Notes

Installation requires mounting within a compatible Panduit fiber optic enclosure or rack system. Ensure proper strain relief for incoming trunk cables to prevent damage. When connecting LC patch cords, verify correct polarity. The MPO/MTP connectors should be kept clean to maintain optimal signal integrity. Refer to Panduit's installation guides for specific enclosure mounting torque specifications and best practices.
