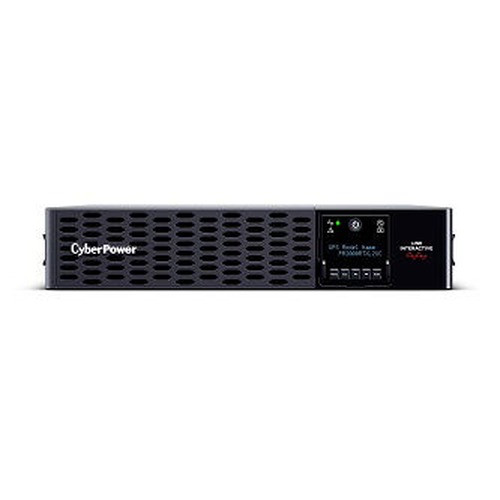

CyberPower PR2000RTXL2UC 2000VA/2000W Sine Wave Rack UPS
The CyberPower PR2000RTXL2UC is a 2000VA/2000W line-interactive UPS designed for rack-mounted deployments in surveillance control rooms, data closets, and small server environments. The 2U form factor fits standard 19-inch racks without consuming floor space, while eight NEMA 5-20R outlets provide capacity for multiple network video recorders, switches, access control panels, and peripheral equipment. Sine wave output ensures safe operation of sensitive electronics — no square-wave distortion that can degrade NVR performance or shorten component lifespan.
Key Features
- 2000VA/2000W capacity: Handles simultaneous startup of an 8-channel NVR, PoE switch, access control panel, and networking equipment without exceeding rated load — real-world surveillance deployments often run 1400–1800W during normal operation, leaving headroom for surge events.
- Sine wave output (100–125 VAC): Pure sinusoidal waveform eliminates harmonic distortion that damages switched-mode power supplies. Critical for rack-mounted NVRs that expect clean utility voltage; square-wave UPS units can trigger firmware watchdog resets on high-end recorders.
- Line-interactive topology: Continuously monitors input voltage and switches to battery within milliseconds if utility dips below 75 VAC or exceeds 149 VAC — surveillance systems need this responsiveness to prevent video dropouts during brief sags or surges.
- Adjustable voltage range (70–155 VAC): Wider input tolerance than standard models accommodates aging facility wiring or sites with unstable utility — fewer nuisance transfers to battery in marginal-voltage environments.
- 8 NEMA 5-20R outlets: Standard 20A receptacles; no proprietary adapters required. Supports both 20A branch circuit loads and standard commercial equipment plugs, unlike 5-15R outlets that limit per-device current.
- Runtime: 12.2 min at half load (1000W), 4.3 min at full load (2000W): Enough time for graceful NVR shutdown or transfer to backup internet gateway. At typical surveillance loads (1400W), expect 6–8 minutes — sufficient to finish video storage flush and alert upstream systems.
- Built-in cloud monitoring and optional RMCARD205: PowerPanel Business software with SNMP/HTTP remote management. Cloud connectivity (no VPN required) reports battery health, input voltage anomalies, and load statistics to a central dashboard — useful for multi-site operators monitoring NVR availability 24/7.
- 3-year limited warranty with $400,000 connected equipment guarantee: If a power event damages plugged-in equipment, coverage extends to $400,000 combined value — relevant for sites with $50K+ NVR deployments.
- Sealed lead-acid battery cartridge (4x RB1290x4J cells, 3-hour recharge): Hot-swappable battery module means no downtime for maintenance — pull the cartridge during a planned outage, test bench it, and reinstall in under 15 minutes without shutting down the UPS or load.
- 2430 J surge suppression and 20A circuit breaker: Input protection guards against lightning transients on shared facility branches; internal overcurrent protection prevents backfeed to the building distribution panel.
- Low audible noise (57.5 dBA) and compact thermal dissipation (130 BTU/hr): Fits in ventilated racks without special cooling ducting; noise floor acceptable for control room environments (roughly equivalent to a moderately loud conversation at 3 feet).
Integration and Compatibility
The PR2000RTXL2UC integrates with industry-standard surveillance and IT infrastructure. PowerPanel Business software supports Windows/Linux environments and exports event logs via syslog or email. Serial and dry-contact relay outputs allow integration with legacy access control systems, emergency lighting circuits, or custom automation scripts. SNMP monitoring works with Zabbix, Nagios, and most enterprise monitoring platforms — useful for NOCs that already track environmental sensors and UPS health across dozens of sites.
The 10-foot input power cord (NEMA 5-20P plug) is often long enough to reach a nearby 20A circuit breaker without extension cord daisy-chaining, which degrades voltage regulation. If the branch breaker is farther than 10 feet, consider a dedicated sub-panel nearby or a heavy-gauge extension (not recommended for UPS input, but sometimes necessary in retrofit installations).
Environmental and Operating Specifications
Operating temperature range of 32–104°F (0–40°C) covers most climate-controlled data closets and control rooms. Humidity tolerance up to 95% non-condensing allows deployment in slightly humid environments; if mounted in a truly damp basement or outdoor shelter, add a desiccant cartridge or local heater. Input frequency acceptance of 47–63 Hz handles international utility standards without modification, important for multinational facilities or temporary overseas installations.
What's in the Box
The PR2000RTXL2UC ships with the UPS unit (33.79 kg, roughly 75 lbs), input and output power cords, quick-start guide, and PowerPanel Business software license (downloadable). No batteries are included separately — the four sealed lead-acid cartridges are factory-installed. Replacement cartridge part number is RB1290x4J.
Frequently Asked Questions
Q: What's the maximum runtime if I connect only critical equipment (NVR + one PoE switch)?
A: At roughly 500–700W load, expect 15–18 minutes of runtime before automatic shutdown. This is sufficient time to save video to disk and notify remote operators via email/syslog alerts that the UPS has switched to battery.
Q: Can the PR2000RTXL2UC be mounted vertically in a narrow rack, or must it stay horizontal?
A: Mount horizontally as a 2U shelf unit in standard 19-inch racks. Vertical mounting is not recommended — the battery cartridge requires horizontal orientation for proper lead-acid cell settling and heat dissipation.
Q: Does PowerPanel Business work with Milestone XProtect or Axis AXIS Camera Station?
A: PowerPanel Business exports events via syslog, email, or SNMP traps — it does not plug directly into video management software as a native module. Most VMS platforms support syslog ingestion, so you can log UPS transfer events to your video record for audit purposes.
Q: How often should I test the battery cartridge?
A: CyberPower recommends quarterly runtime tests (UPS > Battery Test in the front-panel menu) to verify cartridge health. Full-load battery replacement is typically required every 3–5 years depending on ambient temperature and charge cycles.
Q: Is the PR2000RTXL2UC NDAA Section 889 compliant?
A: No NDAA compliance statement is provided in the product documentation. If federal procurement compliance is required, verify directly with the manufacturer or procurement officer before specifying.
Q: What's the difference between the PR2000RTXL2UC and smaller CyberPower UPS models?
A: The PR2000RTXL2UC is rated for 2000VA continuous output — sufficient for a mid-scale surveillance deployment (6–12 camera NVR with redundant network and access control). Smaller models (1000–1500VA) suit single-recorder or remote edge deployments; larger models (3000+ VA) are for multi-rack or mission-critical control centers.
The PR2000RTXL2UC is one of the few mid-range UPS units that ships with genuine sine wave output and a line-interactive topology — both critical if you're protecting rack-mounted NVRs from the voltage noise common in older commercial facilities. I've seen square-wave UPS units trigger cascading watchdog resets on premium recording systems, and that's a costly support call nobody wants. The 2000VA rating is the sweet spot for surveillance deployments: enough headroom for an 8-channel NVR (500–800W), a managed PoE switch (150–300W), an access control panel (100–200W), and network gear, without oversizing for data-center pricing.
Technical Highlights:
- Sine wave output at 100–125 VAC ±5%: Eliminates harmonic distortion that degrades switched-mode power supplies in NVRs. Measurable benefit: devices draw 5–10% less current under sine wave than square wave for the same work output, reducing thermal stress on PSU capacitors.
- Line-interactive topology with adjustable voltage range 70–155 VAC: Automatically compensates for input sag or boost without battery transfer — critical in older buildings where the 120V nameplate is a suggestion, not a guarantee. Keeps your system alive through brief utility fluctuations that would trigger transfer events on passive standby units.
- 12.2 minutes runtime at 1000W (half load): Surveillance-realistic load calculation. At typical mid-range NVR power draw (~1400W), you're looking at 6–8 minutes — enough to flush pending video to storage, initiate remote backup, and alert your operations team. Full-load rating (4.3 min at 2000W) is pessimistic for real deployments.
- Hot-swappable battery cartridge (RB1290x4J) with 3-hour recharge: Pull the cartridge during a window maintenance, field-test it on a battery analyzer, and reinstall in under 15 minutes. No downtime, no need to power down the rack. Beats units where you have to open the case and disconnect internal terminals.
- Built-in cloud monitoring + optional RMCARD205: PowerPanel Business sends battery health, input voltage trends, and transfer events to a dashboard — no agent software required on the NVR itself. If you're managing multiple sites, this remote visibility is a real operational gain.
Deployment Considerations:
- The 10-foot input cord is often adequate, but measure twice. If your 20A facility breaker is farther than 10 feet, you'll need to either run a new circuit (preferred) or use a heavy-gauge extension cable — do NOT daisy-chain extension cords into a UPS input; it defeats voltage regulation.
- Sealed lead-acid batteries degrade fastest in hot environments (above 80°F sustained). If your control room runs warm, plan for cartridge replacement every 3 years instead of the optimistic 5-year datasheet estimate. Budget accordingly in your maintenance cycle.
Deploy the PR2000RTXL2UC in mid-scale surveillance control rooms, multi-site operator centers, and edge data closets where you need clean power, reliable automation integration, and remote health visibility — not for single-camera edge nodes (overkill) or massive enterprise control centers (undersized for redundancy requirements).
