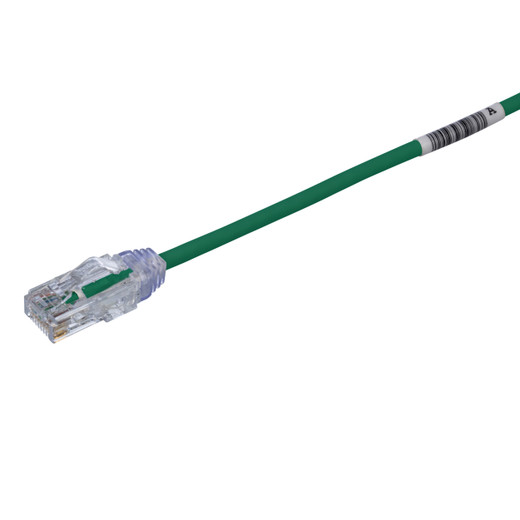

Panduit UTP28SP2.5MGR Cat 6 28 AWG UTP Patch Cord
The Panduit UTP28SP2.5MGR delivers Cat 6 performance in a compact 28 AWG form factor designed for high-density datacenter and network closet deployments. This 2.5-meter (8.2 ft) green patch cord combines a slim 3.8mm diameter with tangle-free latches and RapidID barcoding to simplify installation, reduce congestion, and accelerate port mapping in environments where every millimeter of cable management space matters.
Key Features
- 28 AWG stranded copper construction reduces diameter to 3.8mm (0.150") for improved airflow and density
- Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards across 1-250 MHz
- Supports 10GBASE-T Ethernet over limited distances, plus Gigabit and Fast Ethernet
- RapidID-enabled with pre-installed barcodes for fast port documentation and asset tracking
- Tangle-free latch design prevents snags during moves, adds, and changes
- CM/LSZH jacket meets fire and low-smoke requirements for commercial installations
- IEEE 802.3bt Type 3 and Type 4 PoE compliant (up to 90W per port)
- Compatible with T568A and T568B wiring schemes
- UL 1863 and CSA C22.2 listed, RoHS compliant
The TX6-28 platform addresses a critical challenge in modern network infrastructure: maintaining Cat 6 performance while reducing the physical bulk that chokes cabinet airflow and complicates moves. At 28 AWG, this cord is roughly 40% thinner than standard 24 AWG Cat 6 patch cables, allowing integrators to route more circuits through the same cable management hardware without exceeding bend-radius limits or blocking ventilation paths. The stranded copper conductors provide the flexibility required for tight routing in high-density switch environments, while the high-performance modular plugs maintain full 250 MHz bandwidth compliance. RapidID barcoding is factory-applied to both ends, enabling installers to scan and log each connection using Panduit's RapidID software rather than manually documenting hundreds of patch-panel and switch-port assignments—a workflow improvement that cuts commissioning time and eliminates transcription errors.
The 2.5-meter length fits typical top-of-rack to server connections, middle-of-row switch uplinks, and cross-connect runs in datacenter hot aisles where minimizing service loops is essential. The tangle-free latch uses a low-profile boot that releases cleanly without snagging on adjacent cables—an often-overlooked detail that becomes critical when an integrator needs to swap a failed link in a fully populated 48-port switch at 2 a.m. The CM/LSZH jacket meets both commercial and low-smoke-zero-halogen fire safety requirements, making this cord suitable for plenum-equivalent spaces and international deployments governed by IEC standards. PoE compliance extends to 802.3bt Type 4 (90W), so this cable supports high-power devices like PTZ cameras, wireless access points, and LED lighting controllers without voltage drop concerns over short runs.
Panduit's TX6-28 line is built to ANSI/TIA-568.2-D and ISO 11801 Class E specifications, with third-party verification under UL 1863 and CSA C22.2. The green jacket provides visual identification in color-coded network segments, and the 10-pack carton quantity aligns with typical per-rack deployment volumes. For integrators managing datacenter migrations, cabinet consolidations, or any project where cable congestion directly impacts cooling efficiency and technician access, the UTP28SP2.5MGR offers a standards-compliant path to higher port density without sacrificing bandwidth or reliability.
