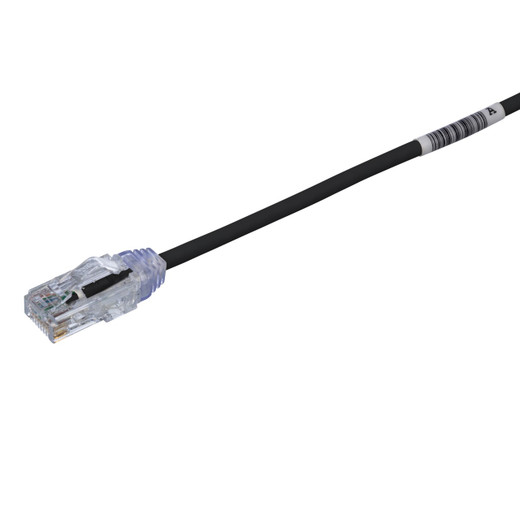

Panduit UTP28SP1MBL Cat 6 28 AWG UTP Patch Cord

The Panduit UTP28SP1MBL is a 1-meter Cat 6 UTP patch cord engineered for high-density network deployments where space and airflow are critical. Its 28 AWG stranded construction reduces cable diameter to just 0.150" (3.8mm)—substantially smaller than standard 24 AWG cords—enabling tighter bend radii and improved rack ventilation. Black LSZH/CM-rated jacket meets fire safety codes for plenum and low-smoke environments. Pre-installed RapidID barcodes support automated port mapping and documentation workflows in enterprise and datacenter installations.

Key Features

28 AWG stranded copper conductors reduce diameter by ~35% vs. 24 AWG patch cords, improving airflow in densely populated racks and cabinets

Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards across 1–250 MHz; supports 10GBASE-T Ethernet over limited distances per IEEE standards

Tangle-free modular plug latch prevents snags during installation and simplifies moves/adds/changes in confined spaces

CM/LSZH flammability rating complies with low-smoke/zero-halogen fire-safety requirements for occupied spaces and international deployments

RapidID pre-installed barcodes enable scan-to-map port identification using Panduit RapidID documentation software, eliminating manual labeling errors

Supports IEEE 802.3af/at PoE and 802.3bt Type 3/4 PoE++ applications (up to 90W delivered power) for IP cameras, wireless APs, and VoIP endpoints

The UTP28SP1MBL delivers full Category 6 channel performance—10/100/1000BASE-T and 10GBASE-T over distances specified in ANSI/TIA standards—while addressing the physical constraints of modern high-density network environments. Standard 24 AWG patch cords create cable congestion that restricts airflow, elevates rack temperatures, and complicates troubleshooting. Panduit's 28 AWG TX6-28 design cuts cross-sectional area by approximately 35%, allowing integrators to route more connections through the same cable management pathways without sacrificing electrical performance. Stranded copper conductors ensure flexibility for repeated reconnections without conductor fatigue, a critical advantage in labs, IDF closets, and environments subject to frequent reconfigurations.

The tangle-free latch design eliminates the snag-and-break failures common to legacy modular plugs when extracting cables from congested patch panels. Combined with the 1-meter length (3.3 feet), this cord is optimized for rack-to-rack and patch-panel-to-switch connections in structured cabling environments. RapidID barcoding integrates with Panduit's infrastructure management software to auto-populate port-level records, reducing documentation lag during deployment and simplifying fault isolation during network troubleshooting. For installations subject to PoE++ budgets—such as multi-radio 802.11ax access points or PTZ surveillance cameras requiring 60–90W—the cord's compliance with IEEE 802.3bt Type 3 and Type 4 standards ensures reliable power delivery without voltage drop issues common to undersized patch cords.

The CM/LSZH dual-rating provides code compliance flexibility: CM certification satisfies NEC Article 800 for commercial communications cabling in non-plenum spaces, while LSZH (Low Smoke Zero Halogen) construction meets IEC 60332 and international fire-safety standards for occupied buildings, transit systems, and marine environments where toxic-smoke generation is a life-safety concern. The UTP28SP1MBL ships in cartons of 10, supporting bulk deployments in datacenter builds, campus network upgrades, and security-system installations where IP cameras and access-control panels require verified Cat 6 connectivity with audit-trail documentation.
