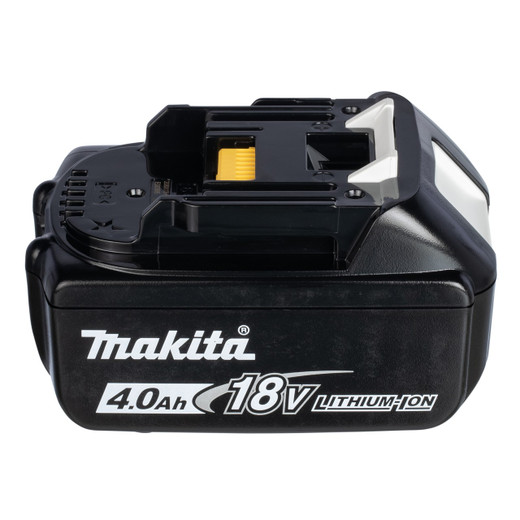

Panduit CT-LIBCMK4AH Pan-Lug Battery for Blackfin Crimping Tools
The Panduit CT-LIBCMK4AH is an 18-volt, 4.0 Ah lithium-ion battery engineered for Panduit Blackfin hydraulic crimping tools. Built on the Makita battery platform, it delivers field-proven power for high-cycle compression work on grounding lugs, battery terminals, and UPS installations where corded access isn't an option. The 4.0 Ah capacity balances runtime and weight for all-day installs in datacenter battery rooms, telco central offices, and industrial power distribution builds. North America market version with UL recognition.
Key Features
- 18 VDC lithium-ion chemistry for consistent hydraulic pump pressure across the full discharge curve
- 4.0 Ah capacity delivers approximately 200–250 crimps per charge on 1/0–4/0 AWG copper lugs, depending on material and compression ratio
- Makita LXT platform compatibility—shares chargers and batteries across 300+ Makita cordless tools if your crew already runs that ecosystem
- Engineered for Panduit Blackfin CT-1550H, CT-2000H, and CT-3000H hydraulic crimpers (verify tool compatibility in Panduit's accessory matrix)
- Slide-on rail mount with positive lock—no threaded fasteners to cross-thread or lose in the field
- Onboard fuel gauge (four-LED cluster) shows remaining capacity before you climb the ladder or enter the vault
- UL recognized component for North America installations where battery-tool assemblies must meet NFPA 70 compliance
The 72-watt-hour energy density (18V × 4.0Ah) is sized for the intermittent duty cycle of hydraulic crimping—short high-current bursts followed by cool-down as you position the next lug. Unlike pneumatic or manual ratchet tools, cordless hydraulic crimpers eliminate compressor noise and arm fatigue on jobs requiring 100+ terminations in a shift. The CT-LIBCMK4AH's lithium-ion cells maintain voltage under load better than older NiCd packs, so your crimps at 80% state-of-charge achieve the same 12,000 PSI die force as the first crimp of the day. Heat-sink venting on the battery case routes thermal load away from the cells during rapid-cycle work—critical when you're terminating 4/0 AWG feeders in a 95°F mechanical room. Makita's Star Protection Computer Controls (built into the battery, not just the charger) prevent over-discharge below 2.5V per cell, which is the leading cause of premature capacity loss in lithium packs cycled hard on job sites.
Typical deployment: UPS battery-string installations (200–400 crimps per system on ring terminals), datacenter grounding grid builds (copper busbars and ground lugs every 6 feet), solar array DC combiner work, and any scenario where you're mounting compression lugs on 1/0 AWG or larger conductors and can't drag a corded tool through a finished ceiling or into an energized MDF. The Makita platform compatibility is the differentiator here—if your team already carries Makita impact drivers, saws, or rotary hammers for low-voltage rough-in, you're carrying compatible batteries and chargers. One less proprietary charging ecosystem in the van. Swap a depleted pack off your crimper, grab the fresh one from your impact driver, and keep moving. The CT-LIBCMK4AH ships as a bare battery (no charger, no case), so you'll need a Makita DC18RC rapid charger or equivalent. Charge time from dead to full is approximately 36 minutes on a 3A Makita charger. For multi-day projects in remote central offices or solar farms, bring two batteries and a 120 VAC inverter in your truck—leap-frog charging while you work eliminates downtime.
Panduit includes this battery in the Pan-Lug accessory family specifically for the North America market, where Makita's 18V LXT platform has deep market penetration in commercial electrical and low-voltage trades. The same Blackfin tools sold in EMEA markets use different battery interfaces (often Bosch or Milwaukee platforms depending on region). If you're spec'ing a new crimping setup or replacing a worn NiCd pack on an older Blackfin tool, verify your tool's battery rail design matches the Makita LXT slide-mount before ordering—some legacy Blackfin crimpers use proprietary Panduit packs and won't accept this battery without a retrofit kit.
