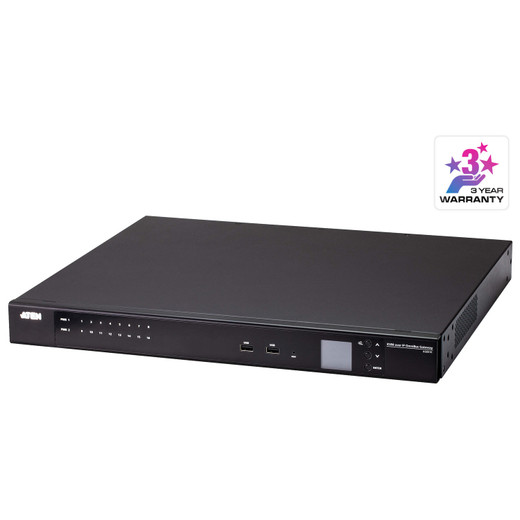

ATEN KG0016 16-Port KVM Over IP Omnibus Gateway
Overview
The KG0016 is ATEN's 16-port KVM over IP omnibus gateway designed for centralized out-of-band management of distributed infrastructure. It supports up to 16 remote sessions and 16 direct connections simultaneously, making it a fit for data centers and secure facilities where administrators need concurrent access to multiple servers or devices without being on-site. Port selection is handled entirely through a GUI rather than physical button cycling, which cuts navigation time when managing a full 16-port matrix. For broader context on KVM and IP management hardware, see the KVM switches category or the ATEN product catalog.
Compatibility
The KG0016 is part of ATEN's KG series omnibus gateway family and is designed to operate alongside ATEN KG-series KVM over IP devices. The unit includes two 3-pin relay ports reserved for future expansion — these are passive at firmware v1.0.091 and should not be wired expecting active control today. Fiber and copper SFP modules are not included and must be ordered separately from ATEN's compatible accessories list; confirm SFP module compatibility before ordering to avoid port mismatches. The front panel provides three pushbuttons (Up, Down, Enter) for local navigation, and keyboard/mouse connectivity is USB — verify your attached devices use USB HID to avoid input compatibility issues. For SFP-dependent deployments, pairing with managed network switches that match your SFP module type is essential.
Installation Notes
Input power is universal: 100–240V AC, 2.5A max, 50–60Hz — compatible with standard North American and international rack PDUs without an external transformer. The two rocker switches handle power control. Maintain ambient humidity between 10–80% RH non-condensing; avoid installations in unconditioned spaces subject to condensation. The onboard display resolves at 128×64 pixels — sufficient for status readout but not a full management interface. All substantive configuration is browser-based via the GUI. Firmware v1.0.091 (released 2025-09-02) is the current production release; verify your unit ships at this version or plan a firmware update before commissioning. For server room infrastructure deployments, rack this unit with adequate clearance for SFP module insertion on all active ports.
