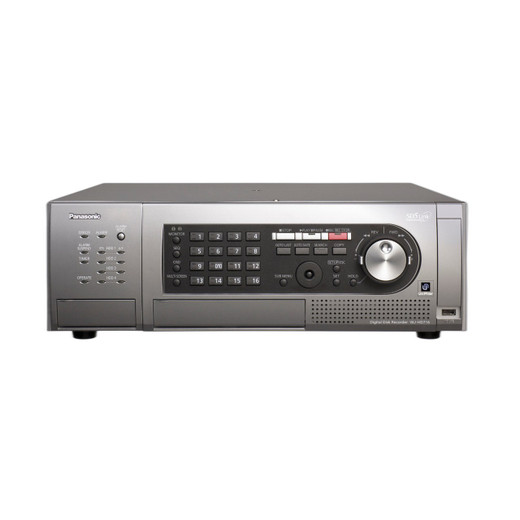

i-PRO 16 Channel Real-time H.264 DVR 3 TB - WJHD716/3000T3

We've deployed the i-PRO WJHD716/3000T3 across retail chains, small warehouses, and light manufacturing plants where analog camera infrastructure is entrenched and budget for wholesale platform migration is unavailable. The differentiator versus entry-level NVRs is simplicity: no software licensing renewal, no Windows patching cycles, no network throughput contention—just composite video in, H.264 recorded, searchable by timestamp. On a 16-camera retail store with fixed-position dome cameras covering sales floor and stockroom, this DVR outperforms smaller 4-channel units while avoiding the management overhead of a full NVR deployment. That said, there are real constraints. The 3TB capacity is fixed—you cannot add external drives for retention expansion without migrating to an NVR. Bitrate is non-adaptive across channels, so a single high-motion area (e.g., busy entrance) cannot automatically boost local frame rate without affecting the entire recording stream. And once this DVR reaches end-of-life, spare parts and firmware support can become unpredictable; i-PRO's consumer-focused product lifecycle means these units typically retire after 5–7 years. For integrators, the pitch is straightforward: spec this for analog-only or transitional hybrid sites where uptime reliability and local playback matter more than feature density. It's not a platform—it's a dependable workhorse.

Technical Highlights:

• 3TB Integrated HDD: No external enclosure required, reducing cable count and failure points. Typical retention on 16 continuous channels at D1 resolution and standard bitrate: 30–45 days. For sites recording 8–12 hours daily, retention can exceed 90 days. Verify bitrate settings against your codec profile before handoff to avoid surprise capacity exhaustion mid-project.
• H.264 Codec: Mature, widely supported compression standard. Bitrate footprint is predictable and well-documented across vendor implementations. Fallback playback compatibility with legacy VCR-era playback devices is better than H.265, a real asset on sites with air-gapped forensic workstations.
• 16-Channel Real-Time Simultaneous Recording: No frame-dropping or stream prioritization under normal load. Performance is deterministic, unlike software-based NVRs that can suffer from CPU contention during peak motion or export operations. Critical for evidentiary footage in retail or high-traffic compliance environments.
• Composite (BNC) Video Architecture: Standard analog connector set minimizes integration friction on sites with existing coax runs. Hybrid deployments (some analog, some IP) require careful channel planning—confirm that your IP-to-analog adapter cards or hybrid encoders meet i-PRO's input impedance specs.
• Local Playback with Timestamp Search: No network dependency for forensic review. In facilities with restrictive IT access policies (healthcare, finance), this operational isolation is a regulatory advantage. Export to USB or local burn without cloud upload or NVR software licensing delays.
• Passive Cooling Design: Lower acoustic footprint and reduced fan maintenance compared to high-density NVRs. Equipment-room placement is less constrained by thermal air-return requirements. Standard 0–40°C ambient range is sufficient for most commercial indoor facilities.

Deployment Considerations:

• Fixed Storage Capacity: Once the 3TB is reached, older footage is automatically overwritten—there is no external expansion mechanism. Calculate your retention window (days required for forensic review and regulatory hold) before finalizing camera count and bitrate. A 30-day requirement with 16 channels may require bitrate reduction or motion-triggered recording policies.
• Non-Expandable Channel Count: This is a 16-channel fixed appliance. If your site grows beyond 16 cameras, migration to an NVR or multi-unit DVR clustering is required. Plan your initial camera inventory and future growth ceiling before purchase.
• Hybrid Deployment Complexity: If integrating analog cameras alongside new IP cameras, verify that i-PRO's hybrid input modules (if available in your region) are compatible with the WJHD716 chassis. Some analog-to-IP encoder cards require firmware version alignment. Test integration on a single channel before deploying across all analog branches.
• Coaxial Cable Run Distances: Standard composite video over BNC is rated to ~300 feet (90m) before signal degradation becomes forensically problematic. For camera distances beyond 200 feet, budget for signal-boosting splitters or dedicated coax conditioning. Long-distance analog video is a legitimate pain point—one reason many sites migrate to IP.
• Power Supply Redundancy: The supplied PSU is not redundant. For mission-critical facilities (banks, hospitals), integrate the DVR into a UPS circuit and plan for single-PSU failure in your SLA. Replacement PSUs for legacy DVRs can be scarce and costly; validate spare availability with your distributor before final specification.
• End-of-Life and Support Lifecycle: i-PRO consumer/small-business DVR products typically receive firmware updates and support for 5–7 years post-release. Check the hardware manufacturing date before purchase. Units manufactured 3+ years ago may be in sustaining mode with limited new feature releases. For critical installations, budget for planned hardware refresh within your retention and compliance window.

The WJHD716/3000T3 is the right spec for integrators managing analog-heavy installed bases in retail, light warehouse, or small office environments where simplicity and local autonomy trump feature breadth. It's not a growth platform, but it's dependable and operationally transparent. For sites planning a transition to IP-centric architecture, this DVR can bridge 2–3 years of mixed deployment while you retire older analog camera infrastructure. Explore the full i-PRO catalog for hybrid and IP-native alternatives as your site architecture evolves.
