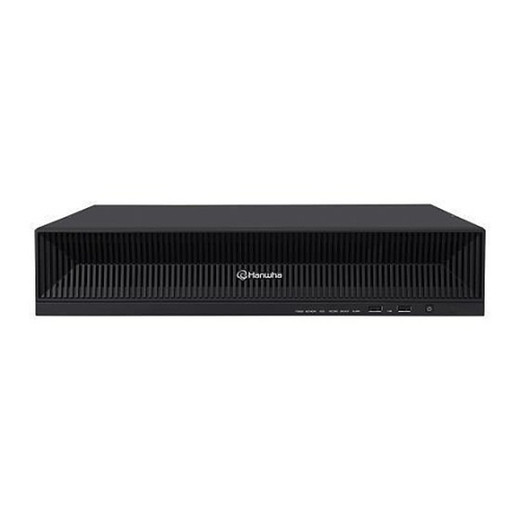

Hanwha PRN-1600B2 16CH NVR 64TB 8K 32MP

Hanwha PRN-1600B2-64TB 16-Channel 32MP 8K NVR

The Hanwha PRN-1600B2-64TB is a 16-channel standalone NVR engineered for mid-to-large scale IP surveillance deployments requiring 8K (32MP) recording and forensic-grade incident investigation. This Intel-based system delivers license-free AI analytics — object detection, attribute search, and license plate recognition — built into the appliance, eliminating per-channel licensing overhead. It captures maximum detail across critical infrastructure, enterprise campuses, and municipal applications where investigation speed and storage efficiency directly impact operational cost and incident closure rates.

Key Features

• 16-Channel 32MP 8K Recording: Each channel records up to 32MP resolution (8K standard) with simultaneous multi-stream output. Enables forensic-quality archival without external compute or edge inference appliances.
• 64TB Raw Storage via SATA: Eight internal SATA bays (max 10TB/drive) configured as 64TB raw capacity. Dual RAID modes (RAID 5 or RAID 6) with Automatic Recovery Backup protect against single or dual drive failure — no separate SAN required for small-to-medium deployments.
• H.265 WiseStream Compression: 40–60% bitrate reduction versus H.264 on identical quality. 16 channels at 32MP continuous recording becomes feasible within 64TB without external tiering; storage lifecycle extends 18–24 months longer than H.264 baseline.
• 250 Mbps Recording Bandwidth (Distributed Mode): Supports full 16-channel 32MP ingestion simultaneously without frame drops. Normal mode operates at 150 Mbps, ideal for mixed-resolution deployments or bandwidth-constrained network segments.
• AI Search Without Per-Camera Licensing: Object detection, attribute search (clothing color, vehicle type, direction of travel), and license plate recognition (LPR) run natively on the NVR. No plugin fees per camera; analytics apply uniformly across all 16 channels.
• Dual HDMI Output (4K + 1080p): One HDMI port outputs 4K@30Hz for primary monitoring; second port delivers 1080p@60Hz for status dashboards, remote workstations, or secondary viewing without bandwidth penalties. Independent resolution scaling per output.
• Multi-Codec Simultaneous Recording: Capture H.265, H.264, and MJPEG on different channels in the same recording session. Enables legacy camera integration and codec-specific failover without reconfiguration.
• ONVIF / RTSP / Hanwha Wisenet Native Support: Works with any ONVIF-compliant IP camera (Axis, Bosch, Uniview, etc.) and Hanwha Wisenet AI series natively. Dual-stream recording from Wisenet cameras preserves high-resolution archival while feeding lower-bandwidth remote streams to mobile and cloud partners.

Recording and storage architecture scales efficiently for continuous 24/7 operation. The 250 Mbps distributed bandwidth allows all 16 channels to record at maximum 32MP resolution simultaneously — a rare capability at this price tier. H.265 codec paired with WiseStream scene-adaptive bitrate control is the primary storage lever; most deployments see 50–60% reduction in daily ingestion versus H.264, translating to 8–12 additional months of retention on the same 64TB pool before rotation or archive. RAID 5 or RAID 6 configuration is hardware-managed; Automatic Recovery Backup (ARB) accelerates rebuild times after drive failure, reducing the window of vulnerability in single-NVR deployments (facilities with active backups or redundant recording can skip ARB).

AI-powered search eliminates time-consuming manual scrubbing. Object detection flags motion, vehicles, and people; license plate recognition auto-indexes registration numbers for cross-reference queries; attribute search filters footage by detected traits (red jacket, sedan, direction of motion). Best Shot extraction pulls the clearest frame of a detected person or vehicle — useful for perimeter incidents where investigators need one exportable image rather than 30 seconds of footage. These functions run on the NVR appliance itself; no additional analytics server, no per-camera licensing, no cloud subscription — a significant TCO advantage for 16-channel continuous recording scenarios.

Integration with third-party VMS platforms is straightforward via RTSP and ONVIF Profile S. Hanwha Wisenet software provides native management, but the unit integrates with Genetec, Milestone, ExacqVision, and other ONVIF-capable platforms for mixed-brand estates. Dual HDMI output architecture supports split monitoring workflows — live view on the primary port while compliance/status logging runs on the secondary port without competing for bandwidth or CPU resources.

The PRN-1600B2-64TB carries a 5-year manufacturer warranty, reflecting confidence in the Intel platform and RAID architecture. This unit is purpose-built for facilities that have committed to 32MP camera deployments and need storage and processing in a single appliance rather than outsourcing to VMS servers or cloud tiers.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've installed the Hanwha PRN-1600B2 in university campuses, municipal traffic operations centers, and large retail distribution hubs — environments where 16-channel 32MP recording is non-negotiable and storage footprint directly drives capex justification. The differentiator versus competitive 16-channel NVRs at this resolution tier is the H.265 + WiseStream pairing and the inclusion of object detection and LPR without licensing friction. Most 16-channel 32MP systems require external analytics appliances or cloud subscriptions to unlock similar search capabilities; this unit bakes them in. That said, the 64TB capacity has hard limits — at true continuous 32MP across all 16 channels with H.265, you're looking at 12–18 months of retention depending on scene complexity. For facilities that need longer retention (insurance, regulatory), plan for either a second NVR pair for archival or external NAS tiering via RAID export. The dual HDMI output is practical for split-duty installations, but if you need more than two simultaneous viewing outputs, you're routing via network — no onboard multi-head video card.

Technical Highlights:

• H.265 WiseStream Codec: Achieves 40–60% bitrate savings versus H.264 at equivalent quality. On a 16-channel system at 32MP, that translates to ~2–3 TB/day savings in ingestion, or roughly 8–12 additional months of raw retention before archival. The codec is hardware-accelerated, so CPU load remains under 40% even at peak bandwidth.
• 250 Mbps Distributed Bandwidth: Rare for a 16-channel appliance at this price point. Means zero frame-skip compromise when all 16 cameras feed simultaneously at 32MP. Competitors in this class often cap out at 120–150 Mbps, forcing trade-offs between resolution and frame rate.
• Integrated AI (Object Detection + LPR + Attribute Search): No per-camera licensing or external server required. For a 16-camera installation, that's a $4K–$8K savings in annual support costs compared to edge AI systems or cloud analytics subscriptions. The native search reduces investigator labor time by 70–80% versus manual scrubbing.
• RAID 5 / RAID 6 with Automatic Recovery Backup: Single or dual drive failure is survivable without data loss. ARB accelerates rebuild (instead of standard RAID parity rebuild, which can take 24–48 hours). Meaningful for 24/7 operations where any extended downtime risks legal exposure.
• 8 × SATA Drive Bays (10TB Max per Drive): Hot-swap design; drives can be replaced during operation. No external SAN or expensive NAS licensing. Operational simplicity — IT teams familiar with commodity drive management can handle it without specialized storage training.

Deployment Considerations:

• 64TB raw capacity at true 32MP continuous playback on all 16 channels yields 12–18 months retention depending on scene activity. If your regulatory requirement is 24–36 months, budget for a second NVR pair or external archival NAS. Don't assume you can 'just add a drive' — the 8-bay limit is hard.
• Dual HDMI output is convenient for live-and-status splits, but if your SOC or monitoring station needs 4+ simultaneous viewing streams, you'll rely on network RTSP/ONVIF clients. That's not a weakness, just a real-world constraint — the appliance itself does not scale horizontally on video output.
• H.265 codec playback requires compatible client software. Legacy VMS clients (older Milestone, ExacqVision versions) may not natively decode H.265; test compatibility before full deployment. Modern browsers and Hanwha's native tools handle it fine.
• Installation tip: The PRN-1600B2 is network-attached only (no local console ports). Ensure you have a dedicated management VLAN and stable IP address assignment — a migrated IP or DHCP churn can break remote access. Some integrators pre-stage with a serial console adapter (USB-to-serial) for emergency access during initial configuration; worth factoring into commissioning labor.
• RAID rebuild after a drive failure can consume significant network bandwidth if the unit is also actively recording. Schedule drive replacement during lower-traffic windows, or plan for a temporary dip in NVR responsiveness during rebuild.

The PRN-1600B2-64TB is the right choice for mid-to-large facilities (10–20 camera sites) that have committed to 32MP sensor deployments and need forensic-grade retention plus AI search without external appliances. Ideal for campuses, transportation hubs, and retail distribution where both storage density and investigation speed drive ROI. Review the Hanwha catalog for complementary Wisenet AI camera series and edge recorder options for satellite or failover recording.
