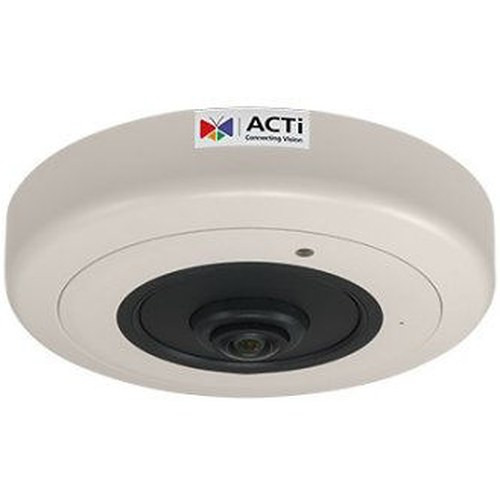

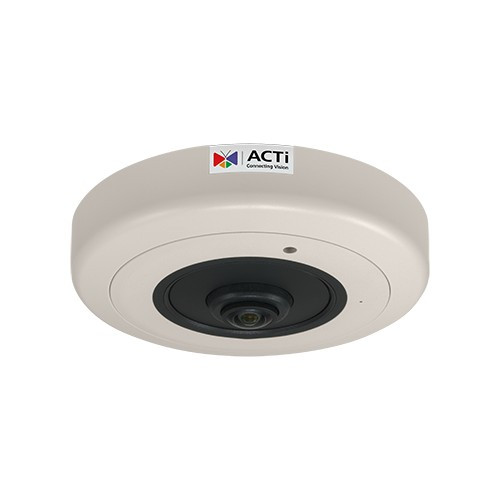

ACTi B511A 12MP Video Analytics Indoor Hemispheric Dome

In our experience, hemispheric domes have a narrow but valuable role in surveillance deployments. The B511A is not a replacement for fixed turrets or PTZs on perimeter or long-range scenes—it's a tool for interior panoramic coverage where you want single-camera simplicity and built-in edge processing. We've installed the B511A in retail environments (supermarkets, apparel stores, fast-casual restaurants), office open-plan layouts, and warehouse receiving areas where the 198.5° coverage eliminates the "six-camera grid" deployment model. The differentiator is the people-counting and VMD analytics baked into the device. On a retail floor, you're not outsourcing motion detection or occupancy queries to the NVR; the camera itself emits those events in real time. Pair it with a simple event-driven recording policy (record on motion, discard motion-free footage), and your storage footprint drops 50–70% versus 24/7 continuous recording across six conventional cameras. The tradeoff: fisheye distortion is inherent; if you need to zoom into faces or license plates, this is not the camera. The 12MP resolution and 4072×3046 native pixel count help, but digital zoom from hemispheric video is forensically weak compared to a dedicated box camera with optical zoom. Choose the B511A when panoramic occupancy and event awareness matter more than detail zoom.

Technical Highlights:

• 1/1.7" CMOS Sensor, 4072×3046 Pixels: Delivers 12MP output from a compact hemispheric package. At native resolution, 18 fps is the limit; sub-resolution streams (1920×1080) hit 30 fps. In retail deployments, 18 fps @ 4000×3000 is adequate for occupancy and gross motion tracking; you won't use full resolution for 24/7 recording—it's 40+ Mbps H.264 per stream. Implement tiered recording: full 12MP on motion events, 1080p baseline for continuous archive.
• People Counting & VMD On-Device: These analytics execute on the camera's processor, not on the NVR or external analytics server. You get real-time occupancy data and motion alerts with zero VMS plugin licensing or CPU overhead. In a 20-camera retail network, that's meaningful—each camera shoulders its own analytics burden, and the NVR is strictly a recorder and search engine.
• H.264 Multi-Profile + MJPEG Fallback: Baseline, Main, and High profiles allow tuning for bitrate vs. quality. PoE+ Class 3 (~13W) is tight; H.264 High profile at 12MP will push 40+ Mbps. Use Baseline or Main for 24/7 recording; reserve High for event recordings. MJPEG fallback is a lifeline on older VMS or if H.264 licensing is restricted.
• WDR 130dB Dynamic Range: Indoor retail lighting is notoriously mixed—sunlit storefronts, fluorescent aisles, spot accents. 130dB WDR (roughly 14 stops of dynamic range) is adequate for most interior scenarios without severe ghosting. Not equivalent to outdoor WDR (which must handle direct sunlight), but sufficient for climate-controlled spaces.
• PoE+ Class 3, 802.3at: Standard enterprise PoE+ switch delivers power; no injector or separate DC supply required for basic operation. 13W draw leaves headroom on most campus switch uplinks. If you're running auxiliary heater or cooler (for extreme indoor climates), upgrade to DC 12V optional supply.
• ONVIF Profile S + Future Multi-Profile Upgrade: Ship with Profile S; future firmware adds G, T, Q, M. Profile T adds H.265 and advanced metadata—useful for future-proofing, but not critical on day-one integration. Profile M is analytics-focused; ensure your NVR supports Profile M event subscriptions if you're leveraging on-camera people counting in a workflow.

Deployment Considerations:

• Fisheye Distortion & Zoom Limits: The 198.5° panoramic view introduces barrel distortion—straight lines curve, and faces near the periphery appear warped. If your security brief includes facial recognition or license-plate detail capture, this is not the camera. Hemispheric domes are for occupancy, heatmapping, and gross motion alerts, not forensic identification. Know that upfront.
• Interior-Only Installation: −10°C to 50°C operating range and lack of weatherproofing means no outdoor, semi-outdoor, or unheated storage mounting. Mounting accessories (wall, pole, pendant, corner, rack) assume clean, climate-controlled environments. If your facility includes covered loading docks or semi-sheltered entry vestibules with temperature swings, test thermal cycling before deployment.
• Full-Resolution Recording is Expensive: 4072×3046 @ 18 fps in H.264 Main Profile requires ~30–35 Mbps. Over 24/7 for 30 days, that's roughly 7.8 TB per camera. Most retail deployments cut this by recording full resolution only on motion events, then falling back to 1080p baseline. Implement a tiered retention policy: 30 days 1080p baseline, 7 days 12MP events.
• NVR Sub-Stream Support Critical: Ensure your NVR supports multi-stream recording from the B511A (e.g., main stream at 4000×3000, sub-stream at 1920×1080). Some older or entry-level NVRs do not; if so, you're locked into a single stream and forced to choose between full resolution or frame rate. Verify ONVIF multi-stream support before finalizing the VMS.
• Audio Input Requires Cabling: The B511A has mic-in, line-in, and line-out connectors; the built-in microphone adds ambient sound without extra hardware. If you want high-quality audio (e.g., two-way intercom), route balanced line-in audio through dedicated conduit or leverage existing intercom infrastructure. Don't expect the on-camera mic to capture speech clarity in noisy retail floors.
• GPS Tagging for Multi-Site Deployments: Manual GPS position setting is useful if you're running the camera in a location-aware VMS (Genetec integrates GPS coords into search/export); however, it's not auto-provisioned. Ensure your VMS supports GPS metadata in ONVIF events before relying on location-based workflows.

The B511A is the right choice for retail operations, office open-plan spaces, and warehouse receiving areas where single-camera panoramic coverage with built-in people counting and motion detection reduces both capex (fewer cameras) and operational overhead (no external analytics licensing). For perimeter security, high-detail forensic capture, or outdoor mounting, look to fixed turret or PTZ alternatives. Explore the ACTi catalog for complementary hemispheric and conventional form factors.
