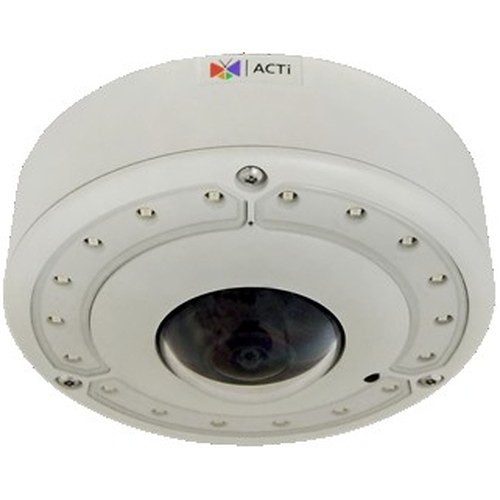

ACTi 360-12MP Hemispheric Dome Camera
Overview
The 360-12MP is a 12MP outdoor hemispheric dome designed for panoramic surveillance installations requiring near-total field coverage in a single, compact form factor. The camera captures 180° to 360° views with dewarped streaming and digital tracking, making it suited for large open areas—parking structures, shipping yards, retail floors, entrance lobbies—where traditional multi-camera arrays would otherwise be necessary. The 12MP sensor (4072×3046 progressive-scan CMOS) delivers fine detail: 2250 TV lines horizontal resolution ensures legible faces and license plates across the panoramic view when resolution is adequate for the distance.
Key Technical Specifications
Imaging and Low-Light Performance: Extreme WDR processing handles mixed lighting without halo artifacts—critical for outdoor installations with direct sun and shadow zones. Mechanical IR cut filter supports automatic day/night switching. Superior low-light sensitivity: 0.003 lux in color at F2.8; 0 lux with IR on (B/W mode). Eighteen adaptive 850nm IR LEDs provide 20m working distance, eliminating auxiliary lighting for night operations.
Video Encoding and Streaming: H.264 (Baseline/Main/High) and MJPEG compression. Maximum framerate depends on resolution: 18 fps at 4000×3000, 30 fps at 2048×2048, 10 fps at 4096×2160 (4K Ultra HD). This resolution-fps tradeoff is essential for bandwidth planning—full 12MP at 30 fps is not supported; your VMS or encoder must select a mode matching both coverage needs and storage budget.
Environmental Durability: IP68 (dust and full immersion), IK10 (maximum impact resistance), operating temperature −40°C to +50°C. Certified CE Class B, FCC Class B, EAC, CB, NEMA 4X, UL 60950-1. These ratings confirm performance in extreme climates and vandal-prone environments without degradation.
Power and Connectivity: PoE+ (IEEE 802.3at Class 3) simplifies installation to a single RJ-45 run. Alternatively, 12V DC supply is available for legacy systems. Single RJ-45 connector reduces infrastructure footprint. ONVIF Profile S, G, T, Q compliance ensures VMS agnostic integration.
Audio and Analytics: Two-way audio (built-in mic, mic-in, line-in, line-out) for two-way voice. Native VMD (video motion detection) and People Counting analytics. Manual GPS positioning support for geotag workflows.
Mounting Flexibility: Board-mount lens accommodates wall, pole, pendant, corner, and rack installations. Included accessories support diverse deployment scenarios. Weight: 936g (2.064 lb) permits lightweight structural mounting.
Compatibility
The 360-12MP integrates with any ONVIF-compliant VMS (Milestone, Genetec, AxxonSoft, others) via Profile S, G, T, Q support. Pairs with ACTi I95, I96, I97, I98, and I915 speed domes for Overview, Zoom and Tracking (OZT) multi-camera coordination. No proprietary NVR required. PoE+ switches with sufficient power budget (Class 3 = 30W maximum per IEEE 802.3at) are compatible; confirm your switch supplies this class.
What's in the Box
- 1x ACTi 360-12MP hemispheric dome camera
- 1x 2m RJ-45 cable
- Mounting accessories (wall, pole, pendant, corner, rack adapters per selection)
