Middle Atlantic 12 Space 24IN. Deep Swing Frame Rack SFR Series - SFR-12-24

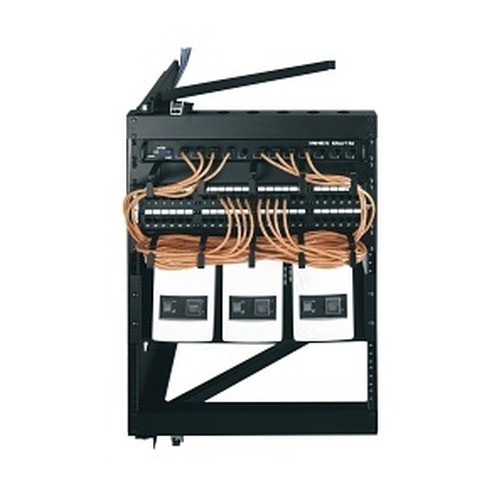

Middle Atlantic SFR-12-24 12U Swing Frame Wall Rack

Overview

The Middle Atlantic SFR-12-24 is a 12U open-back swing frame rack designed for wall-mount installations where front and rear access to equipment is required without pulling gear from a cabinet. With a 24-inch overall depth and 18 inches of usable depth, it accommodates most 1U–4U rack-mount devices — patch panels, managed switches, small NVRs, and AV equipment — in telecom closets, server alcoves, or AV headend rooms where floor space is unavailable. The swing-frame design lets the entire rack pivot away from the wall, giving rear-cable access without disconnecting anything. Construction is 14-gauge steel with 10-32 tapped rails, the standard thread found on virtually all rack-mount security and IT equipment, so compatibility with third-party rail nuts or cage nuts is a non-issue.

Compatibility

The 10-32 tapped rail pattern is the North American standard for 19-inch rack equipment, making the SFR-12-24 compatible with rack-mount hardware from Middle Atlantic's own rack accessories — shelves, blanks, cable management panels — as well as rack-mount network video recorders, PoE managed switches, UPS units, and patch panels from any manufacturer conforming to EIA-310 rack standards. The 18-inch usable depth comfortably fits 1U shelf-mount devices, compact NVRs (typically 14–17 inches deep), and rackmount network switches up to full 1U depth. Equipment exceeding 18 inches of depth or 100 lbs total load cannot be supported — verify both figures before specifying. This rack does not include a door, so it is appropriate for secured rooms or installations where a lockable enclosure is not required. For enclosed or locking configurations, consider Middle Atlantic's wall cabinet series within the rack mount enclosures category.

Installation Notes

Wall mounting requires locating studs or using appropriate hollow-wall anchors rated for the combined weight of the rack plus equipment load — the 100 lb capacity applies to the rack's rail structure, not the wall fasteners. The open-back, no-door design means all cable management must be planned before mounting; rear access via the swing-frame pivot requires adequate wall clearance (minimum clearance equals the rack's depth plus swing radius). Country of origin is United States. Consult the wall mount rack accessories category for compatible blanking panels and cable management options.
