Middle Atlantic 20 Space Swing Frame Rack 18IN. Deep SFR Series - SFR-20-18

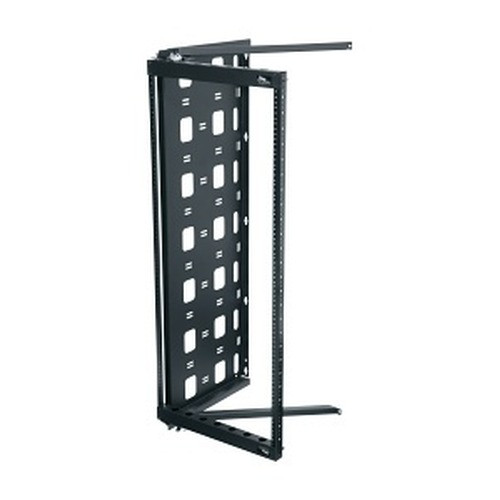

Middle Atlantic SFR-20-18 20U Swing Frame Wall Mount Rack

Overview

The Middle Atlantic SFR-20-18 is a 20-rack-unit swing frame wall mount rack built for equipment rooms where floor space is a constraint. The swing-out frame design lets you access the rear of installed gear without removing anything from the rack — a practical requirement when wiring or servicing patch panels, switches, and AV or security equipment mounted against a wall. At 18.2 in. deep with 16 in. of usable depth, the SFR-20-18 accommodates standard 1U and 2U rack-mount equipment without overcrowding the bay. The 14-gauge steel frame handles up to 100 lb of installed gear, making it appropriate for moderate-density deployments: a network switch, a small NVR, a few patch panels, and associated cabling infrastructure. RoHS compliant. Weighs 42 lb unloaded — factor that into your wall-backing and anchor selection before install. For integrators sizing a wall mount rack for a wiring closet or secondary IDF, this unit lands squarely in the mid-size swing-frame category. See the full Middle Atlantic rack and enclosure line for companion units, accessories, and larger frame options.

Compatibility

Accepts any standard 19-inch rack-mount equipment. The 16 in. usable depth suits 1U managed switches (most 1U switches run 10–16 in. deep), 1U/2U NVRs from manufacturers such as Hanwha, Hikvision, and i-PRO, 1U patch panels, and shallow UPS units. Does not accommodate full-depth server chassis (typically 26–30 in.) — confirm equipment depth before specifying. Pairs naturally with network video recorders and PoE switches in compact surveillance or access control head-end builds. Compatible with standard 10-32 or 12-24 rack screws and cage nuts (not included — verify hardware with your Middle Atlantic accessories order).

Installation Notes

Wall mount only — not a freestanding unit. The swing frame requires solid structural backing: mount to wall studs or use a properly rated backing plate rated for the combined rack-plus-equipment load. At 42 lb unloaded with up to 100 lb of gear, total wall load can reach 142 lb; consult local building codes and a structural reference before anchoring. Verify wall clearance for the swing arc before positioning — the frame needs unobstructed lateral clearance equal to the rack depth (18.2 in.) to open fully. For rack accessories such as vertical cable managers or blanking panels, specify Middle Atlantic SFR-series compatible accessories to ensure fit within the frame dimensions (41.22 in. H × 19.6 in. W × 18.2 in. D).
