Altronix 12/24VDC@4A 8FUSE FAI 220V - EFLOW4NX8V

Altronix EFLOW4NX8V 12/24VDC@4A 8FUSE FAI 220V

Overview

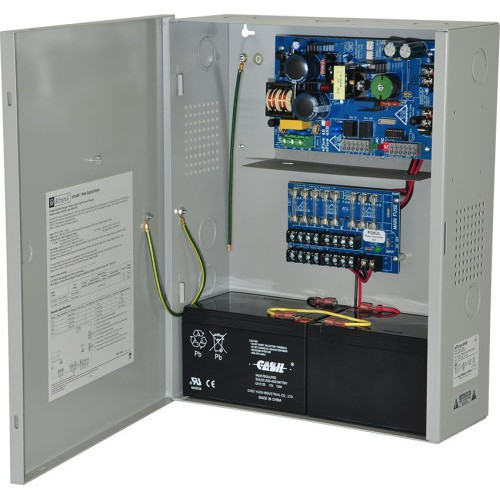

The Altronix EFLOW4NX8V is a versatile power distribution unit designed to provide regulated 12VDC or 24VDC output at a total of 4A, distributed across eight fused outputs. This unit is ideal for powering multiple IP cameras, access control readers, or other low-voltage security devices from a single, centralized power source. Its compact form factor and fused outputs simplify installation and protect connected equipment from overcurrent conditions. The EFLOW4NX8V is designed for integration into standard 220VAC power systems.

Compatibility

This power distribution module is compatible with a wide range of low-voltage security and surveillance devices requiring 12VDC or 24VDC power. It is suitable for use with most IP cameras, video encoders, access control systems, intercoms, and sensors that operate within its total 4A output capacity. Each of the eight outputs can be individually fused, allowing for tailored protection for different device types or circuits.

Installation Notes

The EFLOW4NX8V requires a 220VAC input. Each of the eight outputs is individually fused, with standard 5A fuses included. Users can replace these fuses with values appropriate for the connected load, up to the maximum total output of 4A. Ensure the total current draw of all connected devices does not exceed the unit's 4A capacity to prevent nuisance tripping or damage. Wiring should adhere to local electrical codes and best practices for low-voltage power distribution.

What's in the Box

• 1x Altronix EFLOW4NX8V Power Distribution Module
• 8x 5A Fuses (pre-installed)
