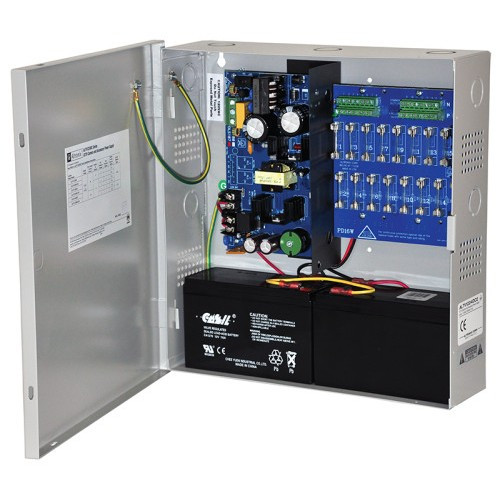

Altronix 12/24VDC 4A 8 PTC P/S 220V - ALTV1224DCCB220

Altronix ALTV1224DCCB220 Concise Descriptor

Overview

The Altronix ALTV1224DCCB220 is a versatile power distribution unit designed to provide selectable 12VDC or 24VDC output for surveillance systems. It features eight individually PTC (Positive Temperature Coefficient) protected outputs, each capable of delivering up to 2.5A, with a total system output of 4A. This unit is ideal for powering multiple cameras, access control readers, or other low-voltage devices from a single, regulated power source, simplifying installation and management in environments requiring distributed power. The 220VAC input makes it suitable for international deployments.

Compatibility

This power supply is designed to power a wide range of low-voltage DC devices commonly found in security and surveillance installations. It is compatible with 12VDC or 24VDC cameras, IP cameras requiring PoE injectors or midspan devices (when used in conjunction with appropriate injectors), access control panels, intercom systems, and other security peripherals that operate within its voltage and current specifications. It is not designed for direct connection to AC-powered devices.

Installation Notes

Input voltage is 220VAC. Output voltage is selectable between 12VDC and 24VDC via a jumper. Each of the eight outputs is protected by a PTC thermal breaker, rated for 2.5A maximum per output. Total system current draw must not exceed 4A. Ensure proper ventilation around the unit to prevent overheating, as it is a power supply unit that generates heat during operation. Wiring should adhere to local electrical codes and best practices for low-voltage DC distribution.

What's in the Box

• 1x Altronix ALTV1224DCCB220 Power Supply
• 1x Mounting Template
• 1x Installation Manual
