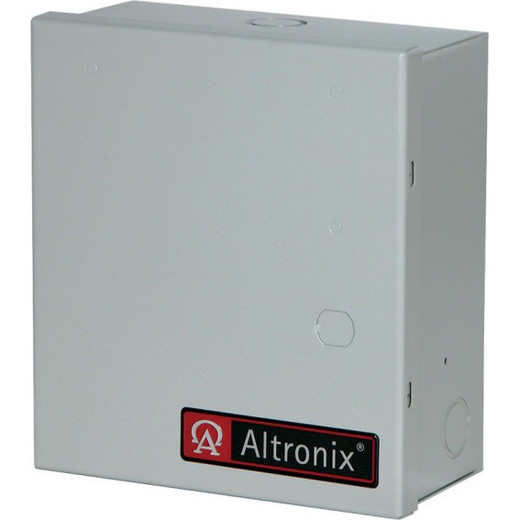

Altronix 24VAC/4A/4 PTC CCTV P/S 220V - ALTV244CB220

Altronix ALTV244CB220 24VAC/4A CCTV P/S 220V

Overview

The Altronix ALTV244CB220 is a 24VAC, 4A power supply designed to provide reliable power for multiple CCTV cameras and surveillance devices. It accepts a 220VAC input and distributes power through four individually fused, PTC-protected outputs. This unit is ideal for installations requiring a centralized, stable power source for a small to medium camera deployment, ensuring each device receives clean, regulated power without interference.

Compatibility

This power supply is designed for use with any 24VAC powered CCTV camera, IP camera, or other surveillance equipment requiring up to 4A total current draw. It is compatible with devices from brands such as Axis, Hanwha, Hikvision, Dahua, and others that operate on 24VAC. The four PTC (Power-Limiting Circuit Breaker) protected outputs ensure that a fault on one device does not affect others connected to the same power supply. It is suitable for powering cameras with integrated IR illuminators or heaters that draw significant current.

Installation Notes

Input voltage is 220VAC. Each of the four outputs provides 24VAC and is protected by a resettable PTC fuse, rated at 2.5A maximum per output. Total output current is 4A maximum. Ensure the total current draw of all connected devices does not exceed 4A to prevent PTC tripping. The unit requires a standard 220VAC power connection. Mounting hardware is not included; standard wall mounting screws appropriate for the unit's weight and location should be used.

What's in the Box

• 1x Altronix ALTV244CB220 Power Supply
• 1x Installation Manual
