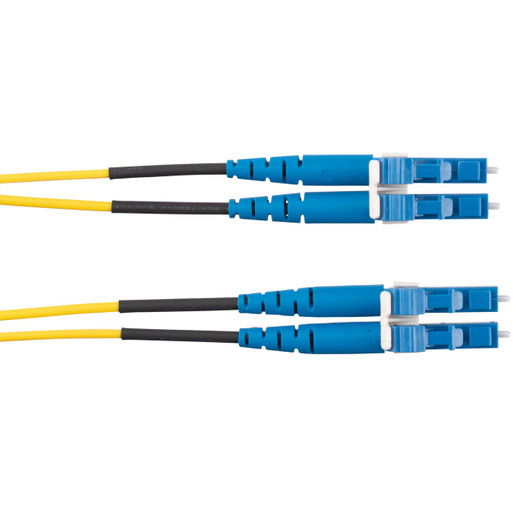

Panduit F92ERLNLNSNM010 10m OS2 LC Duplex Fiber Cord

Panduit F92ERLNLNSNM010 OS2 Single-Mode LC Duplex Fiber Patch Cord

The Panduit F92ERLNLNSNM010 is a 10-meter OS2 single-mode fiber patch cord with LC duplex connectors on both ends, engineered for low-loss interconnection in data centers, telecom rooms, and enterprise backbone links. Part of the Opti-Core™ family, this yellow-jacketed jumper features 9/125µm glass optimized for long-haul transmission and high-bandwidth applications where modal dispersion must be eliminated. The 1.6mm cable diameter enables high-density patching in congested panels while maintaining OFNR riser fire rating for vertical cable runs between floors.

Key Features

• OS2 single-mode fiber (9/125µm) rated for up to 10 Gbps at 10 km and 100 Gbps at 40 km transmission distances
• LC duplex connectors factory-terminated with ceramic ferrules and tested for <0.3 dB insertion loss per TIA-568-C.3
• OFNR (riser) flammability rating meets NEC Article 770 requirements for vertical building risers and plenum-to-riser transitions
• 1.6mm slim-profile jacket supports up to 40% greater port density vs. 2.0mm cables in LC panel applications
• Yellow outer jacket provides instant visual identification of single-mode links in mixed MM/SM environments
• 10-meter length suits inter-rack connections in row-based datacenter architectures and MDA-to-HDA links in structured cabling
• RoHS compliant; exceeds ISO/IEC 11801, TIA-568-C.3, and FOCIS-3/10 connector interface standards

Single-mode fiber is the mandated medium for any link where multimode's 300-550m distance ceiling is inadequate — campus backbones between buildings, data center core-to-distribution uplinks, or future-proofing 40/100G Ethernet ports that may later extend beyond 150 meters. The F92ERLNLNSNM010's OS2 glass exhibits <0.4 dB/km attenuation at 1310 nm and <0.3 dB/km at 1550 nm, meaning the 10-meter jumper itself contributes effectively zero loss to a link budget; your loss is dominated by connector interfaces and any intermediate splice points. Panduit factory-terminates each LC connector with a ceramic zirconia ferrule polished to an 8° angle (physical contact), tested on interferometric inspection equipment to guarantee <0.3 dB insertion loss and >45 dB return loss per mated pair. The duplex clip holds both transmit and receive fibers in a single latching body, preventing polarity errors during moves/adds/changes and ensuring the connector survives >500 insertion cycles without degradation. The 1.6mm cable construction uses a tight-buffered 900µm fiber inside a low-smoke PVC riser jacket reinforced with aramid yarn strength members; this combination meets ICEA S-83-596 mechanical specs for 100 N tensile load and 20× cable-diameter minimum bend radius (32mm dynamic, 20mm static).

Deploy the F92ERLNLNSNM010 anywhere LC duplex interfaces dominate — SFP/SFP+ transceiver modules in switches, media converters, or fiber NICs; pre-terminated MTP-to-LC breakout cassettes in spine-leaf fabrics; or FTTD (fiber-to-the-desk) office installations where 1G/10G copper is cost-prohibitive or EMI-sensitive. The 10-meter length is a Goldilocks size for same-row datacenter patching (typically 6-12m between adjacent racks) and telecom-room horizontal cross-connects, long enough to avoid cable strain yet short enough to avoid excess service loop that clutters overhead ladder rack. The riser rating permits vertical runs through floor penetrations and cable risers without conduit, a cost saver vs. plenum-rated cable in buildings where the riser pathway is separated from air-handling spaces by fire-rated construction. In multi-tenant or carrier hotel environments, the bright yellow jacket acts as an instant visual flag distinguishing tenant A's single-mode uplinks from tenant B's aqua OM3 links, reducing mis-patch risk during maintenance windows. The slim 1.6mm profile matters in high-port-count scenarios: a 144-port LC panel populated with 2.0mm cables yields a 12-inch-deep bundle exiting the rear; the same panel with 1.6mm cables shrinks that to under 10 inches, easing cable management and improving airflow in the rack.

This cord is built to TIA-568-C.3 Annex B tier-1 insertion-loss spec (≤0.75 dB for a channel with two connections), meaning you can daisy-chain a switch port → this jumper → panel → backbone → remote panel → second F92ER jumper → remote switch and still stay within 1.5 dB total for a 4-connector channel. That headroom accommodates future splices, aging, or contamination without triggering BER faults on 10GBASE-LR or 100GBASE-LR4 optics. Panduit ships each cord with protective dust caps on both connectors and backs it with the manufacturer warranty; the SKU is sold individually (package quantity 1) and ships in cartons of 10 for volume orders. For projects requiring plenum rating, substitute the F9*P* series; for outdoor or harsh environments, specify armored cordage with the FX6* prefix.
