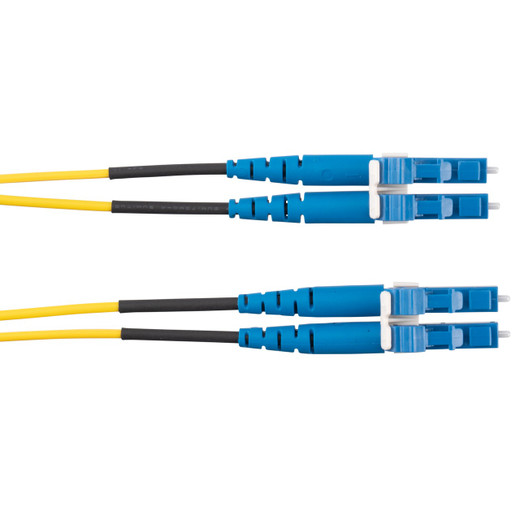

Panduit F92ELLNLNSNM015 OS2 Single-Mode Fiber Patch Cord

The Panduit F92ELLNLNSNM015 is a 15-meter duplex single-mode fiber optic patch cord engineered for datacenter, enterprise network, and security surveillance backbone applications requiring low-loss optical connections over extended distances. Built with OS2-rated 9/125μm single-mode fiber and LC duplex connectors on both ends, this cable delivers the reliability and performance needed for 10G/40G/100G Ethernet links, fiber channel storage networks, and IP camera aggregation switches. The 1.6mm LSZH (Low Smoke Zero Halogen) cable jacket meets stringent fire safety codes for plenum and riser installations while maintaining a slim profile that simplifies cable management in high-density rack environments.

Key Features

• OS2-rated single-mode fiber supports transmission distances up to 10km at 10G, 40km+ at 1G — ideal for campus backbone and inter-building datacenter links
• Duplex LC connectors provide industry-standard termination for switches, media converters, SFP/SFP+ transceivers, and fiber enclosures
• LSZH jacket construction limits toxic smoke and corrosive gas emission during fire events, meeting IEC 60332-1 and IEC 60754 requirements for occupied spaces
• 1.6mm cable diameter reduces pathway congestion and allows tighter bend radius compared to 2mm or 3mm alternatives
• 15-meter (49.2 ft) length suits rack-to-rack connections, cross-connect fields, and equipment room patch panels without excess slack
• Yellow jacket color follows TIA-598-C coding standard for single-mode fiber, simplifying visual identification during moves/adds/changes
• Standard polarity (A-B) configuration compatible with most network equipment and cassette modules without adapter keys
• Factory-terminated and tested connectors eliminate field termination labor and ensure consistent insertion loss performance

Single-mode OS2 fiber is the foundation of modern datacenter and surveillance network infrastructure. The 9μm core diameter enables laser-based transmission with minimal modal dispersion, allowing 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 optics to achieve full specified reach without signal degradation. For security integrators deploying centralized recording architectures, this means reliable 10G uplinks from access switches to core NVRs even when cameras are distributed across multiple floors or buildings. The duplex LC interface matches the form factor used by nearly all enterprise-grade SFP+ and QSFP28 transceivers, ensuring compatibility with Cisco, Arista, Juniper, Dell, and HPE switching platforms. Standard polarity orientation (transmit on one fiber, receive on the other) works directly with polarity Method A trunk cables and cassettes, eliminating the need for crossover patch cords or polarity-flip modules in most installations.

The 1.6mm cable diameter is purpose-built for high-density environments where pathway space is at a premium. Compared to traditional 2mm zipcord or 3mm distribution cables, the reduced cross-section allows 40-60% more circuits per cable tray or ladder rack, critical when retrofitting fiber into existing electrical rooms or telecom closets. The LSZH jacket compound delivers this slim profile without sacrificing durability — the cable meets IEC 60332-1 flame propagation requirements and IEC 60754-1/60754-2 halogen content limits, making it compliant with building codes in hospitals, schools, airports, and other public assembly spaces where PVC smoke toxicity is a code violation. For datacenter operators, LSZH construction also protects sensitive electronics: standard PVC cables release hydrochloric acid when burning, which corrodes server components and contaminates HVAC systems. The 15-meter length is optimized for intra-room connections — long enough to route from a top-of-rack switch to a meet-me room cross-connect or from an equipment cabinet to a wall-mounted fiber enclosure, but short enough to avoid the cable management problems (sagging, tangling, excess service loops) that plague over-provisioned runs.

This patch cord ships in single units with Panduit's standard insertion loss specification, typically ≤0.3dB for duplex LC connections. That performance is essential when designing multi-hop fiber paths: a surveillance network with three patch cords (camera switch to distribution switch, distribution to core, core to NVR) can stay within the 2.4dB loss budget required by 10GBASE-LR optics, preserving margin for future splices or connector cleaning cycles. The yellow jacket color follows TIA-598-C table A.1 guidance for OS2 single-mode cables, allowing technicians to distinguish these runs from OM3/OM4 multimode (aqua) or OM5 (lime green) circuits at a glance — a critical safety feature when performing live fiber moves in active datacenter hot aisles. For integrators billing T&M service calls, factory-terminated cordage eliminates the labor burden and warranty risk of field terminations: no fusion splicer, no cleaver, no epoxy curing, just plug-and-test deployment that meets performance specs on the first try.
