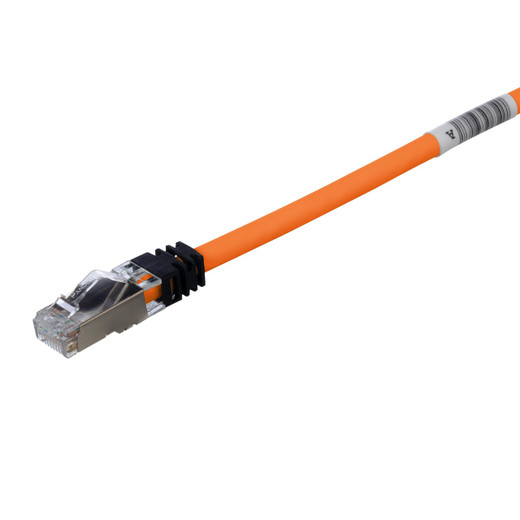

Panduit STP6X10OR TX6A 10Gig Cat 6A Shielded Patch Cord
High-density 10GBASE-T deployments demand patch cords that deliver full Category 6A performance without the cable-management headaches that slow MACs and create documentation gaps. The Panduit STP6X10OR combines shielded twisted-pair construction with tangle-free latch design and factory-installed RapidID barcodes, giving datacenter and enterprise network installers a 10-foot cord that maintains alien crosstalk margins in congested patch panels while streamlining port mapping and asset tracking. Built on 26 AWG stranded copper with dual CM/LSZH ratings, this orange TX6A cord fits switch-stacking, storage-network, and PoE++ camera links where EMI protection and rapid deployment both matter.
Key Features
- 10 Gigabit Ethernet Ready: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications for reliable 10GBASE-T performance up to 100 meters
- S/FTP Shielded Construction: Foil-shielded twisted pairs plus overall braid shield reject EMI and alien crosstalk in high-density rack environments and near power distribution
- RapidID Enabled: Pre-installed barcode labels integrate with Panduit RapidID software for automated port mapping, cable documentation, and MAC workflow acceleration
- Tangle-Free Latch: Snagless boot design prevents cable snags during installation and removal, reducing downtime and physical strain on modular plugs
- Slender Strain Relief: Low-profile boot maintains port density in 48-port patch panels and high-count switch arrays without blocking adjacent ports
- Dual Flammability Rating: CM and LSZH certifications allow deployment in standard commercial spaces and low-smoke datacenter environments under the same part number
- PoE++ Durability: Rated for 2,500 insertion cycles under IEEE 802.3bt Type 3 and Type 4 power loads, supporting long-term PoE camera and access-point installations
- Stranded 26 AWG Copper: Flexible construction tolerates repeated flexing in movable equipment connections and patch-panel reorganizations
Category 6A shielded patch cords solve two problems that unshielded Cat 6A cannot: alien crosstalk in densely packed cable bundles and electromagnetic interference near variable-frequency drives, UPS systems, or industrial equipment. The STP6X10OR uses individual foil shields on each twisted pair plus a braided overall shield to maintain the 500 MHz bandwidth and –10 dB alien crosstalk headroom required by TIA-568.2-D, even when dozens of cords run parallel in the same cable manager. The result is sustained 10GBASE-T bit-error rates below 10⁻¹² without the oversized separators that make unshielded Cat 6A cords stiff and hard to dress. Panduit's TX6A modular plugs meet the 2,500-cycle durability requirement of IEEE 802.3bt (PoE++ up to 90W), which matters for security-camera patch cords that carry continuous power and get reconnected during camera swaps or troubleshooting.
The tangle-free latch and slender boot directly address the installer friction that slows MACs in enterprise and datacenter environments. Traditional snagless boots catch on adjacent cables during extraction, forcing technicians to work one hand on the latch and one hand pulling the cord while crouched in front of a rack. Panduit's tangle-free design uses a low-profile, flexible boot that releases cleanly with a single squeeze, cutting patch-cord swap time and reducing the risk of accidental disconnects on neighboring ports. RapidID barcodes—printed on durable labels and applied at the factory—integrate with Panduit's RapidID Asset Management software to automate port documentation: scan the cord during installation, and the software records switch port, VLAN, endpoint device, and installation date in a centralized database. This eliminates the manual spreadsheet updates and label-maker workflows that create documentation drift in large campus or multi-building networks. For compliance-driven industries (finance, healthcare, defense), RapidID provides the audit trail that maps every physical connection to logical network policy.
The dual CM/LSZH rating gives installers a single SKU for mixed-environment projects: use the same cord in standard office spaces (CM) and in raised-floor datacenter hot aisles or telecom rooms where local code mandates low-smoke, zero-halogen cable (LSZH per IEC 60754-1 and IEC 61034-2). Orange jacket color supports TIA-606-B administration standards for centralized cross-connect or demarcation cabling, making this cord a fit for switch-to-switch links, storage-network uplinks, or aggregation-layer connections where visual identification speeds troubleshooting. Backed by Panduit's TX6A system warranty and third-party verified to exceed Category 6A channel performance when used with TX6A jacks and panels, the STP6X10OR delivers the combination of electrical performance, physical durability, and workflow integration that separates professional datacenter infrastructure from commodity patch cords.
