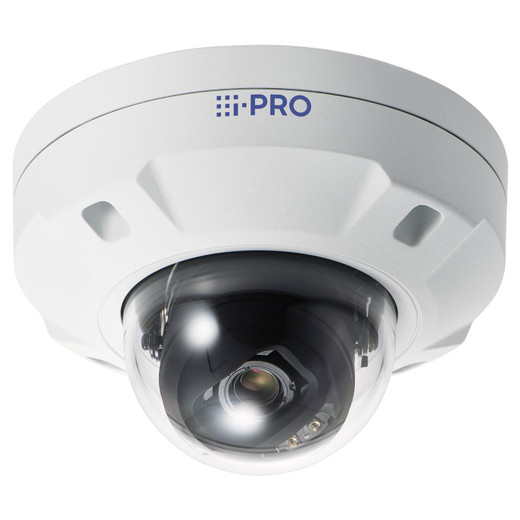

i-PRO WV-S2536LTNA 2MP Outdoor Vandal Dome Camera with AI Engine

Overview

The i-PRO WV-S2536LTNA is a 1080p outdoor vandal-resistant dome built for deployments where cybersecurity compliance, low-light performance, and edge AI analytics are non-negotiable requirements. With FIPS 140-2 Level 3 hardware encryption via an NXP EdgeLock SE050F secure element, NDAA Section 889 compliance, and support for up to two simultaneous edge AI applications on the Ambarella CV25M SoC, this camera is engineered for federal, critical infrastructure, and enterprise environments that have moved past basic IP surveillance. It fits naturally alongside other i-PRO IP cameras in a layered security architecture.

The 9–21mm motorized varifocal lens provides 2.3x optical zoom with autofocus, covering a horizontal field of view from 11° to 36° — wide enough for corridor entrances, tight enough to isolate detail at distance. Pan, tilt, and rotation adjustability (horizontal -194° to +166°, vertical -30° to +85°, yaw ±100°) means you can cover awkward mounting geometries without compromising your sight line. Explore the full range of outdoor IP cameras if you need to compare form factors before committing.

Key Features

• 144dB Super Dynamic WDR: At maximum Super Dynamic level 31, this sensor handles scene contrast that would destroy most commercial cameras. Sun-blasted lobbies, parking garage exits, loading dock doors with mixed interior/exterior lighting — this is where 144dB matters. Standard WDR cameras typically cap at 90–120dB; the gap is visible in your recordings.
• 70m IR LED with Adjustable Power: The built-in IR illuminators reach 70 meters (230 ft) with High/Middle/Low/Off settings, so you're not over-illuminating close targets and washing out detail. Black-and-white sensitivity reaches 0 lx with IR on — useful for parking lots and perimeter fencing where ambient lighting drops to nothing after hours.
• FIPS 140-2 Level 3 Secure Element: The NXP EdgeLock SE050F chip handles cryptographic key storage in tamper-resistant hardware. This is not software-level encryption — it meets the threshold required by many federal procurement and DHS guidelines. If your project has a FIPS requirement, the WV-S2536LTNA covers it at the hardware level.
• Ambarella CV25M Edge AI SoC: Supports up to two concurrent AI analytics applications. This means you can run, for example, AI video motion detection alongside people/vehicle detection without adding a server-side analytics license per channel. For multi-camera deployments across network video recorders, the edge processing offload is a real infrastructure cost consideration.
• IP66 / IK10 / NEMA 4X / Wind Rated to 40 m/s: IP66 blocks wind-driven rain and dust completely. IK10 is the highest vandal resistance rating — survives 20-joule impacts. The 40 m/s wind rating covers hurricane-force conditions. This housing is aluminum die cast, not plastic, so the rating is structural, not just certified.
• -40°C to +60°C Operating Range: Full operation from extreme cold to desert heat. This matters for outdoor installations in northern climates where cheaper cameras fail at -20°C, or rooftop deployments in southern regions where enclosure temps spike well above ambient.
• MicroSDXC Local Storage: On-board SD card slot supports microSDXC/SDHC/SD formats, providing edge recording for network redundancy or standalone operation during WAN outages. Useful in distributed sites where NVR connectivity is intermittent.
• Three Alarm Inputs + AUX Out: Three dedicated alarm input terminals plus ALARM OUT and AUX OUT give you direct integration with door contacts, PIR sensors, glass break detectors, and external lighting relays — without going through a separate I/O module. Combined with audio I/O (3.5mm stereo jacks for both input and output), this handles two-way intercom and triggered recording in a single device.
• H.265 Compression with GOP Control: H.265 reduces bandwidth and storage requirements roughly 40–50% compared to H.264 at equivalent quality — a meaningful number when you're managing 24/7 recording across dozens of channels. GOP (group of pictures) control lets you tune the balance between compression efficiency and seek performance for your VMS. Pair this with a camera selection guide to right-size storage planning before deployment.
• ONVIF Profile G/M/S/T: Full ONVIF compliance across all four profiles ensures compatibility with virtually any enterprise VMS platform. Profile G handles edge recording; Profile T covers H.265 and metadata. VMS integrators working with Milestone, Genetec, or VideoInsight can connect without custom drivers.

Integration and Compatibility

The WV-S2536LTNA (often searched as WV S2536LTNA) connects via 10/100Base-T RJ-45 and draws approximately 10.1W over standard PoE (48V DC), keeping it within 802.3af budget on most managed PoE switches — no PoE+ requirement. DC12V auxiliary power is also supported at approximately 10.3W. The camera supports up to 14 simultaneous users and streams at resolutions from 1920×1080 down to QVGA, making it practical for both full-resolution recording and low-bandwidth mobile monitoring via iPad, iPhone, or Android. Firmware compatibility requires VideoInsight (VI) 7.9.x or higher. FCC Class A, ICES-003 Class A, EN55032 Class B, UL, c-UL, and CE certifications are all present.

Frequently Asked Questions

Q: Is the WV-S2536LTNA NDAA Section 889 compliant?

A: Yes. i-PRO lists the WV-S2536LTNA as NDAA compliant, making it eligible for federally funded projects subject to Section 889 procurement restrictions.

Q: What is the maximum IR range on the WV-S2536LTNA?

A: The built-in IR LED illuminators reach a maximum of 70 meters (approximately 230 feet). IR output is adjustable — High, Middle, Low, or Off — to prevent over-illumination of close targets.

Q: Does the WV-S2536LTNA support edge AI analytics without a separate server license?

A: Yes. The onboard Ambarella CV25M SoC supports up to two concurrent edge AI analytic applications running directly on the camera. This reduces per-channel server-side analytics licensing costs in multi-camera installations.

Q: What PoE standard does the WV-S2536LTNA require?

A: The camera draws approximately 10.1W over PoE at 48V DC, which falls within the 802.3af standard (15.4W budget). No PoE+ switch is required. DC12V auxiliary power is also supported at approximately 10.3W.

Q: What VMS firmware version is required for the WV-S2536LTNA?

A: The WV-S2536LTNA requires VideoInsight (VI) version 7.9.x or higher. It also supports ONVIF Profiles G, M, S, and T for compatibility with third-party VMS platforms.

Q: What is the vandal resistance rating of the WV-S2536LTNA?

A: The camera carries an IK10 rating — the highest level in the IEC 62262 scale — meaning the housing withstands 20-joule impacts. The enclosure is aluminum die cast with IP66 and NEMA 4X weatherproofing.

Marty Allison

What makes the WV-S2536LTNA stand out to me is not the AI engine or the IR range — it is the FIPS 140-2 Level 3 hardware secure element. Most cameras in this resolution class handle cybersecurity at the firmware layer, which is easier to attack and harder to audit. The NXP EdgeLock SE050F chip in this camera stores cryptographic keys in tamper-resistant silicon, which is a fundamentally different security posture and a real differentiator when you are writing the camera spec for a federal or critical infrastructure bid.

Technical Highlights:

• 144dB Super Dynamic WDR: At level 31, this is among the widest dynamic ranges available in a 1080p outdoor dome. In practical terms, a camera at a parking garage exit — bright exterior, dim interior — will hold usable detail on both sides of the threshold simultaneously. Most 120dB cameras lose shadow detail in that scenario.
• Ambarella CV25M with dual AI app support: Running two edge analytics apps concurrently on-camera means you can combine, for example, AI VMD with people/vehicle classification without provisioning a separate analytics server. Across a 32-camera site, that is a material reduction in infrastructure cost and latency.
• 70m IR at adjustable power levels: The High/Middle/Low IR control is not cosmetic. On a 15-meter hallway, full-power IR will bloom and lose facial detail. Setting it to Low or Middle lets the AGC work properly and gives you usable forensic image quality at close range.

Deployment Considerations:

• This is an MTO (make-to-order) unit with a 30–45 day lead time. Do not spec it into a project with a sub-30-day installation window without confirming stock availability first. Build the lead time into your project schedule at the bid stage.
• The 9–21mm lens provides a horizontal FOV of only 11°–36°. This is a telephoto-to-medium range, not a wide-angle dome. If your scene requires coverage wider than 36° horizontal — large open floors, wide intersections — this is the wrong lens. Choose a wider fixed or varifocal variant for those positions and reserve the WV-S2536LTNA for choke points, corridors, and perimeter detail shots.

This camera is the right specification for federal facility entrances, critical infrastructure perimeter posts, and any site where a cybersecurity audit will scrutinize the camera hardware. The combination of FIPS 140-2 Level 3, NDAA compliance, IK10 housing, and 144dB WDR in a single 1080p dome is a narrow profile that matches a specific procurement requirement — and it delivers on all of them.
