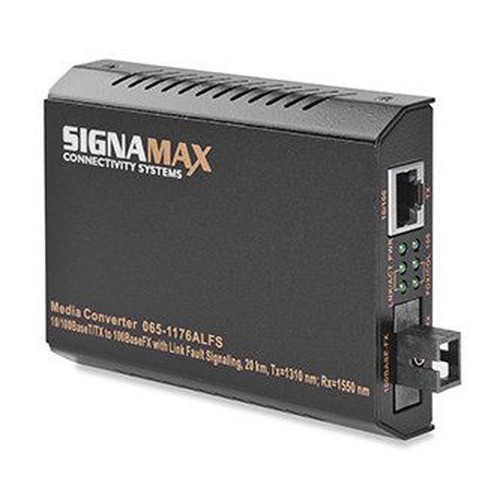

Signamax 065-1176ALFSMM 10/100 to 100BaseFX WDM Fiber Media Converter

Overview

The Signamax 065-1176ALFSMM is a crucial component for extending network connectivity beyond the limitations of copper cabling. This WDM (Wavelength Division Multiplexing) media converter bridges the gap between 10/100 Ethernet copper ports and 100BaseFX multimode fiber optic links. It operates using two distinct wavelengths, transmitting at 1310 nm and receiving at 1550 nm, allowing for a single fiber strand to carry bidirectional data. This is ideal for industrial environments, large campus networks, or surveillance systems where you need to bridge distances of up to 2 km reliably.

Compatibility

This converter is designed to interface with standard 10/100Base-TX Ethernet ports found on network switches, IP cameras, or other network devices. It connects to 100Base-FX multimode fiber optic networks using SC connectors. Ensure your fiber infrastructure uses compatible WDM transceivers operating at 1550 nm for transmission and 1310 nm for reception to establish a link. It is compatible with network equipment that adheres to IEEE 802.3u (Fast Ethernet) and 802.3x (Flow Control) standards.

Installation Notes

Installation requires connecting a standard RJ-45 Ethernet cable to the copper port and an SC connector fiber optic cable to the fiber port. The device draws power from the connected network equipment via its integrated PoE (Power over Ethernet) capability, adhering to the 802.3af standard. This eliminates the need for a separate power adapter, simplifying deployment in environments where power outlets are scarce. Ensure the fiber optic cable is clean and free of debris before connecting to prevent signal degradation.
