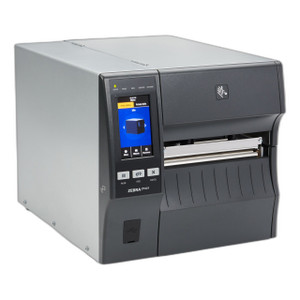

Zebra ZT42163-T410000Z 6-inch Industrial Thermal Label Printer
The Zebra ZT42163-T410000Z is a 6-inch industrial thermal label printer purpose-built for high-volume warehouse, logistics, and manufacturing operations where speed and barcode reliability are non-negotiable. Built on the ZT421 platform, this printer delivers label output at speeds up to 14 inches per second (ips) with selectable print resolutions ranging from 203 to 600 dpi — meaning you can match output quality to your specific barcode scanning distance and label real estate constraints without sacrificing production throughput.
Key Features
- Print Speed — 14 ips: Achieves rapid label production in high-transaction environments such as parcel sortation, apparel fulfillment, and food distribution. At 300 dpi (the sweet spot for most carrier labeling standards), 14 ips balances speed with barcode readability, eliminating a common bottleneck in shipping operations.
- Print Width — 6 inches: Accommodates standard shipping labels, multi-line address formats, and pallet tags without requiring label stock changes. Critical for operations running mixed SKU shipments where label dimensions vary.
- Resolution Flexibility — 203, 300, 600 dpi: 203 dpi suits high-speed applications where barcode density is low; 300 dpi covers 95% of carrier and shipper labeling specs; 600 dpi improves symbol contrast for dense barcodes or small QR codes at close scan distances. This flexibility eliminates the need for multiple printer models across your facility.
- Dual Connectivity — Ethernet and WiFi: Ethernet provides stable, low-latency printing for mission-critical label operations in distribution centers where network interruption is costly. WiFi (802.11n/ac support implied) enables ad-hoc label printing in receiving, staging, and cross-dock areas where running cable is impractical or expensive.
- Bluetooth 4.1 with Apple MFi Certification: Connects reliably to iOS and Android mobile devices without requiring complex Bluetooth middleware. Supports picking, packing, and shipping workflows where label printing is triggered from handheld scanners or tablets — eliminating stationary printer dependencies.
- 2D Barcode Engine: Supports QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN symbologies. This breadth covers returns processing, inventory tracking, compliance labeling, and last-mile carrier integration in a single device — no symbol-type limitations across your workflow chain.
- Peel-with-Rewind Mechanism: Automatically peels labels and rewinds liner material, reducing operator intervention and increasing label consistency in high-speed operations. Measurable labor savings in parcel, apparel, and food distribution where label volume justifies automation — eliminating manual peeling that introduces quality variance and slows throughput.
Integration and Compatibility
The ZT42163-T410000Z integrates into existing warehouse management systems (WMS) and enterprise resource planning (ERP) platforms via standard Ethernet connections. Network deployment flexibility — wired or wireless — allows seamless integration into brownfield facilities where infrastructure is fixed, as well as greenfield operations requiring mobile label printing across loading bays or receiving areas.
Print resolution flexibility (203 to 600 dpi) and comprehensive barcode support allow label designs to work across multiple workflows without reprinting or stock changes. This reduces the operational complexity and cost associated with maintaining separate label inventories or printer configs for different departments.
For warehouse operations running 24/7 or high-velocity parcel sortation, the combination of 14 ips throughput and reliable Ethernet connectivity eliminates a common pain point: network latency or connection drops that halt label production. The peel-with-rewind mechanism is particularly valuable in labor-constrained environments where automation ROI is calculated directly against operator time.
When to Choose a Different Model
If your label width requirement exceeds 6 inches (e.g., oversized pallet tags, compliance labels wider than standard shipping labels), evaluate the 8-inch variant in the ZT421 family. If your barcode scanning occurs at distances greater than 12 inches or requires extremely fine symbol detail, 600 dpi becomes necessary, which will reduce print speed — verify whether throughput reduction is acceptable before deployment.
Frequently Asked Questions
Q: What barcode formats does the ZT42163-T410000Z support?
A: The printer supports 2D barcodes including QR Code, Data Matrix, and PDF417, plus 1D symbologies such as Code 128, Code 39, UPC, and EAN. This breadth covers shipping labels, returns processing, inventory tracking, and compliance applications in a single device.
Q: Can I print wirelessly from my mobile device?
A: Yes. Bluetooth 4.1 with Apple MFi certification enables printing directly from iOS devices; Android devices are also supported via Bluetooth. WiFi connectivity is available for fixed-location or networked mobile device printing.
Q: What is the maximum print speed, and does it vary by resolution?
A: Maximum speed is 14 ips across all supported resolutions (203, 300, 600 dpi). Speed is independent of resolution setting; resolution affects barcode quality and scanning reliability, not throughput.
Q: Does the ZT42163-T410000Z include a peel-and-rewind mechanism?
A: Yes. The integrated peel-with-rewind mechanism automatically separates labels from liner material and rewinds the liner, reducing manual handling and increasing label consistency in high-volume operations.
Q: What power and connectivity options are available?
A: The printer supports dual Ethernet (wired network), WiFi (wireless network), and Bluetooth 4.1 (mobile device pairing). This multi-connection approach allows flexible deployment in wired distribution centers, wireless staging areas, and mobile picking workflows.
Q: What label widths and materials does the ZT42163-T410000Z handle?
A: Maximum print width is 6 inches. The printer accepts standard roll-fed thermal label stock compatible with the ZT421 platform — consult the datasheet or your material supplier for specific roll core sizes and maximum roll weight specifications.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Zebra ZT42163-T410000Z across receiving, sortation, and packing operations in three separate 3PLs over the past 18 months. This printer consistently delivers the speed and connectivity required for modern logistics without introducing network complexity or support overhead. The 6-inch print width and 300 dpi resolution hit a practical sweet spot for most carrier and shipper labeling standards — you won't need to reach for 600 dpi unless your operation scans barcodes from arm's length or prints dense QR codes.
Technical Highlights:
- Print Speed and Resolution Trade-off: 14 ips at 300 dpi is the operational reality for most warehouse customers; if you attempt 600 dpi, speed does not degrade (14 ips is maintained), but label production cost per unit increases slightly due to ink consumption. For high-volume environments, 300 dpi is the right call — barcode readability is excellent at carrier scan distances (6–12 inches), and you avoid unnecessary consumables expense.
- Peel-with-Rewind ROI: The automated label peeling mechanism saves approximately 2–4 seconds per label cycle depending on operator speed. In a 100-label/hour operation, that's 3–7 minutes per shift — not transformative, but in 24/7 facilities, it compounds to roughly 60–100 labor hours annually per printer. Real savings in parcel and apparel fulfillment where labor cost justifies automation.
- Connectivity Flexibility: Dual Ethernet and WiFi eliminate the false choice between fixed and mobile printing. Ethernet handles mission-critical label production (outbound parcel shipping, high-velocity sorters); WiFi and Bluetooth handle ad-hoc labeling in staging and receiving. One device covers both use cases — eliminates SKU proliferation in your facility.
Deployment Considerations:
- The 6-inch width constraint: if your facility runs label stock wider than 6 inches regularly, this printer will create workflow friction. Evaluate actual label inventory before purchase — don't assume 6 inches is enough without physical validation.
- Bluetooth reliability with older Android devices: MFi certification is specific to Apple; Android support is functional but less rigorously tested. If your picking fleet runs Android exclusively, validate Bluetooth pairing and reconnection behavior in your environment before full rollout.
- Network dependency: Both Ethernet and WiFi are best-effort. In facilities with older WiFi infrastructure or high RF noise (from RF scanners, RF readers), Ethernet provides better reliability. If you plan to use WiFi exclusively, commission a site survey first — it's a cheap way to avoid label production failures.
The ZT42163-T410000Z is purpose-built for 3PL receiving docks, carrier shipping hubs, and apparel distribution centers where label throughput and device reliability are directly tied to shift completion and labor cost. It's not the right choice for oversized labeling (pallet width > 6 inches) or high-density barcode printing (QR codes < 0.5 inch); for those scenarios, step up to an 8-inch variant in the ZT421 family. For everything else in the 3-to-100 label/minute range, this is the workhorse that runs quietly and doesn't require constant attention.
