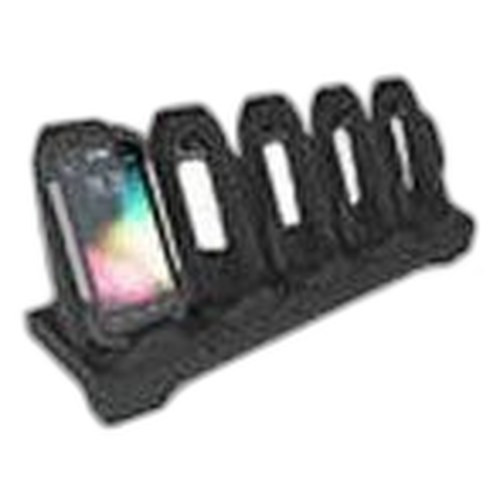

Zebra CRD-TC5X-INSRT1-05 TC5X ShareCradle Cup Insert
Overview
The Zebra CRD-TC5X-INSRT1-05 is a replacement cup insert designed for use with the Zebra TC5X ShareCradle multi-device charging dock. This accessory maintains secure device positioning during charging and data synchronization operations across warehouse, retail, and field service environments. The black insert replaces worn or damaged cradle components without requiring a full dock replacement — a cost-effective maintenance path for high-volume deployments.
If you operate Zebra TC5X mobile computers in shift-based or depot-charging scenarios, cup insert wear is inevitable. Over thousands of charge cycles, the contact surfaces degrade and the spring retention can weaken. The CRD-TC5X-INSRT1-05 (often searched as CRD TC5X INSRT1 05) addresses exactly that. Swapping a cup insert takes minutes; replacing an entire dock costs significantly more and creates downtime.
Key Features
- Engineered fit for TC5X mobile computers: The insert is precision-molded to cradle Zebra TC5X devices securely, ensuring consistent electrical contact with dock pins across repeated insertion and removal cycles. Loose seating causes intermittent charging failures — this insert eliminates that risk by maintaining contact pressure.
- Reduces full dock replacement costs: Rather than scrapping a cradle when the cup wears, you replace the insert. In a 20-unit warehouse operation, this approach saves hundreds of dollars annually while keeping devices online longer.
- Compatible with ShareCradle multi-device charging: The ShareCradle system charges multiple TC5X units in parallel. A degraded insert on one cradle can drag down synchronization performance across the whole system. Fresh inserts restore dock reliability.
- Black finish matches standard Zebra dock aesthetics: Replacement inserts maintain visual consistency across your charging infrastructure and integrate seamlessly into existing docking stations.
- Suitable for high-cycle deployment environments: Warehouses and logistics operations that dock devices multiple times per shift will see faster insert wear. The CRD-TC5X-INSRT1-05 is built to handle that frequency.
- No tools or special procedures required: Cup inserts pop in and out without screwdrivers or alignment jigs. Technicians or warehouse staff can complete a replacement in under a minute per dock.
When to Choose This Insert
Purchase the CRD-TC5X-INSRT1-05 if you operate one or more Zebra TC5X ShareCradle docks and have noticed intermittent charging, loose seating, or visible wear on the existing cup. Keep spares on hand if your operation docks devices more than 3–4 times per day — you'll need replacements every 12–24 months depending on usage intensity.
If you are deploying TC5X devices for the first time or expanding an existing fleet, order spares alongside your initial dock purchase. Downtime waiting for a replacement insert is easily avoided at procurement time.
Integration & Compatibility
This insert is engineered specifically for Zebra TC5X mobile computers used with the ShareCradle multi-device charging system. It is not compatible with single-unit cradles, vehicle mounts, or other Zebra dock types. Verify your existing dock model before ordering; the part number clearly identifies TC5X compatibility.
What's in the Box
- 1x TC5X ShareCradle Cup Insert (Black)
Frequently Asked Questions
Q: How often do I need to replace the cup insert?
A: Insert lifespan depends on docking frequency. In high-cycle environments (4+ docks per shift), expect 12–24 months. Lower-frequency operations may see 2–3 years. Watch for intermittent charging or loose device seating as early replacement indicators.
Q: Can I use the CRD-TC5X-INSRT1-05 with a single-unit cradle?
A: No. This insert is designed exclusively for the ShareCradle multi-device dock. Single-unit cradles use a different cup form factor and are not compatible.
Q: Do I need to power down the dock or remove other devices before replacing an insert?
A: It is best practice to power down the dock and remove any docked devices. Cup insert replacement takes only a minute, and this approach eliminates accidental contact or electrical issues during the swap.
Q: Is the insert black only, or are other colors available?
A: The CRD-TC5X-INSRT1-05 is supplied in black. No alternative colors are offered by the manufacturer.
Q: What warranty covers this accessory?
A: Warranty terms for replacement accessories are typically governed by your Zebra support agreement. Contact your integrator or Zebra directly for specifics on your deployment.
Q: Should I keep spare inserts in inventory?
A: For deployments with 5 or more docks, or in high-cycle environments, maintaining 1–2 spares is recommended. This avoids downtime while waiting for a replacement to arrive.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CRD-TC5X-INSRT1-05 is a consumable that most integrators overlook until a dock fails mid-shift. I've seen operations lose 4–6 hours of productivity because a worn insert prevented secure seating and charging. This isn't glamorous kit, but it's exactly the kind of spare-parts planning that separates well-run warehouses from reactive ones.
Technical Highlights:
- Precision molding for TC5X form factor: The cup is engineered to the exact physical profile of the Zebra TC5X device. Poor fit means intermittent electrical contact, which manifests as incomplete synchronization or failed charge cycles. This insert eliminates that failure mode.
- Reduces dock lifecycle costs: A full ShareCradle dock replacement can cost $800–$1500. A cup insert replacement costs a fraction of that and takes a technician five minutes. Do the math on a 20-dock operation: you'll save thousands over a five-year period.
- ShareCradle ecosystem dependency: If you run mixed docking infrastructure (single-unit cradles and ShareCradles), verify dock model before ordering. There is no universal insert across Zebra's TC series cradle lineup.
Deployment Considerations:
- High-cycle operations (logistics, manufacturing, order fulfillment) should budget for insert replacement every 18 months. Spare inventory of 1–2 units per 5 docks avoids critical-path downtime.
- Watch for the early warning sign: devices that seat loosely or require manual adjustment to charge reliably. That's your signal that the cup elasticity is degrading. Replace proactively rather than waiting for a complete dock failure.
- The CRD-TC5X-INSRT1-05 is a black-only part. If your infrastructure uses color-coded docks or esthetic constraints exist, verify that the visual appearance aligns with your standards.
Position this as part of a preventive maintenance program for any TC5X ShareCradle deployment. Buying three spares at commissioning time and rotating them out every two years will cost less than the emergency dock replacement and lost productivity that otherwise occurs. For warehouse automation engineers managing 50+ devices, this is low-cost insurance.
