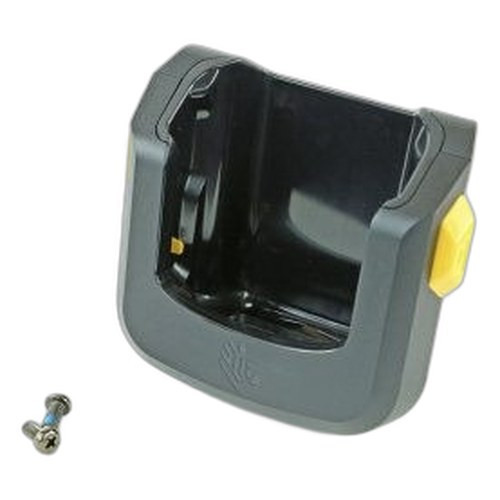

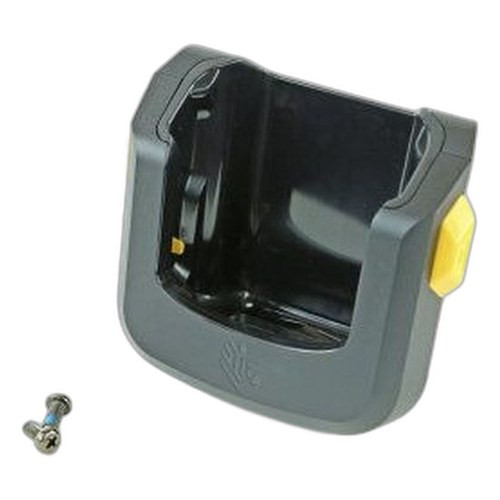

Zebra CRD-TC56-CVCD2-02 TC5X Vehicle Cradle
The Zebra CRD-TC56-CVCD2-02 is a vehicle-mounted cradle purpose-built for Zebra TC5X series mobile computers operating in fleet, logistics, and delivery environments. The side lock latch mechanism is the core retention feature here—it prevents device ejection during vehicle acceleration, braking, and rough terrain, which directly reduces loss or damage in high-motion field operations. If your TC5X is bouncing off a dashboard or falling under a seat, you're wasting scanning efficiency and increasing hardware replacement costs. This cradle eliminates that problem.
Key Features
- Side lock latch retention: Mechanical latches grip the TC5X device securely on both sides, ensuring the mobile computer stays mounted during acceleration, hard braking, and off-road transit. Reduces unintended device ejection in vehicles with poor suspension or unpredictable roads.
- TC5X and TC56 compatibility: Designed specifically for Zebra TC56 and TC5X series devices. If you're running earlier Zebra mobile computers (TC25, TC8000, etc.), this cradle will not fit—verify your fleet model before ordering.
- Standard vehicle mounting: The cradle integrates with existing vehicle dash, windshield, or center-console mounting points. No proprietary mounting system means integration into aftermarket vehicle racks and OEM-supplied mounts is straightforward.
- Consistent scanning position: Fixed mounting angle and depth keep the device at an ergonomic distance from the operator, improving barcode scan success rates during rapid pick-and-pack or delivery-confirmation workflows.
- Field-hardened design: Built for warehouse loading docks, delivery vehicles, and fleet environments where devices encounter dust, vibration, and temperature swings. The cradle itself does not add significant weight or bulk to vehicle interiors.
- Easy device insertion and removal: Side latches release quickly, allowing operators to remove the TC5X for hand-held scanning tasks without unbolting the entire cradle assembly.
Integration and Deployment
The CRD-TC56-CVCD2-02 (often searched as CRD TC56 CVCD2 02) integrates with your existing Zebra mobile device ecosystem. Installation requires mounting the cradle to a vehicle's dashboard, windshield pillar, or custom frame using standard fasteners. No power or data cabling is required from the cradle itself—the TC5X communicates via cellular, Wi-Fi, or wired dock when vehicle-docked. If your operation relies on real-time data synchronization (inventory updates, delivery manifest confirmation), the cradle keeps the device positioned for immediate scanning between stops.
Suitable deployments include last-mile delivery fleets, warehouse picking vehicles, field service routing, and logistics yard operations. If your vehicles are climate-controlled cabs with minimal vibration, a simpler passive mount may suffice. For high-vibration or outdoor-heavy fleets, the side lock mechanism justifies the additional cost.
When to Choose a Different Model
If you operate TC5X devices primarily in stationary warehouse scanning stations or offices, a vehicle cradle is unnecessary—standard charging docks are the better choice. If your fleet uses non-Zebra devices (Apple, Samsung, or other Android platforms), this cradle is incompatible. For multi-device mounting (TC5X plus barcode scanner or RF module), verify that the cradle's lateral footprint accommodates your specific configuration before purchase.
Frequently Asked Questions
Q: Will the CRD-TC56-CVCD2-02 fit TC25 or TC8000 devices?
A: No. This cradle is designed for TC56 and TC5X series devices only. Earlier or later Zebra models require different cradles due to form factor differences.
Q: Does the cradle require power or data connectivity?
A: No. The cradle is a passive mechanical mount with no electrical components. The TC5X maintains all connectivity independent of the cradle.
Q: Can I install this in a private vehicle or only commercial fleet vehicles?
A: The cradle works in any vehicle with standard mounting surfaces (dashboard, windshield, center console). No OEM or commercial fleet-specific integration is required.
Q: What warranty covers the CRD-TC56-CVCD2-02?
A: Refer to the manufacturer's warranty documentation for coverage period and terms. Typical cradle warranties cover defects in materials and workmanship.
Q: Does the side lock latch wear out or require maintenance?
A: The latches are mechanical and may show wear over heavy use. Regular cleaning and inspection for cracks or misalignment ensure reliable retention over time. No scheduled lubrication is required.
Q: Will this cradle interfere with vehicle airbags or safety systems?
A: Mount the cradle away from airbag deployment zones. Follow your vehicle manufacturer's guidelines for safe device mounting locations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the CRD-TC56-CVCD2-02 across mixed-fleet environments where TC5X devices are the workhorse for pick-pack and delivery scanning. The side lock latch mechanism is straightforward but effective—it's the difference between a device staying mounted through pothole-heavy city streets versus rolling under a seat after the first hard stop. The key deployment win here is consistency: operators know the device will be within predictable reach when they jump back in after a delivery, which cuts scanning task time and reduces frustration when devices go missing.
Technical Highlights:
- Side lock latch engagement: The dual-latch design means the TC5X is gripped from both sides rather than held by a single compression point. This distributes stress and prevents the device from rotating or shifting during high-acceleration or braking events—critical in urban delivery routes where aggressive driving is common.
- TC5X form factor fit: The CRD-TC56-CVCD2-02 is machined specifically for TC5X geometry, so you don't get the play or wobble you sometimes see when a device is force-fitted into a generic cradle. That precision improves scanning angle consistency and reduces operator fatigue from reaching or repositioning.
- Passive thermal design: No powered components means the cradle doesn't add heat to a device in a sun-exposed vehicle cab. In hot-climate operations (Southwest delivery routes, outdoor warehouse yards), this matters—TC5X devices already manage heat; a cradle that doesn't trap air around the back of the device is a small but real advantage.
Deployment Considerations:
- Verify your fleet's TC5X model and form factor before bulk purchasing. If you have a mix of TC56 and TC5X devices, they may both fit, but test one unit in your vehicle setup first to confirm latch engagement is firm and repeatable.
- The side latches are mechanical and will fatigue over time in vehicles with sustained vibration (long-haul trucking, off-road field service). Budget for replacement latches or cradle refresh every 2–3 years in harsh-duty environments.
Position this cradle for last-mile delivery fleets and high-motion warehouse operations where device retention is non-negotiable and operators work in multiple vehicles per shift. If your fleet operates from a single depot with vehicles parked at the end of each day, a dock-based charging solution may be more cost-effective.
