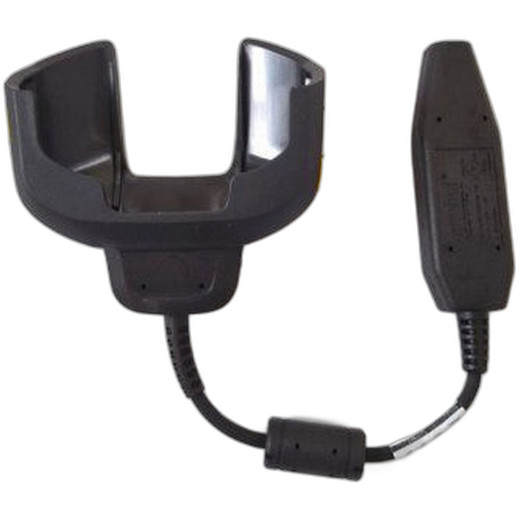

Zebra CHG-TC7X-CLA1-02 Auto Charging Cable Cup
Overview
The Zebra CHG-TC7X-CLA1-02 is a docking cradle charging accessory engineered for Zebra TC7X-series mobile computers. This auto-charging cable cup provides reliable power delivery and device connection in high-rotation environments where warehouse staff, distribution center operators, and field service teams need to charge units between shifts or between delivery routes. The design integrates into existing docking infrastructure, eliminating the need for manual cable connection — a meaningful simplification when dozens of devices cycle through a charging station daily.
Key Features
- TC7X Series Compatibility: Engineered specifically for Zebra TC7X mobile computers, ensuring proper mechanical fit and electrical contact. This eliminates guesswork during dock configuration and reduces the risk of connector wear from misaligned charging attempts.
- Auto-Charging Design: The cable cup mechanism enables automatic power delivery when a device is positioned in the dock — no manual cable insertion or alignment adjustment required. This cuts per-device charging time and reduces user error in warehouse environments with high staff turnover.
- Docking Station Integration: Mounts within standard docking station infrastructure, supporting centralized power management across multiple devices. This is valuable if you're already running a multi-bay charging setup for rugged handhelds across warehouses or retail locations.
- Rapid Device Rotation Support: Designed for environments where devices need to charge in short windows between work shifts. Consistent contact quality means no failed charges due to dirty or worn connectors — a real problem in dusty warehouse settings.
- Field Service and Logistics Ready: Supports deployment models in distribution centers, last-mile operations, and warehouse automation systems where multiple TC7X units must be ready for immediate use.
- Reliable Power Delivery: The cable cup maintains stable electrical contact across repeated docking cycles, reducing downtime from failed charging attempts and extending the usable lifespan of device charging ports.
Integration & Compatibility
The CHG-TC7X-CLA1-02 is purpose-built for Zebra mobile computers in the TC7X line. It integrates into standard docking station frameworks used across warehouse automation and logistics operations. If your deployment already uses Zebra TC7X handhelds for barcode scanning, RFID tagging, or route optimization in a warehouse or distribution environment, this cable cup is a direct fit-and-install component. Verify your current docking station model before ordering to confirm mounting compatibility — some legacy docks may require an adapter bracket.
For broader device management and power planning across multiple TC7X units, consider reviewing your centralized device charging infrastructure to ensure adequate power budget for simultaneous charging of multiple units.
What's in the Box
Package contents are not specified in available documentation. Contact the manufacturer or your supplier to confirm exact contents before deployment.
Frequently Asked Questions
Q: Is the CHG-TC7X-CLA1-02 compatible with Zebra TC7X mobile computers?
A: Yes. The CHG-TC7X-CLA1-02 is engineered specifically for Zebra TC7X-series devices and integrates into standard docking station infrastructure used in warehouse and logistics environments.
Q: Can I use this cable cup with older Zebra mobile computer models?
A: The CHG-TC7X-CLA1-02 is designed for TC7X-series handhelds only. Older or different model lines may have different connector designs and dock mounting patterns, so cross-compatibility is not supported.
Q: What is the warranty on the CHG-TC7X-CLA1-02?
A: Warranty information is not specified in available documentation. Contact the manufacturer or your authorized supplier for warranty terms and support options.
Q: Can the cable cup be installed in my existing docking station?
A: The CHG-TC7X-CLA1-02 is designed for integration into standard docking station infrastructure. Verify your dock model and mounting interface before ordering to confirm compatibility. Some legacy docking systems may require adapter components.
Q: How often will the cable cup need replacement?
A: The cable cup is engineered for repeated charging cycles typical of warehouse environments. Lifespan depends on usage frequency, environmental conditions (dust, humidity), and connector care. No specific MTBF (mean time between failures) is available in current documentation.
Q: Does the CHG-TC7X-CLA1-02 support fast charging?
A: Charging speed depends on the power input from your docking station power supply and the TC7X battery specifications. The cable cup itself does not advertise accelerated charging — it provides reliable automated contact for standard charging rates.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CHG-TC7X-CLA1-02 auto-charging cable cup solves a real pain point in warehouse operations: connector wear and charging failures caused by manual cable insertion. In high-rotation environments where thirty or forty TC7X handhelds cycle through a dock every shift, contact degradation from misaligned connections or dust accumulation is common and costly. The auto-charging design of the CHG-TC7X-CLA1-02 eliminates the alignment step entirely, delivering consistent electrical contact and reducing per-device charging failures.
Deployment Considerations:
- Docking Infrastructure Match: The cable cup integrates into standard docking frameworks, but you must verify your dock model before ordering. Legacy docking systems or non-standard integrations may require mounting brackets or power supply adaptation — a gotcha that can delay deployment if discovered on-site.
- Contact Maintenance: Even with auto-charging, dust and moisture in warehouse environments will gradually degrade connector surfaces. Plan for periodic cleaning (dry cloth, non-abrasive) to extend contact life and prevent intermittent charging failures. This is especially important in high-dust or outdoor loading dock scenarios.
- Simultaneous Charging Budget: If you're rotating dozens of devices, ensure your dock power supply has adequate wattage for multiple concurrent charges. A undersized PSU will throttle charging speed, which defeats the purpose of rapid device turnover between shifts.
The CHG-TC7X-CLA1-02 is the right choice for warehouse and distribution operations running Zebra TC7X handhelds where device availability and rapid charging cycles are critical to daily operations. It's not a plug-and-forget component — it requires dock integration planning and periodic contact maintenance — but it meaningfully improves uptime compared to manual cable-based charging.
