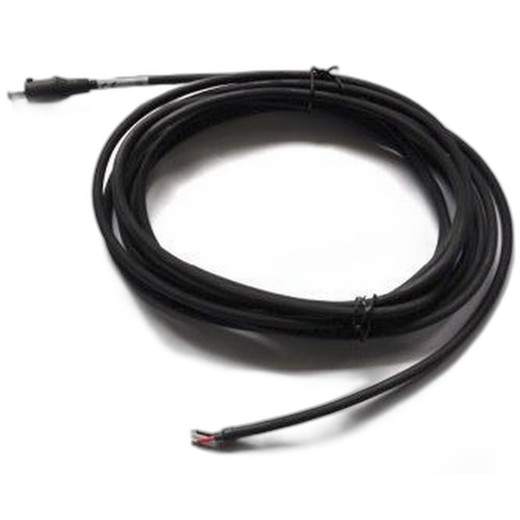

Zebra CHG-AUTO-HWIRE1-01 Hard Wired Auto Charger Cable
Overview
The Zebra CHG-AUTO-HWIRE1-01 is a bare-wire-to-DC-jack power cable purpose-built to replace cigarette lighter adapters in fleet vehicles and depot charging stations. It delivers regulated 12VDC at 4.16A directly to Zebra TC70 and TC75 mobile computers via 2-slot cradles and 4-slot battery chargers. This direct-wired approach eliminates the need for intermediate cigarette socket adapters, reducing failure points and simplifying installation in fixed locations where permanent power integration is preferred over portable adapters.
Key Features
- Country-Specific AC Line Cord: Three-wire grounded AC line cord rated 100–240V input globally — means you deploy the same cable across North America, Europe, and Asia without regional variants. No voltage stepping or regional SKU management required.
- 12VDC 4.16A Regulated Output: Delivers consistent power to both 2-slot and 4-slot cradles without voltage sag, even under simultaneous multi-device charging. Ideal for depot and field operations where stable power matters for reliable charging cycles.
- Bare Wire to DC Jack Connector: Allows direct wiring into vehicle power distribution or facility electrical infrastructure — no bulky cigarette lighter adapter hanging from the 12V socket. Cleaner installation; lower profile in tight vehicle or cabinet spaces.
- TC70/TC75 Compatibility: Works with both 2-slot and 4-slot battery chargers for the Zebra TC70 and TC75 rugged mobile computers — the standard work handhelds for warehouse, logistics, and field service fleets. Verify your cradle model before ordering; contact the original equipment vendor if you need clarification on your exact charger type.
- Eliminates Adapter Chain: Traditional cigarette lighter adapters introduce connection friction and potential points of failure. Hard wiring the CHG-AUTO-HWIRE1-01 removes one layer of connector vulnerability, especially valuable in vehicles or warehouses with frequent cable repositioning.
- Depot and Field Deployment: Scales across fleet charging stations, vehicle power rails, and stationary dock charging stands without needing multiple power adapters or outlet adapters.
Integration & Compatibility
The CHG-AUTO-HWIRE1-01 is designed specifically for Zebra TC70 and TC75 cradles. Confirm that your 2-slot or 4-slot charger accepts a DC jack input before ordering — not all Zebra cradles use the same connector type. If your fleet uses mixed cradle generations, test one cable with your cradle first to verify fit and polarity. The three-wire grounded AC cord supports both 110–120V (North America) and 220–240V (Europe, Asia, Australia) without a separate step-down transformer, though you will need a regional plug adapter if rewiring for a market outside your original installation region.
What's in the Box
- Hard wired auto charger cable with bare wire to DC jack connector
- Country-specific AC line cord (three wire grounded)
Frequently Asked Questions
Q: Will the CHG-AUTO-HWIRE1-01 work with my TC70 or TC75 mobile computer directly, or only through a cradle?
A: The cable delivers power to TC70 and TC75 exclusively through 2-slot and 4-slot cradles and battery chargers — not direct to the handheld. The device must be seated in a compatible cradle for charging.
Q: Can I use this cable in a vehicle with standard 12V power (like a cigarette lighter socket) without modification?
A: No. The CHG-AUTO-HWIRE1-01 has bare wire leads for direct hard-wiring to a 12VDC power source. It is not designed for cigarette lighter sockets. You must wire it directly to the vehicle's power distribution system or use a permanent cradle installation. Consult a vehicle electrician if you need integration guidance.
Q: What is the input voltage range, and will it work outside North America?
A: The cable accepts 100–240V AC input globally, so it works on standard facility power in North America, Europe, Asia, and Australia. The AC plug type is country-specific, so confirm your regional plug standard before installation.
Q: Is the bare wire connection safe for a vehicle or warehouse environment?
A: The bare wire leads must be connected to a secured, fused power source by a qualified electrician. Do not leave exposed wire ends unconnected. Proper installation includes strain relief, waterproofing of connections (if in a vehicle), and circuit protection upstream of the cradle.
Q: What happens if I connect the cable with reversed polarity?
A: Incorrect polarity will not charge the cradle and may damage the charger. Follow the manufacturer's polarity guidance in the datasheet before wiring. Test with a multimeter before powering any device.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CHG-AUTO-HWIRE1-01 addresses a real pain point in fleet operations: cigarette lighter adapters fail, corrode, and create a weak link in a charging supply chain. A hard-wired cable bypasses that entirely, but only if you're willing to commit to permanent installation. This is not a grab-and-go accessory; it's a depot-scale or vehicle-integration play. The 12VDC 4.16A regulated output keeps charging consistent across multiple TC70/TC75 cradles simultaneously — critical if you're running a multi-unit charger bank.
Technical Highlights:
- 100–240V Global Input: Single SKU for all regions. No step-down transformers or regional variants. Significant supply-chain simplification for enterprises with multi-country fleets.
- 12VDC 4.16A Regulated Output: Voltage regulation prevents the sag you'd see with a simple adapter. Matters when charging four devices simultaneously in a 4-slot cradle — the last unit in the daisy chain still gets proper voltage.
- Bare Wire to DC Jack: Direct integration means no intermediate connector to fail or corrode. Vehicle salt spray and warehouse humidity both degrade cheap barrel connectors; this topology removes that failure mode.
Deployment Considerations:
- Installation is Not DIY: Bare wire leads require a qualified electrician to terminate into vehicle power rails or fixed 12VDC distribution. Budget for professional wiring, fusing, and strain relief. Skip this cable if you need rapid, portable deployment across mixed vehicle fleets.
- Polarity is Critical: Reversed DC polarity will silently fail to charge and may corrupt the cradle's charging logic. Verify polarity before power-up using a multimeter. The datasheet must specify which wire is positive and negative.
- Cradle Model Confirmation: Not all Zebra cradles accept hard-wired DC jack input. Verify your 2-slot or 4-slot unit supports external DC power before committing to installation. Mixing incompatible cradle generations is a common deployment mistake.
Best for: permanent warehouse or vehicle dock charging infrastructure where TC70/TC75 cradles are fixed installations and you're tired of replacing cheap cigarette lighter adapters. Not suitable for field technicians who need portable, swap-and-go charging solutions. Requires electrical integration discipline — treat it as building infrastructure, not a plug-and-play cable.
