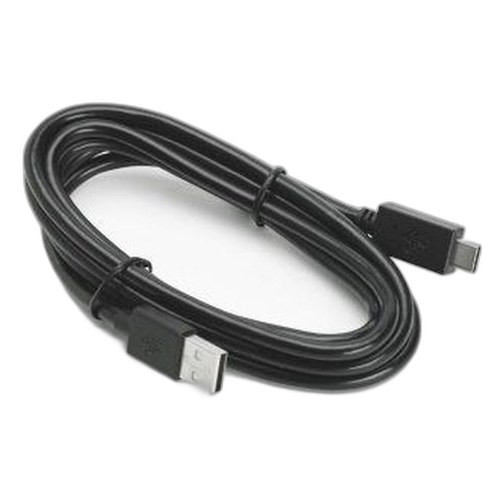

Zebra CBL-U10755-01 DS55 USB Cable 7 ft
Overview
The Zebra CBL-U10755-01 is a 7-foot wired USB cable engineered specifically for Zebra DS55 barcode scanner systems. This connectivity cable carries both data and power from the scanner to your host computer or POS terminal, eliminating the need for a separate power supply in most fixed-mount scanning environments. The cable spans 7 feet—enough to reach across a typical workstation or counter without slack pileup—making it suitable for desktop, kiosk, or integration into warehouse automation workflows where the scanner and host are a moderate distance apart.
Key Features
- USB Type A to RJ-50 Connector: One end terminates in a standard USB Type A connector for your computer or POS host; the other uses a 4-pin RJ-50 connector that mates directly to the DS55 scanner port. No adapters or intermediate cables needed—one connector pair, one deployment.
- 7-Foot Length: Spans most standard workstation layouts (roughly 2 meters). Long enough to position the scanner away from the computer without running extra cable, short enough to avoid pooling excess cordage behind the counter.
- Integrated Data and Power: The cable carries USB data signals and provides power to the DS55 scanner simultaneously, reducing clutter and eliminating the need for a dedicated external power adapter in typical stationary scanning setups.
- DS55-Specific Design: Engineered for Zebra DS55 barcode scanners only. Do not attempt to use this cable with other Zebra scanner models or third-party hardware—the RJ-50 pinout is DS55-specific.
- Fixed-Mount and Desktop Environments: Ideal for point-of-sale stations, warehouse workstations, retail counters, and light-industrial picking operations where the scanner remains stationary or mounted to a fixed position.
Integration and Compatibility
The CBL-U10755-01 (often searched as CBL U10755 01) is a direct-fit replacement or primary connectivity option for Zebra DS55 barcode scanner deployments. It connects the scanner to any computer or terminal with a standard USB Type A port—Windows PCs, industrial terminals, or POS systems running retail or warehouse management software. Because it's a simple USB cable, no special drivers or configuration are required beyond what the DS55 scanner itself needs. The cable integrates immediately into your scanning workflow: plug the RJ-50 end into the scanner, the USB end into your host, and the scanner is powered and ready to scan.
If your DS55 is mounted to a fixed arm, wall, or stand, verify that cable routing does not create sharp bends or pinches at the connector ends—this extends the cable's service life and prevents intermittent contact loss during high-volume scanning.
When to Choose a Different Model
If you need a longer cable run (beyond 7 feet), contact the manufacturer for extended-length variants. If you are integrating mobile or handheld scanners instead of fixed-mount hardware, this cable is not suitable—mobile scanners use different connector types and power topologies. For wireless scanning solutions, explore Zebra's range of cordless barcode scanner options.
Frequently Asked Questions
Q: Is the Zebra CBL-U10755-01 compatible with other Zebra scanner models?
A: No. The CBL-U10755-01 is designed exclusively for the Zebra DS55 barcode scanner. The RJ-50 connector pinout is DS55-specific. Do not attempt to connect it to other Zebra scanners or third-party devices.
Q: Does this cable provide power to the DS55 scanner?
A: Yes. The CBL-U10755-01 carries both USB data signals and power from the host computer to the DS55 scanner through the same cable. No external power supply is required in typical fixed-mount deployments.
Q: What is the maximum recommended cable length for DS55 scanning?
A: This cable is 7 feet (approximately 2 meters), suitable for standard workstation and counter layouts. For longer distances, consult Zebra documentation or contact the manufacturer for extended-length options.
Q: Can I use a standard USB cable instead of the CBL-U10755-01?
A: No. The DS55 scanner requires the RJ-50 connector on one end for the scanner port. Standard USB cables do not have an RJ-50 termination and will not mate with the scanner.
Q: Is this cable suitable for outdoor or harsh environments?
A: The CBL-U10755-01 is designed for indoor, stationary scanning environments (counters, workstations, warehouse floors). It is not rated for outdoor, washdown, or extreme temperature conditions. For harsh-environment scanning, consult Zebra's rugged scanner lineup.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CBL-U10755-01 is a straightforward connectivity component—a purpose-built 7-foot USB-to-RJ-50 cable for DS55 barcode scanner integration. Unlike generic USB cables, this one combines data and power delivery in a single run, which matters in high-throughput scanning operations where eliminating extra cordage reduces troubleshooting surface area and cable clutter around the scanning station.
Technical Highlights:
- Dual-Purpose Connector Pairing: USB Type A on the host end, RJ-50 on the scanner end. This pinout is DS55-exclusive; attempting to force it onto another model will fail immediately and may damage the scanner port.
- Integrated Power Delivery: Eliminates the need for a separate 12V or external PSU in stationary deployments. The cable draws power from the host's USB port and delivers it directly to the scanner, reducing overall system footprint.
- 7-Foot Span: Covers typical counter-to-CPU distance without requiring an extension or coupler. Longer runs require a separate cable variant; shorter runs create unnecessary slack that snags and creates trip hazards.
Deployment Considerations:
- Route the cable away from high-traffic areas and sharp edges. Repeated flexing or pinching at the RJ-50 connector end will cause intermittent scanning failures before the cable physically breaks—a common cause of ticket escalations in retail and warehouse environments.
- Verify your host system's USB port is powered and recognized before deployment. If the scanner does not enumerate after plugging in the cable, the issue is almost always a dead or disabled USB port, not the cable itself.
- This cable is **not** suitable for mobile or cordless scanner workflows. If you're evaluating a mixed environment (some fixed-mount, some handheld), the DS55 with this cable is the fixed-station solution only.
Deploy the CBL-U10755-01 in retail POS stations, warehouse workstations, and logistics hubs where the scanner remains mounted and the host is within 7 feet. For longer cable runs or multi-scanner coordination, work with your Zebra technical team to specify extended-length variants or a managed scanning infrastructure.
