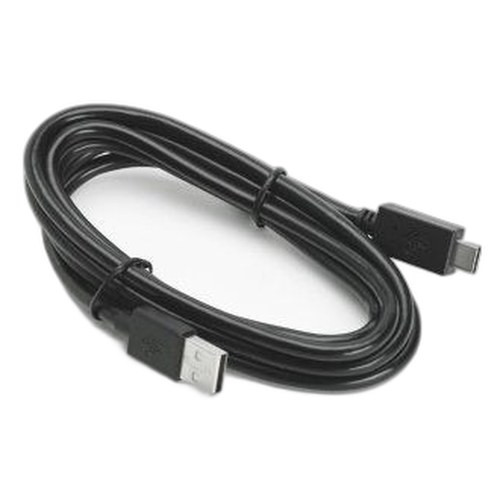

Zebra CBL-ET4X-SCHCAB-01 ET4X Charge and Communication Y Cable
Overview
The Zebra CBL-ET4X-SCHCAB-01 is a Y-configuration charge and communication cable engineered specifically for the ET4X mobile computer platform. This single cable assembly delivers simultaneous power charging and bidirectional data synchronization, eliminating the need to swap connectors or manage separate charging and communication stations. For warehouse, logistics, and field service operations where devices cycle through inventory transactions and real-time data uploads, the consolidated connection reduces operator friction and minimizes docking station complexity.
Key Features
- Y-Cable Configuration: Power and data flow through one connector to the device, cutting the number of active docking connections in half — relevant when floor space and power distribution in staging areas are constrained.
- Simultaneous Charge and Sync: Operators charge the ET4X while uploading inventory or order data without disconnecting and reconnecting. Eliminates workflow bottlenecks during shift changes or high-volume receiving cycles.
- Bidirectional Data Communication: Supports full read/write synchronization with backend systems — essential for real-time inventory updates and order fulfillment workflows where stale data creates audit and shipping risk.
- ET4X-Specific Design: Engineered connector geometry and pin configuration match the Zebra ET4X form factor precisely, ensuring reliable mating and reducing connector wear over thousands of dock cycles.
- Streamlined Infrastructure: One Y-cable per docking position means fewer separate power supplies, fewer USB/serial adapters, and simplified cable routing — lowers maintenance overhead in high-density mobile device deployments.
- Field and Warehouse Compatible: The design supports both fixed docking (receiving lanes, backroom staging) and mobile cart charging scenarios common in 3PL and last-mile operations.
Integration and Compatibility
The CBL-ET4X-SCHCAB-01 is purpose-built for the Zebra ET4X mobile computer platform. It integrates with standard docking cradles and power management systems that support the ET4X connector standard. If your operation standardizes on ET4X devices across multiple warehouses or distribution centers, this cable becomes a common consumable — uniform replacement across sites reduces spare-parts inventory complexity and training overhead. The Y-cable design pairs well with centralized charging infrastructure where multiple devices rotate through shared docking stations throughout shifts.
When to Choose a Different Configuration
If your workflow requires frequent hot-swapping of devices in rapid handoff scenarios (e.g., last-mile delivery with secondary backup devices), a separate charging dock and a dedicated communication station may reduce device turnaround time compared to the single Y-cable approach. Conversely, if devices remain docked for extended periods (overnight charging, end-of-shift synchronization), the Y-cable eliminates redundant connections and cabling clutter. For operations using older Zebra mobile computers from pre-ET4X generations, connector compatibility does not apply — verify your device model against the ET4X specification before ordering.
Frequently Asked Questions
Q: Is the CBL-ET4X-SCHCAB-01 compatible with other Zebra mobile computer platforms?
A: No. This cable is engineered specifically for Zebra ET4X devices. Attempting to use it with other Zebra models risks connector damage and data loss. Always confirm the device model before deployment.
Q: Can I use the CBL-ET4X-SCHCAB-01 for both charging and data transfer simultaneously?
A: Yes. The Y-cable design is explicitly intended for simultaneous power delivery and bidirectional data communication. This is the primary advantage over separate charging and communication cables.
Q: Does the Y-cable work with standard Zebra charging cradles?
A: Compatibility depends on the cradle model. Verify that your docking station supports the ET4X connector standard and has Y-cable compatibility before purchase. Consult the cradle's documentation or contact the equipment manufacturer.
Q: What is the typical lifespan of the CBL-ET4X-SCHCAB-01 in a high-cycle warehouse environment?
A: Connector durability in high-dock-frequency sites (50+ cycles per day per device) typically ranges 12–24 months before wear or intermittent contact appears. Keep spare cables in inventory proportional to your ET4X device count and docking frequency.
Q: Can I order multiple CBL-ET4X-SCHCAB-01 cables for different docking stations?
A: Yes. Standardizing on the CBL-ET4X-SCHCAB-01 across all ET4X docking positions simplifies spare-parts management and reduces training variation across warehouse locations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBL-ET4X-SCHCAB-01 solves a real pain point in high-velocity warehouse operations: connector management. When you're running dozens of ET4X devices through rotating shifts and multiple receiving lanes, splitting charge and data across separate stations creates single points of failure, multiplies the number of docking contacts per device, and fragments your spare-cable inventory. One Y-cable per docking position cuts that complexity in half.
Technical Highlights:
- Y-Configuration Topology: Power and data multiplexed through one connector eliminates dual-connector logistics and reduces the connector cycle count per device by 50% — meaningful when you're pushing 100+ dock cycles per week per position.
- ET4X-Optimized Connector Geometry: Engineered pin spacing and locking mechanism match ET4X form factor precisely, reducing micro-arcing and cold-solder risk that plague generic USB cables repurposed for mobile data terminals.
- Simultaneous Bidirectional Data and Power Delivery: Allows inventory data commits and power top-ups in a single dock event — cuts cycle time in staging areas where devices rotate through 4–6 times per shift.
Deployment Considerations:
- Connector Wear Monitoring: In high-frequency docking (50+ cycles/day), connector corrosion and pin looseness typically appear at 12–18 months. Build Y-cable replacement into your quarterly device maintenance rotation, not annual. Failure is gradual — unreliable data sync appears before full power loss.
- Docking Station Compatibility Verification: Not all legacy Zebra charging cradles support Y-cable inputs. Test with a single cable on one dock position before rolling out across a warehouse. Mismatched pin assignments cause silent data corruption, not obvious hardware faults.
For 3PL and regional distribution operations standardized on ET4X fleet-wide, the CBL-ET4X-SCHCAB-01 becomes a consumable item. Establish reorder thresholds (e.g., stock 1 spare cable per 8 devices, replace quarterly), build Y-cable cost into per-device throughput projections, and train dock supervisors to inspect connector condition weekly. This cable works hardest in high-cycle environments — predict failure before it degrades receiving speed.
