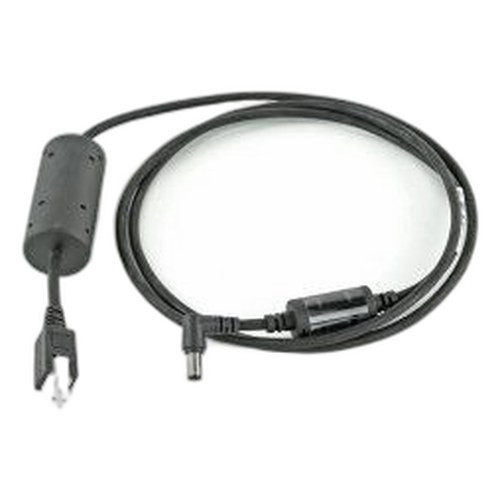

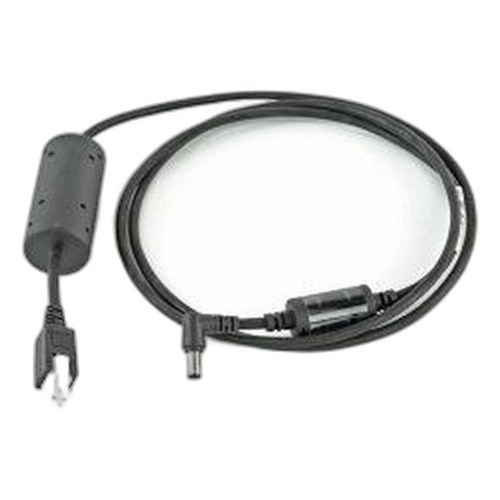

Zebra CBL-DC-451A1-01 DC Power Cable
Overview
The Zebra CBL-DC-451A1-01 is a purpose-built DC power cable engineered specifically for integration with Zebra's PWR-BGA12V50W0WW power supply unit. This cable handles power distribution to fixed-installation barcode scanners, fixed-mount imaging systems, and stationary reading devices deployed across warehouse, retail point-of-sale, and logistics automation environments. Unlike generic power cables, the CBL-DC-451A1-01 meets Zebra's connector and voltage specifications, ensuring reliable power delivery without adapter complications or voltage drop risk that can degrade scanner performance or trigger false reads.
Key Features
- Designed for PWR-BGA12V50W0WW integration: Direct compatibility with Zebra's 12V 50W power supply eliminates the need for aftermarket adapters or splitter cables. You reduce connection points and associated failure modes — fewer connectors means fewer sources of intermittent power loss in high-traffic warehouse zones.
- 12VDC power delivery: Provides consistent voltage to fixed-mount scanners and imaging devices without the voltage sag that can occur with undersized or mismatched cables. Consistent voltage directly translates to reliable barcode capture, especially critical in fast-paced picking and shipping operations where read failures trigger manual re-scans and operational delays.
- Stationary deployment focus: Optimized for fixed-position installations — wall-mounted readers, conveyor-integrated imagers, or dock-entrance scanning gates. The cable routing and connector design assume a permanent installation, not frequent field movement, so it's built for durability in one location rather than mobile flexibility.
- Warehouse and logistics environments: Suitable for temperature-controlled indoor warehouses, retail backrooms, and automated sorting facilities. Not rated for outdoor or extreme-temperature conditions; if your scanners sit in outdoor loading areas or freezer zones, verify operating temperature limits separately.
- Part of a complete power solution: Works as part of a larger Zebra fixed-installation ecosystem. When paired with compatible scanners and the PWR-BGA12V50W0WW PSU, the cable completes a tested power chain rather than introducing unknown variables.
Integration & Compatibility
The CBL-DC-451A1-01 is purpose-matched to the Zebra PWR-BGA12V50W0WW power supply unit. This cable is the connecting link between the PSU and your fixed-mount scanner or imaging device. Before ordering, confirm that your scanner model or imager accepts 12VDC input and uses a connector type compatible with this cable's output connector. If you're upgrading or replacing an older power chain, verify the cable's connector geometry against your current installation — mismatched connectors require replacement or adapters that introduce points of failure.
For scanner accessories and power distribution in warehouse automation, this cable integrates cleanly into DC power supply configurations. Consult your scanner's installation guide or contact the scanner manufacturer to confirm voltage and connector specifications before deployment.
Deployment Notes
Install this cable in a fixed location with minimal flexing. Route it away from high-traffic areas where foot traffic or moving equipment could pinch or abrade the insulation. In warehouse automation environments, secure the cable to wall, conduit, or cable trays to prevent accidental disconnection during scanner maintenance or facility changes. Test power delivery to the connected scanner after installation to confirm consistent voltage and reliable barcode reading before putting the line into production.
Frequently Asked Questions
Q: Is the CBL-DC-451A1-01 compatible with all Zebra scanners?
A: No. This cable is engineered for the PWR-BGA12V50W0WW power supply and compatible fixed-mount Zebra scanners that accept 12VDC input. Check your scanner's user manual or datasheet to confirm voltage and connector type before ordering.
Q: Can I use this cable outdoors?
A: This cable is designed for indoor warehouse, retail, and logistics environments. It is not rated for outdoor exposure, direct weather, or extreme temperature conditions. If you need outdoor power distribution, consult Zebra's outdoor-rated cable offerings or contact the manufacturer.
Q: What happens if the cable is too short for my installation?
A: Do not extend this cable with additional splitters, adapters, or mismatched extension cables. Voltage drop over extended runs or through improper adapters can cause scanner read failures or intermittent operation. If you need longer cable runs, contact Zebra or an specialty distributor to source an appropriately rated extended cable or verify daisy-chaining options for your specific scanner model.
Q: Does this cable come with mounting hardware or ties?
A: This is a cable-only product. Route and secure it using your facility's existing cable management infrastructure (wall clips, conduit, cable trays, or ties).
Q: How do I verify the cable is functioning correctly?
A: After installation, use a multimeter to check 12VDC at the connector output (if accessible) or observe your connected scanner for normal operation — consistent barcode reads, no read errors, and stable indicator lights. If your scanner shows intermittent operation or error codes after cable installation, disconnect and test with an alternative known-good power chain to rule out cable damage.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CBL-DC-451A1-01 is a straightforward but critical component in fixed-mount barcode automation. Most integrators overlook power cable selection as "commodity," but voltage consistency directly impacts read reliability — and read failures in a high-velocity warehouse cost far more than the cable itself. This cable ensures your PWR-BGA12V50W0WW supply delivers clean 12VDC to your scanning imagers without the voltage sag that generic cables introduce.
Deployment Highlights:
- Zebra-engineered connector: Purpose-built for the PWR-BGA12V50W0WW PSU and matching scanner inputs — no adapters, no guesswork about pin configuration. One connection, one failure mode eliminated.
- 12VDC fixed delivery: Stationary installations in warehouses and distribution centers demand consistent voltage. A properly sized cable prevents the 0.5–2V drops that can push marginal barcode reads into failure territory, especially critical during peak picking shifts when re-scans cascade into bottlenecks.
- Indoor warehouse rated: Designed for climate-controlled environments (dock areas, pick lines, sort zones). Not rated for outdoor or freezer exposure — if your scanner sits in a loading dock exposed to weather, this is not your cable.
Integration Considerations:
- Verify your scanner's voltage and connector type match the PWR-BGA12V50W0WW + CBL-DC-451A1-01 chain before ordering. A mismatched connector or voltage requirement wastes time and forces a re-order.
- Do not extend this cable with splitters or generic adapters. Voltage drop compounds with additional connection points — if your run exceeds the cable's native length, order a longer cable from Zebra rather than daisy-chaining adapters.
- Route the cable away from high-traffic zones. Pinched or abraded insulation in a busy warehouse becomes a power loss incident during your highest-volume picking window.
Best fit: fixed-mount conveyor scanners, dock-entrance imaging gates, and retail point-of-sale barcode readers where the cable installation is permanent and voltage consistency is non-negotiable.
