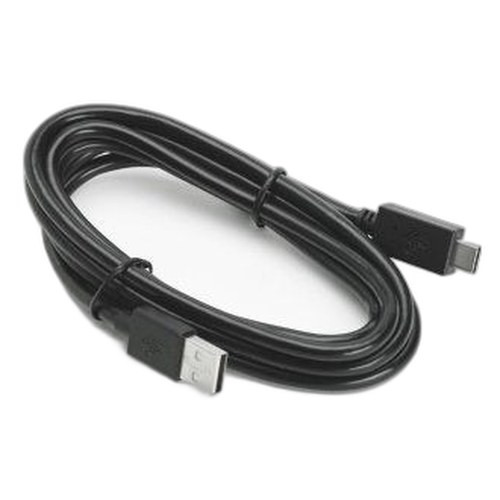

Zebra CBL-CS6-S07-0B USB-C to USB-A Cable Assembly
Overview
The Zebra CBL-CS6-S07-0B is a 7-foot wired USB-C to USB-A cable designed for charging and data transfer with Zebra mobile computers and point-of-sale equipment. The cable terminates with a 24-pin USB-C male connector on one end and a 4-pin USB Type-A male connector on the other, delivering reliable connectivity in warehouse, retail, and logistics environments. The extended 7-foot length eliminates the need for external hubs in fixed workstations and mobile device charging stations.
Key Features
- 7-Foot Cable Length — reduces reach constraints at charging hubs, docking stations, and multi-device workstations. Keeps powered peripherals and host devices separated by practical workspace distances without signal degradation.
- USB-C to USB-A Configuration — the CBL-CS6-S07-0B connects modern USB-C equipped Zebra mobile devices to standard USB-A ports on laptops, desktop computers, and powered hubs. This backward compatibility avoids forced upgrades of existing host infrastructure.
- Data Transfer and Charging Support — handles both power delivery and file synchronization simultaneously, so you can update device firmware, sync inventory data, or back up transaction logs without removing the device from the charging station.
- 24-Pin USB-C Connector — the USB-C end is robust against repeated connection cycles typical in high-traffic warehouse and retail environments. The standardized pin configuration ensures compatibility with all certified USB-C equipped Zebra mobile computers.
- White Finish — blends into standard IT and retail equipment environments. Durable sheathing resists warehouse dust and light contact wear in multi-shift operations.
- Deployment-Ready — no additional drivers or configuration required. Connect directly to any standard USB-A host port supporting data mode or power delivery.
When to Choose a Different Model
If your Zebra devices use micro-USB connectors instead of USB-C, select a micro-USB variant from the Zebra cable lineup. If you require shorter reach—under 6 feet—consider standard-length USB-C cables to reduce clutter in compact workstations. For mobile devices that charge exclusively via proprietary dock connectors, consult the specific device charging specification before purchase.
Integration & Compatibility
The CBL-CS6-S07-0B integrates with any Zebra mobile computer or POS device featuring a USB-C input port. Connect to standard USB-A ports on Windows PCs, Apple Mac systems, Linux-based kiosks, or powered USB hubs. The cable supports both data transfer protocols (Mass Storage, MTP, serial console modes) and power delivery, making it suitable for inventory management systems, field service platforms, and enterprise point-of-sale networks. When paired with multi-device charging docks, the 7-foot length accommodates scattered workstations and handheld device staging areas typical in fulfillment centers and retail locations.
Frequently Asked Questions
Q: Is the Zebra CBL-CS6-S07-0B compatible with Android and iOS tablets?
A: The cable is compatible with any Zebra device equipped with a USB-C port, regardless of operating system. Compatibility depends on the host device—ensure your computer or hub's USB-A port supports data transfer if you intend to sync files alongside charging.
Q: Can I use the CBL-CS6-S07-0B with non-Zebra USB-C devices?
A: Yes. The cable uses standard USB-C and USB-A connectors, so it will work with any USB-C equipped device and standard USB-A port. Functionality (charging speed, data protocol) depends on the connected device and host port capabilities.
Q: What is the maximum data transfer speed?
A: Data speed is limited by the USB standard supported by the host port and the connected device. Most USB-A ports on standard PCs support USB 2.0 (480 Mbps) or USB 3.0 (5 Gbps). The cable itself does not restrict speed beyond the connector standard.
Q: Will the 7-foot length cause signal loss or power delivery degradation?
A: No. The 7-foot length is well within the USB specification limit (16 feet unpowered). Charging and data transfer perform reliably at this distance. For longer runs, use a powered USB hub positioned closer to the device.
Q: Is the CBL-CS6-S07-0B certified for use in hazardous or rugged environments?
A: The cable is designed for standard warehouse, retail, and logistics use. It is not rated for submersion, extreme temperature, or explosive atmospheres. For hazardous location deployments, consult Zebra's specialized industrial cable offerings.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CBL-CS6-S07-0B hits a practical sweet spot for multi-device warehouse deployments. The 7-foot length matters more than it sounds—it eliminates the "daisy-chain hub" problem where you're forced to stack USB extenders or manage tangled short cables at a central charging station. At this length, a single cable reaches from a wall-mounted power block to a mobile computer across a workbench or checkout counter without introducing repeater hubs that add failure points.
Technical Highlights:
- 24-Pin USB-C Connector: Rated for thousands of connection cycles, the CBL-CS6-S07-0B's USB-C end tolerates the repeated plug-unplug rhythm of daily mobile device charging far better than older micro-USB designs that fail prematurely in high-touch environments.
- Dual-Mode Data and Power: Simultaneous file transfer and charging means you can sync inventory updates or apply firmware patches without stopping the charging cycle. In a 50-device fleet, this cuts maintenance windows from hours to minutes.
- Backward-Compatible USB-A Host: Your existing IT infrastructure (PC docking stations, powered hubs, legacy charging docks with USB-A outlets) doesn't require replacement. The cable bridges the Zebra device to standard host hardware.
Deployment Considerations:
- Verify your host infrastructure has USB-A ports supporting data mode, not just charging. Some older powered hubs are charge-only and will not sync data.
- The 7-foot length assumes single-cable runs from fixed charging stations. If you need to daisy-chain or route around obstacles, a powered USB 3.0 hub may be more flexible than extending this cable further.
Best suited for fixed retail point-of-sale workstations, fulfillment center device staging areas, and enterprise inventory scanners that dock regularly but remain tethered to the same charging location. Skip this cable if your mobile devices are primarily hand-carried between wireless charging mats or require field-level fast charging via proprietary dock connectors.
