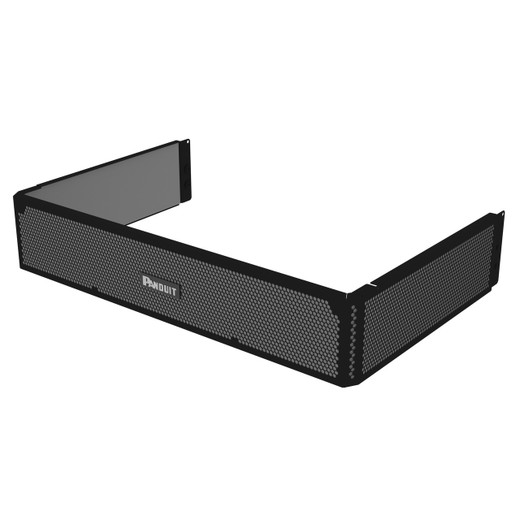

Panduit WME9BL-FKIT TrueEdge 9RU Wall Frame Air Filter Kit
Overview
The Panduit WME9BL-FKIT is a direct-fit air filter kit engineered for the PanZone™ TrueEdge™ 9RU vertical wall-mount frame — specifically the WME9BL frame. It installs directly over the top cover of the frame and delivers a NEMA 1 and IP20 environmental rating to an enclosure that would otherwise sit unrated against dust ingress. If you are running active equipment inside a wall-mount frame in a light-industrial, warehouse, or utility space where particulate accumulation is a real operational concern, the WME9BL-FKIT closes that gap without requiring a fully enclosed cabinet.
The kit ships as a single package unit (Package Qty: 1), sized at 5.56 in H × 28.74 in W (141.2 mm × 730.1 mm), matching the footprint of the 9RU TrueEdge frame opening. The filter body is steel construction, consistent with Panduit PanZone™ rack and enclosure hardware standards.
Key Features
- NEMA 1 and IP20 rating upgrade: Without this kit, the TrueEdge 9RU open frame provides no dust ingress protection. Installing the WME9BL-FKIT elevates the assembly to NEMA 1 / IP20 — meaning fingers and objects larger than 12.5 mm cannot contact internal live parts, and the enclosure is rated against light dust in dry indoor environments. That matters for switch gear and patch equipment in utility corridors where a fully enclosed cabinet is overkill but a bare open frame is undersized for the environment.
- Direct-mount over top cover: The filter installs directly over the frame's top cover — no secondary bracket fabrication, no field cutting. Correct fit is guaranteed when paired with the WME9BL frame, making the install a single-step add-on rather than a custom integration job.
- Dust and debris exclusion: The filter media captures excess dust and particulate before it can enter through the top of the frame. In environments with concrete dust, light airborne debris, or HVAC-driven particulate (typical in light industrial and telecom closet applications), this extends the service life of active equipment mounted in the frame and reduces cleaning cycles.
- Steel construction: The filter housing is steel — not plastic. That means it holds up to incidental contact in working environments without deforming, and it matches the structural material of the PanZone™ TrueEdge™ frame series it is designed for.
- Precision dimensional fit: At 28.74 in (730.1 mm) wide and 5.56 in (141.2 mm) tall, the kit is dimensioned specifically for the 9RU TrueEdge frame. This is not a universal filter — it is a model-specific accessory, which means no field trimming, no gasketing workarounds, and no compromise on the NEMA 1 seal.
- PanZone™ ecosystem integration: The WME9BL-FKIT is part of the broader Panduit PanZone™ accessories line, which means it pairs with the same cable management, blanking panels, and mounting hardware already in use in PanZone™ deployments. Standardizing on one ecosystem simplifies reordering and field serviceability.
Integration and Compatibility
The WME9BL-FKIT (often searched as WME9BL FKIT) is designed exclusively for use with the Panduit PanZone™ TrueEdge™ 9RU wall-mount frame, model WME9BL. It is not a universal filter and should not be ordered for other frame sizes or competing enclosure brands. If your installation uses a different RU count in the TrueEdge line, confirm the corresponding filter kit part number before ordering — Panduit produces frame-specific kits across the TrueEdge series.
The NEMA 1 / IP20 rating this kit delivers is appropriate for dry indoor locations. It is not rated for outdoor use, high-humidity environments, or locations subject to water spray or condensation. For those environments, a fully enclosed network enclosure with an appropriate NEMA or IP rating is the correct solution. This kit is a light-industrial indoor tool, not a weather hardening accessory.
Installation is non-invasive — no drilling into the frame, no permanent modification. The kit can be removed for frame access and reinstalled, which is consistent with how structured cabling teams manage rack enclosure accessories during MACs (moves, adds, changes).
What's in the Box
- 1x Panduit WME9BL-FKIT TrueEdge 9RU air filter kit (steel, black)
Frequently Asked Questions
Q: What frame is the WME9BL-FKIT compatible with?
A: The WME9BL-FKIT is designed specifically for the Panduit PanZone™ TrueEdge™ 9RU vertical wall-mount frame (model WME9BL). It is not a universal filter and should not be used with other frame sizes or non-Panduit enclosures.
Q: What environmental rating does the WME9BL-FKIT provide?
A: Installed on the WME9BL frame, the filter kit delivers a NEMA 1 and IP20 rating to the enclosure assembly. NEMA 1 covers dry indoor locations with protection against incidental contact; IP20 protects against solid objects larger than 12.5 mm. Neither rating covers water ingress — this is an indoor dry-location accessory.
Q: Is the WME9BL-FKIT suitable for outdoor or high-humidity environments?
A: No. NEMA 1 and IP20 are dry indoor ratings only. For outdoor or high-humidity deployments, a fully enclosed enclosure rated NEMA 4 or IP55 and above is required.
Q: What are the physical dimensions of the WME9BL-FKIT?
A: The filter kit measures 5.56 inches (141.2 mm) in height and 28.74 inches (730.1 mm) in width — dimensioned to match the 9RU TrueEdge frame opening precisely.
Q: Does the filter require tools or permanent modification to install?
A: The WME9BL-FKIT installs directly over the top cover of the WME9BL frame. Installation is non-invasive with no drilling or permanent frame modification required, making it straightforward to remove for frame access and reinstall during maintenance cycles.
Q: What is the WME9BL-FKIT made of?
A: The filter housing is steel construction, black finish, consistent with the PanZone™ TrueEdge™ frame series materials.
The WME9BL-FKIT is a straightforward accessory with a specific job: it takes the PanZone™ TrueEdge™ 9RU wall frame from a zero-rated open structure to a NEMA 1 / IP20 rated enclosure assembly. That 28.74-inch-wide steel filter cover is dimensioned precisely for the WME9BL frame — there is no field adaptation involved, which keeps the install clean and the rating valid.
Technical Highlights:
- NEMA 1 / IP20 rating: This is the primary value of the kit. An unfiltered open frame carries no ingress rating; the WME9BL-FKIT closes the top opening and brings the assembly into NEMA 1 compliance — the baseline for dry indoor commercial environments.
- Steel housing at 28.74 in × 5.56 in: The steel construction (not polymer) means the filter cover handles incidental contact from cable pulls and adjacent equipment without deflecting. The 730.1 mm width is frame-specific — not a cut-to-fit product.
- Dust exclusion function: The filter media targets particulate ingress through the top of the frame. In active telecom closets or light-industrial spaces with HVAC particulate, this directly reduces cleaning frequency on switch ports and patch panels mounted inside the frame.
Deployment Considerations:
- This kit is only valid for the WME9BL (9RU TrueEdge) frame. Ordering for a different RU count — even within the TrueEdge line — will result in a dimensional mismatch and void the NEMA 1 rating claim. Confirm the frame model before ordering.
- NEMA 1 / IP20 is a dry indoor standard only. If the wall frame is in a location subject to any moisture, condensation, or spray — mechanical room, loading dock, exterior-adjacent closet — this filter kit is not sufficient. You need a rated enclosure, not a filter add-on.
The WME9BL-FKIT is the right call for structured cabling teams standardizing on PanZone™ TrueEdge™ wall frames in light-industrial or commercial utility spaces where particulate is present but moisture is not — think manufacturing floor IDF closets, warehouse network nodes, or building automation equipment rooms where a full enclosure is excess but a bare open frame invites maintenance problems.
