Panduit WME9ERAIL TrueEdge 9RU Equipment Rail Kit
Overview
The Panduit WME9ERAIL is a two-piece steel equipment rail kit engineered to expand rack-mount capacity inside the PanZone™ TrueEdge™ WME9-series enclosures. If you're deploying NVRs, managed PoE switches, access control panels, or other 19-inch rackmount gear inside a WME9 cabinet and need additional or replacement mounting rails, this is the purpose-built solution — not a generic aftermarket part. The rails ship in a matched pair (2 pcs per package) and are finished in black to match the WME9 enclosure family.
For integrators building out Panduit infrastructure at the edge or in wiring closets, the WME9ERAIL eliminates the guesswork of sourcing compatible rails from third parties. Fit, hole alignment, and finish all match the parent enclosure spec.
Key Features
- Steel construction: Rail stock is steel throughout — not aluminum extrusion or plastic — which matters when you're mounting dense gear like network video recorders or UPS units that put real downward load on the mounting points over years of deployment.
- Dual hole pattern — threaded and cage-nut ready: The rails include both tapped (threaded) holes and cage-nut holes. That means you can mount equipment using machine screws directly into the rail, or drop in standard M6 cage nuts for gear that ships with its own cage-nut hardware. No adapters, no field-drilling.
- Adjustable depth: Rails are adjustable in the WME9 enclosure, so you can accommodate equipment with varying chassis depths without sourcing different-length rails. Useful when a mix of shallow patch panels and deeper appliances share the same cabinet.
- 9RU span: At 9 rack units, the rail kit matches the full usable height of the WME9** enclosure frame. Installing the WME9ERAIL brings that interior space to full utility — no partial coverage, no misaligned mounting rows.
- OEM fitment for WME9** series: Designed specifically for the PanZone™ TrueEdge™ WME9-family frames. If your enclosure is a WME9BL or other WME9-variant, this kit installs without modification. Third-party rails in these enclosures frequently require shimming or drilling — this does not.
- Black finish: Matches the WME9 enclosure interior, which matters in customer-facing or semi-exposed installations (retail backrooms, front-of-house AV closets, lobby security panels) where cabinet aesthetics are a consideration.
- 2-piece kit, single package quantity: Sold as a complete left-and-right rail pair. One order covers a full rail set for one enclosure — no need to track individual left and right SKUs separately.
Integration & Compatibility
The WME9ERAIL is designed for the Panduit PanZone TrueEdge enclosure line, specifically the WME9** frame series (including the WME9BL). It is not a universal rail kit and should not be ordered for other enclosure families without confirming frame compatibility with Panduit's published compatibility data. If your deployment uses a different WME-series cabinet (different RU count or frame generation), verify the correct rail part number before ordering.
For integrators building layered physical infrastructure — cabinet, rails, patch management, and PoE switches or NVRs inside — sourcing the rail kit from the same product family as the enclosure avoids the tolerance stack-up problems that come with mixing vendors at the cabinet level.
Standard 19-inch EIA rackmount equipment fits these rails. The threaded/cage-nut hole pattern is compatible with typical commercial rackmount hardware.
What's in the Box

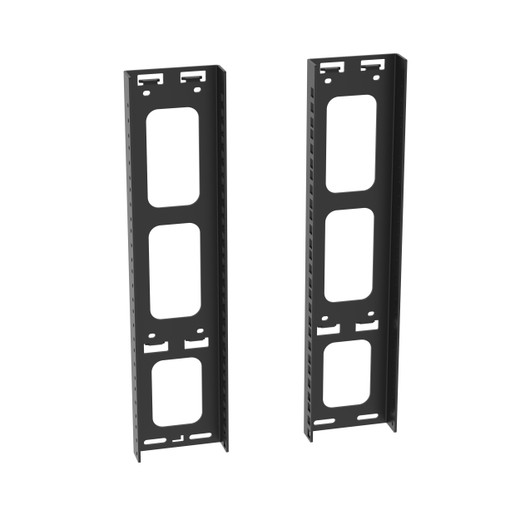

- 2x TrueEdge™ 9RU equipment rails (left and right), black steel
Frequently Asked Questions
Q: Which enclosures is the WME9ERAIL compatible with?
A: The WME9ERAIL is designed for the Panduit PanZone™ TrueEdge™ WME9-series enclosure frames (WME9**), including the WME9BL. It is not a universal rail kit — confirm your enclosure model before ordering.
Q: How many rails are included in the WME9ERAIL kit?
A: The kit includes 2 pieces — a matched left and right rail pair — sufficient for one full rail installation in a WME9-series enclosure.
Q: What hole pattern do the WME9ERAIL rails use?
A: The rails feature both threaded holes and cage-nut holes, so you can mount equipment using direct machine screws or standard M6 cage nuts depending on what your gear requires.
Q: Are the WME9ERAIL rails adjustable?
A: Yes. The rails are depth-adjustable within the WME9 enclosure frame, allowing you to accommodate equipment with different chassis depths in the same cabinet.
Q: What material are the WME9ERAIL rails made from?
A: Steel. The rails are black-finished steel, matching the WME9 enclosure family.
Q: Can the WME9ERAIL be used in non-Panduit enclosures?
A: These rails are purpose-built for the Panduit WME9** TrueEdge frame. Use in non-Panduit or non-WME9-series enclosures is not supported by the manufacturer and fit cannot be guaranteed.
The WME9ERAIL comes up when integrators are building out a WME9-series TrueEdge cabinet and discover it shipped without rails, or when they're adding a second set to expand mount capacity. The key spec here is the dual hole pattern — threaded plus cage-nut — which means this steel rail set handles nearly any standard 19-inch rackmount unit without sourcing adapter hardware on-site.
Technical Highlights:
- Steel rail construction: Unlike lighter aluminum or composite alternatives, steel rails handle the sustained downward load of dense appliances — important when you're mounting a multi-bay NVR or a heavy UPS in a cabinet that may not be serviced for years.
- Dual hole pattern: Threaded holes for direct machine screw mounting plus cage-nut slots gives installers flexibility across equipment brands without field modifications. Most commercial rackmount gear is designed for one or the other — having both eliminates the 'wrong hardware on site' scenario.
- Depth-adjustable fit: Adjustable depth in the WME9 frame means you can mount a shallow 1U switch and a deeper 2U appliance in the same cabinet using the same rail set — no secondary hardware order.
Deployment Considerations:
- This kit is designed exclusively for the WME9** TrueEdge frame series. If the enclosure on-site is a different PanZone model or a different RU count, the WME9ERAIL may not fit — pull the enclosure model number before ordering.
- The package contains exactly 2 rails (one left, one right) — enough for a single enclosure. Multi-cabinet deployments need one kit per enclosure; there is no bulk pack listed in the evidence.
The WME9ERAIL is the correct order for integrators commissioning a WME9BL or WME9-series TrueEdge cabinet where rail capacity needs to be added or replaced — particularly in distributed edge security deployments where the enclosure houses a mix of NVR, switching, and access control hardware on the same frame.
