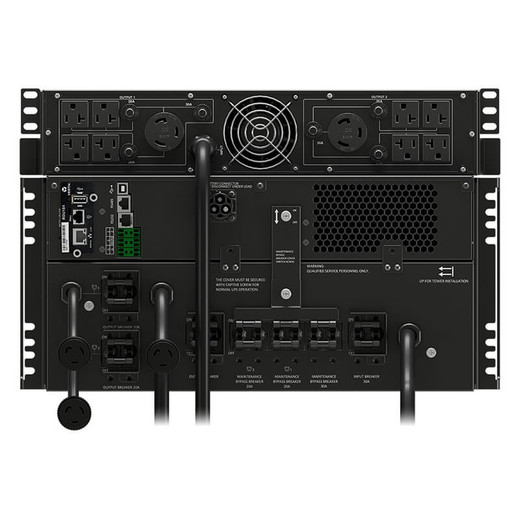

Vertiv GXT5-6000RTL630 6000VA Online Double-Conversion Rack UPS
Overview
The Vertiv GXT5-6000RTL630 is a 6000VA/4900W true online double-conversion UPS in a 5U rackmount form factor, designed for enterprise server rooms, network closets, and AV/security infrastructure where any power interruption is unacceptable. Unlike standby or line-interactive designs, the GXT5-6000RTL630 keeps your load running on clean, inverter-conditioned power at all times — utility power simply charges the battery, never directly powering your equipment. For rack UPS systems at this capacity, that architecture is the right call for sensitive electronics.
Key Features
- True Online Double-Conversion (6000VA/4900W): Your connected load never sees raw utility power. The inverter runs continuously, meaning zero transfer time on outage — critical for servers, NVRs, and storage arrays that trip on even a 10ms gap. At 4900W actual capacity, this unit handles dense 1U/2U server populations without derating concerns.
- 200–240V Input and Output: Wired for high-voltage distribution, this unit pairs with L6-30 circuits common in data closets and server rooms. If your rack runs standard 120V NEMA 5-15/20 loads, this is the wrong model — but for 208V/240V environments it eliminates the step-down transformer that line-interactive alternatives require.
- 14-Minute Runtime at Half Load: At 2450W (half of 4900W rated), expect roughly 14 minutes of battery backup — enough for a controlled shutdown sequence or to bridge a generator transfer. Full-load runtime will be shorter; plan accordingly for your shutdown scripts.
- RDU101 Network Card Included: The included RDU101 network management card lets you monitor UPS status, configure alerts, and initiate graceful shutdowns remotely — no separate card purchase required. This matters for unmanned equipment rooms where you need SNMP visibility into runtime and load percentage.
- 5U Rackmount, 149 lbs: At 16.9″ × 8.5″ × 22.6″ and 149 lbs, this is a two-person installation. Rail kit is included. Verify your rack's weight rating and rail depth before deployment — 22.6″ depth clears most standard 4-post racks but is tight in older 2-post open frames.
- Rail Kit and Full Accessories Included: Ships with RDU101 netcard, rack rail kit, and original packaging — no additional accessory orders needed to get operational.
Integration and Compatibility
The GXT5-6000RTL630 targets existing Vertiv enterprise infrastructure deployments. Vertiv's documentation notes two 6kVA L6-30 models: this SKU (GXT5-6000RTL630) was designed for customers already in the Vertiv ecosystem, while the GXT5-6KL630RT5UXLN targets new installations. Both share the same core architecture, but accessory and firmware compatibility may differ — confirm with your Vertiv support contact if mixing generations. For PoE network switches and NVR arrays drawing 208V, this unit provides the runtime buffer and power conditioning needed to protect investments in network video recorders and associated infrastructure. Consult a UPS sizing guide to match battery runtime to your actual wattage draw before ordering.
Frequently Asked Questions
Q: What is the output voltage and plug type on the GXT5-6000RTL630?
A: The GXT5-6000RTL630 outputs 200–240V via an L6-30 receptacle configuration, making it suited for high-voltage data center and server room circuits.
Q: Does the GXT5-6000RTL630 include a network management card?
A: Yes. The unit ships with the RDU101 network card, enabling SNMP-based monitoring, remote shutdown, and alerting without a separate card purchase.
Q: What is the runtime at full load vs. half load?
A: At half load (approximately 2450W), runtime is approximately 14 minutes. Full-load runtime will be lower; plan your shutdown automation accordingly.
Q: Is the GXT5-6000RTL630 a true online UPS or line-interactive?
A: It is a true online double-conversion UPS. The load always runs from the inverter — there is zero transfer time on a utility outage.
Q: What rack space and weight should I plan for?
A: The unit occupies 5U and measures 22.6″ deep, weighing 149 lbs. A two-person install is required; verify your rack's weight capacity and rail depth before mounting.
Q: What is the warranty on the GXT5-6000RTL630?
A: The GXT5-6000RTL630 carries a 1-year manufacturer warranty.
The GXT5-6000RTL630 is the model I recommend when an existing Vertiv account has a 208V high-density rack and needs a proven online UPS without retooling their power distribution. The double-conversion topology means 4900W of load runs on inverter output 100% of the time — not just during outages — which eliminates the voltage sags and frequency deviations that trip modern server PSUs and NVR storage controllers during brownouts.
Technical Highlights:
- 4900W Continuous Rating: At 6000VA with an 0.82 power factor, the 4900W real-power ceiling handles a fully populated 2U server + NVR array without derating. Most competing 6kVA units rate closer to 0.9 PF — Vertiv's conservative rating means the 4900W number is reliable, not theoretical.
- RDU101 Network Card: Included out of the box, not an add-on. This enables SNMP v1/v3 polling, email alerting, and graceful OS shutdown via the Liebert MultiLink or third-party NMS — a real operational difference for unmanned server closets.
- 14-Minute Half-Load Runtime: At 2450W, you get roughly 14 minutes — enough for an orderly shutdown sequence on a 10-node environment. Size your shutdown scripts to complete in under 10 minutes to leave margin for generator transfer delay.
Deployment Considerations:
- At 149 lbs and 22.6″ depth, this requires two people and a rack with verified weight rating. Measure your rail depth before ordering — shallow 2-post racks will not support this unit safely.
- This SKU targets existing Vertiv enterprise customers; the companion model GXT5-6KL630RT5UXLN is the new-customer variant. Accessory and extended battery module (EBM) compatibility differs between the two — confirm your EBM part numbers before purchasing additional runtime.
Best fit: a 5U slot in a co-lo cage or enterprise server room running 208V distribution, where the existing Vertiv EBM inventory and RDU101-based NMS are already in place and a zero-transfer-time UPS is a hard requirement.
