Vertiv GXT5-5KL630TF6000 6000VA Online UPS and Transfer Distribution Unit Bundle
Overview

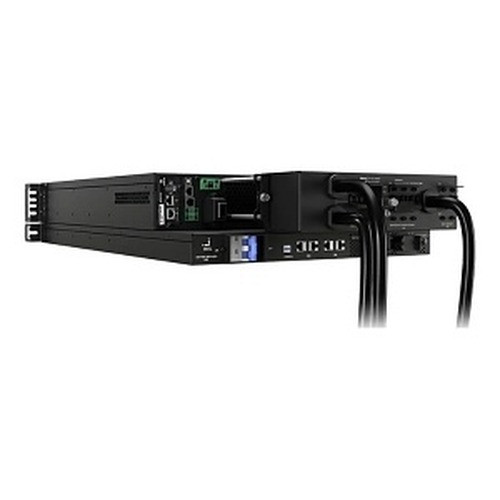

The Vertiv GXT5-5KL630TF6000 pairs the GXT5-5KL630RT3UXLN online double-conversion UPS with the TDU-6000RTL630 transfer distribution unit — a factory-matched bundle designed for commercial and data center environments running on 230 VAC infrastructure. At 6000 VA and 6000 W, this is a unity power-factor system, meaning the watt rating equals the VA rating and you can load it fully without worrying about the typical 0.8 derating that affects older UPS designs. That matters when you are provisioning rack power for dense server or surveillance NVR/storage loads where every watt counts.
The GXT5-5KL630TF6000 (often searched as GXT5 5KL630TF6000) accepts 230 VAC input and delivers selectable output at 200, 208, 220, 230, or 240 VAC — giving facilities teams the flexibility to serve mixed equipment without rewiring or adding step-down transformers. Online double-conversion architecture means the load runs from inverted battery power continuously, so input anomalies (sags, swells, frequency drift) are isolated from connected equipment by default — not just during a full outage.
Key Features
- 6000 VA / 6000 W at Unity Power Factor: No derating headroom required — a 6000 W load is the rated ceiling, which simplifies capacity planning for high-density racks compared to 0.8-PF designs that cap usable watts at 4,800 W on the same VA rating.
- Multi-Voltage Output (200–240 VAC): Selectable output across five voltages from a single unit reduces the number of UPS models you need to stock in mixed-voltage environments and eliminates the need for external step-down transformers for 208 V equipment on a 230 V circuit.
- 230 VAC Single-Phase Input: Designed for standard European and international single-phase distribution — integrates directly with 230 V PDU infrastructure without additional conversion hardware.
- Bundled TDU-6000RTL630: The included transfer distribution unit extends outlet capacity and provides a single managed power distribution point, reducing cabling complexity in the rack versus sourcing the UPS and PDU/TDU separately.
Integration and Compatibility
As a 230 VAC system, the GXT5-5KL630TF6000 is suited for international deployments and facilities standardized on European electrical infrastructure. The multi-voltage output range allows it to serve both legacy and modern equipment in the same rack. Verify your load's input voltage requirements against the available output settings before commissioning. For North American 120 V or 208 V three-phase environments, consult the broader Vertiv UPS lineup for regionally appropriate models.
Frequently Asked Questions
Q: What is the difference between the GXT5-5KL630RT3UXLN and the GXT5-5KL630TF6000?
A: The GXT5-5KL630RT3UXLN is the standalone UPS unit. The GXT5-5KL630TF6000 is a bundle SKU that includes both the GXT5-5KL630RT3UXLN UPS and the TDU-6000RTL630 transfer distribution unit packaged together.
Q: What input voltage does the GXT5-5KL630TF6000 require?
A: The unit requires 230 VAC single-phase input. It is not designed for North American 120 V circuits without additional infrastructure changes.
Q: Can the GXT5-5KL630TF6000 power equipment rated for 208 V or 240 V?
A: Yes. The selectable output covers 200, 208, 220, 230, and 240 VAC, so it can serve equipment with different voltage requirements from a single unit.
Q: Is this a true online UPS or a line-interactive design?
A: The GXT5 series uses online double-conversion architecture. The load runs continuously from the inverter, providing complete electrical isolation from input anomalies — not just a switchover during full outages as with line-interactive designs.
Q: What is the power factor of the GXT5-5KL630TF6000?
A: The unit operates at unity (1.0) power factor, meaning the 6000 VA and 6000 W ratings are equivalent. You can draw the full 6000 W without the derating that applies to 0.8 power-factor UPS designs.
The GXT5-5KL630TF6000 is one of the cleaner bundle options I have seen in this power class — pairing the GXT5 online UPS with a matched TDU in a single SKU removes a procurement step and ensures the distribution unit is sized to the UPS output from day one. The unity power factor is the spec I always point to first: at 6000 VA and 6000 W, you are not leaving 1,200 watts of theoretical capacity unusable the way a 0.8-PF design would force you to.
Technical Highlights:
- Unity Power Factor (6000 VA = 6000 W): Eliminates the 20% watt-derating penalty common on older UPS designs — a full 6 kW of usable capacity simplifies load planning for dense NVR or server racks.
- Multi-Voltage Output (200–240 VAC): Five selectable output voltages from a single unit means you can serve mixed equipment without external step-down transformers — real value in international or multi-standard facilities.
- Online Double-Conversion: The load runs from the inverter continuously, so voltage sags, surges, and frequency drift on the input side are invisible to connected equipment — not just during hard outages.
Deployment Considerations:
- This is a 230 VAC input system — confirm your distribution panel and PDU upstream feed match before ordering. It will not run on a North American 120 V circuit as-is.
- The 217 mm dimension listed is likely a depth or height measurement for a single component; confirm full rack unit height and depth against your cabinet specifications before installation, as exact rack footprint data is not fully documented in available evidence.
This bundle is well-positioned for international data center edge deployments, co-location suites, and enterprise security operation centers standardized on 230 V infrastructure — anywhere you need guaranteed clean power for NVRs, servers, or storage arrays and want the UPS and distribution unit sourced as a matched pair.
