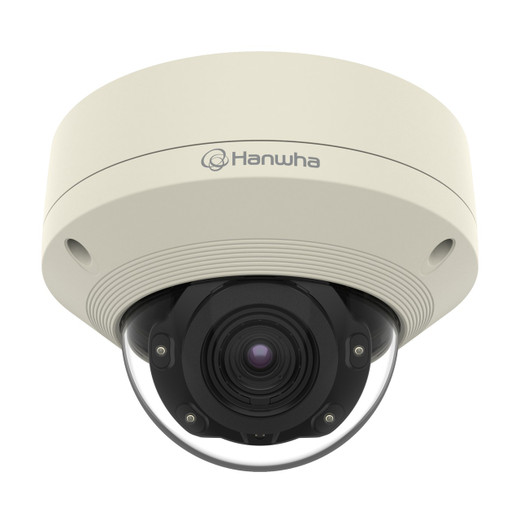

Hanwha XNV-8080RB 5MP Outdoor Vandal Dome Camera

The Hanwha XNV-8080RB is a professional-grade 5MP outdoor dome camera built for hostile environments and critical infrastructure protection. Built on Hanwha's Wisenet X platform, this vandal-resistant camera delivers high-resolution imaging, extended infrared coverage, and advanced analytics in a rugged IP67/IK10-rated housing. Ideal for perimeter security, campus surveillance, and facility protection where durability and performance cannot be compromised.

Key Features

• 5MP Resolution at 30 fps — Sharp detail capture across wide deployment areas with smooth real-time and recorded playback performance
• Motorized Varifocal Lens (2.4x zoom, 3.9–9.4mm) — Field of view ranges from 92.1° (wide) to 38.7° (telephoto), enabling flexible scene framing without camera repositioning
• IR Night Vision with 164ft Range — Dual high-output IR LEDs deliver true day/night capability and extended low-light detection for round-the-clock surveillance
• 120dB Wide Dynamic Range (WDR) — Captures detail in mixed lighting conditions, handling both bright sunlight and deep shadows simultaneously
• H.265 Video Compression — Superior codec efficiency reduces bandwidth and storage consumption by up to 50% compared to H.264
• Advanced Video Analytics — Sound classification and intelligent video analytics enable proactive threat detection and operational insights
• IP67 & IK10 Rated Design — Fully sealed against dust and water ingress; vandal-resistant construction withstands physical impact and harsh weather
• PoE-Powered — Single power and network connection via PoE simplifies installation and reduces infrastructure costs
• Dual microSD Card Slots — Local backup storage for critical footage and offline archive capability

Technical Specifications

• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• Mount Options: Ceiling and wall mounting
• Environmental Rating: IP67 (dust/water protection), IK10 (vandal resistance), NEMA 4X
• Protocol Support: ONVIF-compatible for multi-platform VMS integration
• Power Consumption: PoE

Applications

Ideal for outdoor surveillance in challenging environments including perimeter fencing, parking facilities, transit stations, utility infrastructure, retail properties, and campuses. The combination of motorized zoom, extended IR range, and rugged construction makes this camera well-suited for deployments requiring flexible field-of-view adjustment without camera relocation and maximum durability against environmental stressors and intentional tampering.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-8080RB delivers professional-grade outdoor surveillance with intelligent design choices for real-world deployment. The motorized varifocal lens eliminates costly field adjustments—focus and zoom are USB-configurable. H.265 compression is critical for high-resolution outdoor systems where bandwidth and storage are constrained.

The 164ft IR range significantly outperforms fixed-lens alternatives, essential for large perimeter coverage. WDR performance at 120dB handles the most demanding mixed-lighting scenarios—parking lots, building facades with reflective surfaces, and transitional zones between sunlight and shadow. IK10 rating (withstands 20J impact) and IP67 sealing provide genuine outdoor resilience; NEMA 4X adds corrosion resistance for coastal and industrial settings.

PoE delivery simplifies infrastructure and reduces installation complexity. Sound classification analytics add operational value for detecting threats like breaking glass or forced entry. ONVIF compatibility ensures integration with third-party VMS platforms.

This camera represents excellent value for security professionals who prioritize durability and intelligent feature deployment over marginal megapixel increases.

Available in White.
