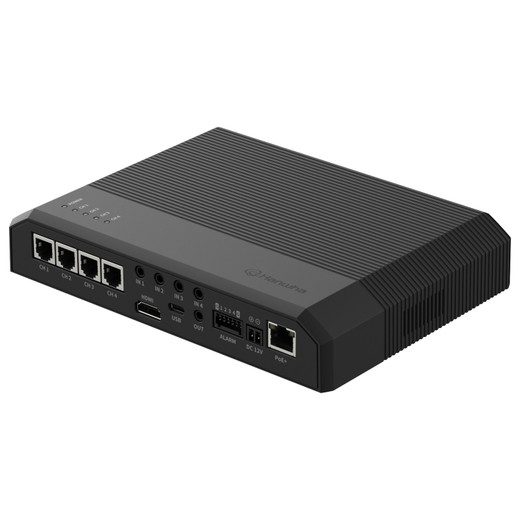

Hanwha EN-DS200-0A Wisenet SKY Local Display Station

The Hanwha EN-DS200-0A is a dedicated local display station built for the Wisenet SKY cloud-managed platform — purpose-built for operators who need high-resolution camera monitoring on-premise without routing video through the internet. It drives either a single 4K monitor or two simultaneous 1080p displays, giving control room and security desk deployments a clean, low-latency view sourced directly from the local network. If you're running a Wisenet SKY deployment and need a wall- or desk-mounted display node that keeps live video off the WAN, this is the hardware designed for that job.

Overview

The EN-DS200-0A fills a specific role in the Wisenet SKY ecosystem: it decouples local display from cloud bandwidth. Large-venue and enterprise deployments on cloud-managed VMS often face a tradeoff — cloud management is operationally convenient, but routing live display through the internet creates latency, bandwidth cost, and a single point of failure for the video wall. The DS200 resolves that by pulling camera streams directly on the LAN and rendering them locally, while the broader Wisenet SKY system continues to handle recording, management, and remote access. This is not a standalone NVR — it is a display-only appliance that works in conjunction with a Wisenet SKY infrastructure.

Key Features

• Dual HDMI Outputs with 4K Support: Connect a single 4K monitor for full-resolution detail on a command display, or split across two 1080p monitors for a wider camera grid view — useful at reception desks or multi-screen guard stations where a single operator monitors multiple camera groups simultaneously.
• Local Network Display (No Internet Required): Camera streams are pulled from the local LAN and rendered on-site. This matters for deployments with limited upstream bandwidth or compliance requirements that restrict off-site video egress during live monitoring.
• Grouped Camera Configuration: Assign and display groups of cameras across connected monitors. This lets you organize views by zone — for example, perimeter cameras on one screen and interior corridors on another — without reconfiguring the broader VMS layout.
• Wisenet SKY Platform Integration: Designed specifically for the Wisenet SKY cloud VMS ecosystem. It is not a generic ONVIF display device — if your site is already on Hanwha Wisenet SKY, the EN-DS200-0A integrates without additional configuration overhead.
• Lower-Bandwidth Monitoring Path: By rendering locally rather than streaming through the cloud, the DS200 reduces WAN load on active monitoring sessions — a real consideration on multi-site deployments where each location's uplink is shared with business operations. For context on designing bandwidth-efficient deployments, see the network video recorder and display planning resources.

Integration & Compatibility

The EN-DS200-0A is designed for the Wisenet SKY platform. A sibling model, the EN-DS100-0a, provides single-monitor output at a lower price point — the right pick when dual-display isn't required. The retail-channel equivalent, SKY-DS200-0a, covers the same hardware but is sold through different distribution channels; both carry the same dual-HDMI, 4K-or-dual-1080p output spec. This unit does not replace a cloud management subscription — it is a hardware add-on within an existing Wisenet SKY deployment. Consider pairing with appropriate PoE network switches to ensure the local LAN segment delivering camera streams has adequate throughput for your channel count.

Frequently Asked Questions

Q: Does the EN-DS200-0A require an active internet connection to display cameras?

A: No. The DS200 pulls camera streams from the local network and renders them on connected monitors without requiring an internet connection for the live display function. Cloud management for recording and system configuration remains internet-dependent.

Q: What monitor outputs does the EN-DS200-0A support?

A: Two HDMI outputs. You can drive a single 4K monitor at full resolution, or connect two 1080p monitors simultaneously for a split-view camera grid.

Q: Is the EN-DS200-0A a standalone NVR or recorder?

A: No. It is a display-only station designed to work within an existing Wisenet SKY cloud VMS deployment. Recording is handled separately by the Wisenet SKY platform infrastructure.

Q: What is the difference between the EN-DS200-0A and the EN-DS100-0a?

A: The EN-DS100-0a is the single-monitor variant. The EN-DS200-0A adds a second HDMI output and 4K monitor support, making it the right choice when operators need dual displays or a single 4K view.

Q: What is the difference between the EN-DS200-0A and the SKY-DS200-0a?

A: Both are Hanwha Wisenet local display stations with the same dual-HDMI, 4K-capable output spec. The EN-DS200-0A is the Wisenet SKY enterprise-channel variant; the SKY-DS200-0a is the equivalent sold through retail VMS channels. Confirm with your Wisenet SKY account team which part number is correct for your distribution channel.

Karl Wilson

The EN-DS200-0A solves a real architectural gap in cloud-managed surveillance: you want centralized management in Wisenet SKY, but you cannot afford to route live display traffic through the WAN — especially at camera-dense sites where upstream bandwidth is already constrained. The DS200's local LAN rendering keeps monitoring latency low and WAN load predictable without pulling the site off the cloud platform.

Technical Highlights:

• Dual HDMI / 4K Output: Single 4K or dual 1080p — this alone justifies the hardware vs. trying to repurpose a general-purpose PC as a display node. Consistent output without driver management overhead matters in unmanned or lightly staffed security rooms.
• Local Network Stream Pull: Video rendering on the LAN means the display keeps working even during cloud connectivity interruptions — the streams are already on-site. For sites with unreliable WAN links, this is a resilience feature, not just a bandwidth play.
• Camera Group Configuration: Assigning camera groups to specific monitors lets you pre-bake operator view layouts — perimeter on left, interior on right — that persist across shift changes without operators reconfiguring the view manually.

Deployment Considerations:

• This is a Wisenet SKY platform-specific device — it is not a generic ONVIF display appliance and will not function as a standalone viewer outside that ecosystem. Confirm your site is on Wisenet SKY before specifying the EN-DS200-0A (often searched as EN DS200 0A).
• The DS200 is a display-only node, not a recorder. If the site has a recording gap or needs local failover recording, a dedicated Wisenet SKY CMVR or bridge device (such as the EN-BR324-0) handles that role separately.

For enterprise retail, campus, or multi-building Wisenet SKY deployments where security staff need a dedicated local monitoring station — and WAN-routed live display is not viable — the EN-DS200-0A is the right hardware to specify. It is not a fit for sites without an existing Wisenet SKY subscription or for integrators looking for a generic IP camera display appliance.
