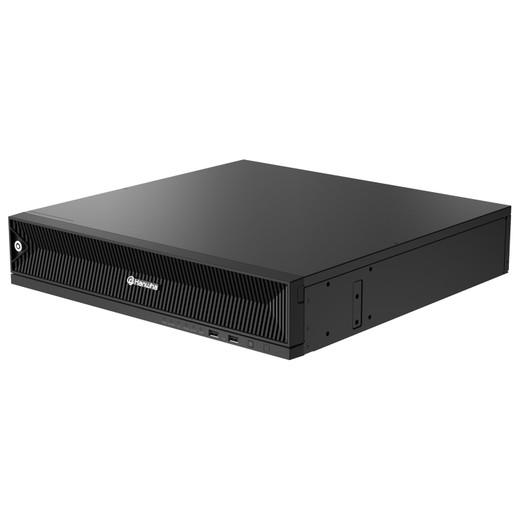

Hanwha EN-BR320-0 Wisenet SKY CMVR 320 4TB Rack Cloud-Managed Video Recorder
Overview
The Hanwha EN-BR320-0 is a rack-mounted Cloud Managed Video Recorder (CMVR) from Hanwha's Hanwha Vision surveillance line, positioned within the Wisenet SKY platform as an entry point in the rack-form-factor CMVR family. It ships with 4TB of onboard storage and supports PoE (802.3af) connectivity, making it a manageable fit for small-to-mid-size deployments where centralized, cloud-supervised recording is the architecture of choice.
The "320" designation in the Wisenet SKY CMVR family places this unit below the 420 (10TB rack) and well below the enterprise-tier 520 (40TB RAID 5) and 620 (64TB RAID 5) models — useful framing when sizing storage at the quoting stage. If you are browsing network video recorders, the EN-BR320-0 is the right starting point for rack-based Wisenet SKY deployments that don't yet require RAID redundancy or expanded storage capacity (often searched as EN BR320 0).
Key Features
- 4TB Onboard Storage: Enough headroom for multi-camera retention at standard resolutions without immediately requiring external expansion — though deployments running high-resolution streams 24/7 across many cameras should model their retention carefully before committing to this tier.
- Rack Form Factor: Designed for installation in a standard equipment rack, which simplifies cable management and keeps the recorder co-located with network infrastructure — a cleaner fit for IT-managed environments than desktop or compact units.
- PoE (802.3af) Connectivity: Standard 802.3af PoE support means cameras can draw power over the same cable carrying video, reducing the need for separate power runs. Note that 802.3af caps at 15.4W per port — verify that any cameras you intend to connect fall within that budget. For higher-draw PTZ or multi-sensor cameras, confirm PoE+ (802.3at) requirements before deploying.
- Wisenet SKY Cloud Management: As part of the Wisenet SKY platform, this recorder is designed to be managed centrally via the cloud, reducing the need for on-site VMS server infrastructure. This is the defining architectural advantage over a traditional NVR — remote provisioning, health monitoring, and configuration changes without a truck roll.
- Scalable Family: The Wisenet SKY CMVR line spans from compact ruggedized units (EN-BR325-0 with 4 PoE ports) to enterprise-rack configurations (EN-BR620-0, 64TB RAID 5). The EN-BR320-0 slots in at the entry rack tier, so you have a clear upgrade path if storage or channel demands grow. Pair with a PoE switch to expand camera connectivity beyond what the unit itself handles.
Integration and Compatibility
The EN-BR320-0 is built for the Wisenet SKY ecosystem. Deployments integrating cameras outside the Hanwha Wisenet line should verify cloud management compatibility before committing — Wisenet SKY's value proposition depends on tightly managed camera-to-cloud workflows. For sites already standardized on Hanwha Wisenet cameras, this recorder drops in as the expected central hub. Consult the video surveillance planning guide when sizing storage per channel and retention window.
When to Choose a Different Model
If your deployment requires RAID 5 redundancy for storage fault tolerance, step up to the EN-BR520-0 (40TB RAID 5) or EN-BR620-0 (64TB RAID 5) in the same Wisenet SKY family. If rack space is constrained or you need a compact ruggedized unit with integrated PoE ports, the EN-BR325-0 is the compact/ruggedized alternative. For larger storage at the rack tier without RAID, the EN-BR420-0 (10TB) offers more headroom at the next tier up from the EN-BR320-0.
Frequently Asked Questions
Q: What is the difference between the EN-BR320-0 and the EN-BR325-0?
A: The EN-BR320-0 is a rack form factor CMVR with 4TB of storage. The EN-BR325-0 is a compact, ruggedized form factor with 2TB of storage and 4 integrated PoE ports — a better fit for sites where rack space is unavailable or a ruggedized enclosure is required.
Q: Does the EN-BR320-0 require a separate VMS server?
A: No. As a Wisenet SKY CMVR, it is designed to operate under cloud-based management, eliminating the need for a traditional on-premises VMS server. Management is handled through the Wisenet SKY cloud platform.
Q: What PoE standard does the EN-BR320-0 support?
A: The EN-BR320-0 supports PoE (802.3af). This standard delivers up to 15.4W per port. If your cameras require PoE+ (802.3at) at up to 30W, verify compatibility before deployment or use a PoE+ capable switch to supply the additional power.
Q: How does the EN-BR320-0 compare to higher-tier models in the Wisenet SKY CMVR family?
A: The EN-BR320-0 is the entry-level rack unit with 4TB of single-drive storage and no RAID. The EN-BR420-0 steps up to 10TB, while the EN-BR520-0 (40TB) and EN-BR620-0 (64TB) both include RAID 5 for storage redundancy. Choose accordingly based on retention requirements and fault-tolerance needs.
Q: Is the EN-BR320-0 suitable for outdoor installation?
A: No. This is a rack-mounted indoor unit intended for installation in a controlled environment such as a server room or equipment closet. It is not rated for outdoor or harsh-environment installation.
The EN-BR320-0 is a focused entry point into the Hanwha Wisenet SKY rack-based CMVR line — 4TB of onboard storage in a rack form factor with 802.3af PoE support. For integrators quoting their first Wisenet SKY deployment at the rack tier, this unit establishes the baseline before the step up to the 10TB EN-BR420-0 or the RAID-protected enterprise models.
Technical Highlights:
- 4TB Storage at Entry Rack Tier: Provides a workable retention window for a modest camera count at standard resolutions — plan your channel count and resolution targets against actual retention math before committing to this tier rather than the 10TB EN-BR420-0.
- 802.3af PoE: Standard PoE at up to 15.4W per port covers the majority of fixed Wisenet cameras. Higher-draw devices — multi-sensor panoramic cameras, PTZs — will need PoE+ (802.3at) from a dedicated switch rather than this unit alone.
- Rack Form Factor: Designed for co-location with network infrastructure in a standard rack enclosure, which simplifies structured cabling and keeps recorder management alongside switch and router infrastructure in IT-managed facilities.
Deployment Considerations:
- Wisenet SKY CMVRs are cloud-managed by design — confirm that the site's network policy allows the outbound cloud traffic the platform requires. Highly restricted or air-gapped environments may not suit this architecture without additional network configuration.
- The EN-BR320-0 carries 4TB without RAID — a single drive failure means data loss. If the deployment cannot tolerate that risk, specify the EN-BR520-0 or EN-BR620-0 with RAID 5 instead.
This unit is the right call for a small-to-mid-size commercial site — retail locations, small office complexes, branch facilities — already committed to the Wisenet SKY cloud management model where the rack form factor fits and 4TB covers the required retention window without overbuying into RAID-protected tiers.
