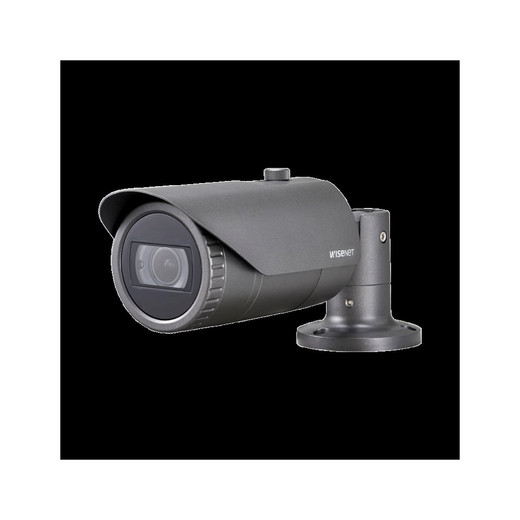

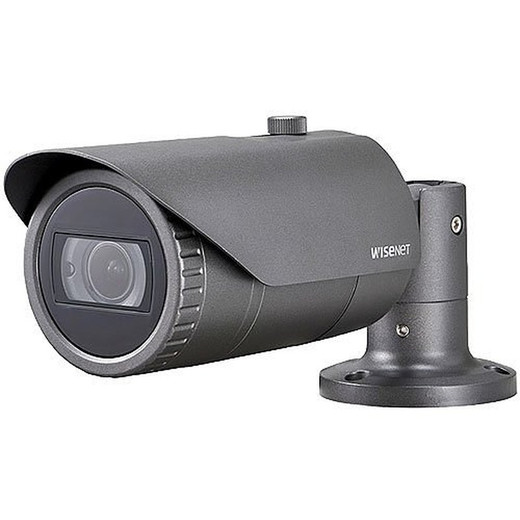

Hanwha HCO-6080R 2MP IR Bullet Camera

Hanwha HCO-6080R 2MP IR Bullet Camera

The Hanwha HCO-6080R is a professional-grade analog IR bullet camera engineered for outdoor surveillance deployments requiring exceptional weatherproofing and extended infrared night vision. This Wisenet HD+ model delivers 2MP Full HD resolution across multiple analog transmission standards (AHD, TVI, CVI, CVBS), making it an ideal choice for integrators upgrading or retrofitting analog systems while maintaining coaxial infrastructure compatibility.

Key Features

• 2MP Full HD Resolution at 30 fps — Captures detailed video at NTSC/PAL frame rates, suitable for motion-heavy environments and continuous recording applications
• 3.2–10mm Motorized Varifocal Lens with 3.1x Zoom — Enables remote focus and zoom adjustment for field optimization without camera repositioning, critical for perimeter coverage
• 120 dB True Wide Dynamic Range (WDR) — Balances bright and dark areas simultaneously, essential for mixed lighting conditions at entrances, loading docks, and outdoor/indoor transitions
• Day/Night with ICR Technology — Automatic infrared cut-off filter removal switches between color mode and full monochrome IR mode for zero-lux performance
• 98-Foot (30-Meter) IR LED Range — Delivers visible infrared illumination across typical perimeter distances without external lighting infrastructure
• IP66 and IK10 Certifications — Sealed against dust and water jets (IP66) and resistant to impact vandalism (IK10); compliant with IEC 60529 and IEC 62262 standards

Technical Specifications

• Minimum Illumination: 0.11 Lux @ F1.6 (color mode); 0 Lux (monochrome with IR LED on)
• Operating Temperature Range: -30°C to +60°C (-22°F to +140°F), ensuring year-round outdoor performance
• Power Consumption: 5.8W max (24VAC or 12VDC compatible)
• Motion Detection Analytics: Built-in motion detection for event-triggered recording and alerts
• Coaxial Protocol Support: ACP, TCP, and CCP protocols for flexible system integration

Applications

The HCO-6080R excels in perimeter security, facility monitoring, parking lot surveillance, and outdoor access control installations. Its robust construction and extended IR range make it suitable for remote locations, industrial sites, and environments subject to weather exposure or potential impact damage. The varifocal lens and WDR technology adapt to varied outdoor lighting scenarios without system reconfiguration.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HCO-6080R represents solid analog-domain performance for organizations with established coaxial infrastructure. Its multi-protocol support (AHD/TVI/CVI/CVBS) mitigates vendor lock-in and enables mixed-vendor deployments. The 30-meter IR range and 0 Lux capability deliver reliable night vision without auxiliary lighting, reducing operational costs.

WDR performance at 120 dB handles high-contrast outdoor scenes effectively. However, integrators should note the 2MP ceiling—for higher resolution or IP-native deployments, hybrid or pure IP solutions may offer better long-term scalability. The -30°C to +60°C operating range ensures reliability in extreme climates, and IK10 rating provides robust vandalism resistance.

Power efficiency at 5.8W max supports long cable runs with standard 24VAC supplies.
