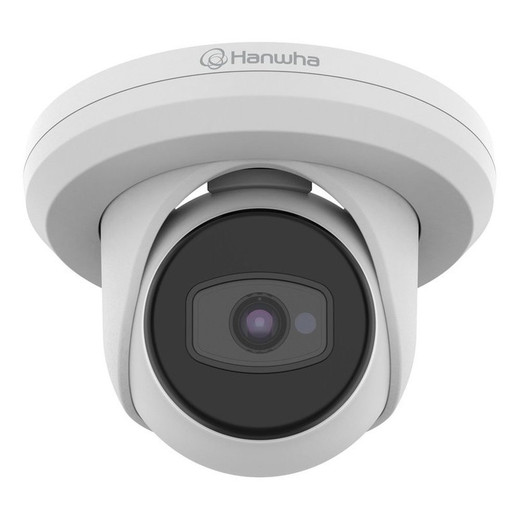

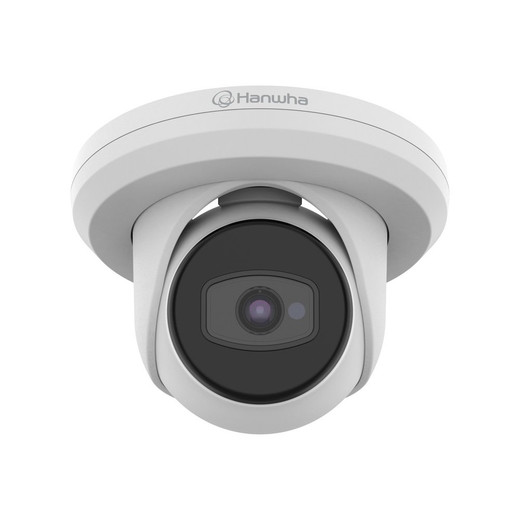

Hanwha ACE-6020R 2MP IR Turret Camera
The ACE-6020R is a compact 2MP fixed turret designed for analog surveillance deployments where legacy DVR infrastructure remains in place. This model supports AHD, TVI, CVI, and CVBS formats—meaning it integrates directly with existing analog systems without requiring format conversion or gateway hardware. Full HD (1920×1080) resolution at 30 FPS delivers sufficient clarity for perimeter identification and entry-point monitoring in outdoor and semi-outdoor environments.
Key Features
- 2MP 1920×1080 Full HD resolution at 30 FPS: Adequate detail for identifying individuals and vehicles at typical perimeter distances; 30 FPS ensures smooth motion capture without excessive bandwidth or storage overhead on legacy analog systems.
- 3.6mm fixed lens with 81° horizontal field of view: Wide horizontal coverage reduces blind spots on building facades and fence lines; fixed lens eliminates motorized focus complexity and power draw.
- 20-meter IR LED range with 0 lux B/W performance: Covers small-to-medium perimeter zones in complete darkness; 20m (65 ft) is sufficient for entry gates, loading docks, and building perimeters. Beyond that, plan for multi-camera placement or increased ambient lighting.
- IP67 and IK10 ratings: IP67 protects against dust and immersion in up to 1 meter of water, making it safe for exposed eaves, covered porches, and semi-outdoor areas. IK10 vandal resistance withstands impacts typical of high-traffic zones. Together, these ratings justify deployment in unattended or exposed locations.
- Automatic day/night with ICR filter switching: Seamless IR filter transitions eliminate manual switching and reduce false alerts from filter artifacts; simplifies remote management on analog systems.
- Digital Wide Dynamic Range (DWDR): Compensates for mixed lighting (e.g., sunlit foreground with shadowed doorway) common in semi-outdoor monitoring, improving usability in variable light without reducing frame rate.
- Ultra-low power consumption: 2.9W typical at 12VDC: Draws minimal current, making the ACE-6020R viable for solar-powered installations, battery backup scenarios, or 12V supply-limited environments where multiple cameras share a single distribution line. Verify your power budget before deploying multiple units.
- Operating temperature −30°C to +55°C (−22°F to +131°F): Handles seasonal extremes from northern winters to sun-exposed outdoor locations without degradation; cold-weather operation does not reduce IR effectiveness.
Video Quality & Night Vision
Color sensitivity of 0.08 lux (F1.6, 1/30 sec) ensures usable color video in low-light dusk or dawn conditions. Electronic shutter control (1/30 to 1/50,000 sec) adapts to rapid lighting changes, and selectable gain (LOW/MIDDLE/HIGH) allows fine-tuning for scenes where motion blur or noise must be balanced. 2D and 3D noise reduction preserves edge detail in low-light B/W footage, reducing pixelation that can obscure facial features or vehicle details.
Integration with Analog Systems
Multi-format support (AHD/TVI/CVI/CVBS) means the ACE-6020R pairs with existing analog DVR hardware without compatibility headaches. If you operate a mixed analog fleet or plan a gradual migration to IP infrastructure, this model maintains feature parity with newer analog variants while avoiding premature DVR replacement. When ready to transition, pair it with a higher-resolution IP camera in the Hanwha surveillance line without disrupting perimeter coverage.
When to Choose a Different Model
If your facility requires IP-native deployment, higher resolution (4MP or above), or motorized zoom, evaluate a higher-megapixel IP turret variant within the Hanwha portfolio. For indoor-only applications with lower durability demands, consult turret camera options designed for climate-controlled spaces. For extended IR ranges beyond 20m or pan-tilt-zoom functionality, consider a motorized turret or PTZ camera in the same family. See our lens and coverage guide to confirm 3.6mm fixed width suits your perimeter layout.
Frequently Asked Questions
Q: What video formats does the ACE-6020R support?
A: The ACE-6020R supports AHD, TVI, CVI, and CVBS (composite) analog video formats. This multi-format capability allows direct connection to most analog DVR systems without format conversion or external gateways.
Q: Is the ACE-6020R suitable for full outdoor/weatherproof installations?
A: Yes. The IP67 and IK10 ratings make it weatherproof and vandal-resistant. It handles rain, dust, and immersion in water up to 1 meter, plus impacts typical of high-traffic or exposed zones. However, it is not rated for complete submersion or prolonged flooding.
Q: What is the maximum range of the IR LEDs?
A: The ACE-6020R delivers 20m (65 ft) of usable IR illumination. This covers typical perimeter zones such as entry gates and loading docks. For larger areas or longer distances, plan for multi-camera placement or supplemental ambient lighting.
Q: How much power does the ACE-6020R draw?
A: The typical power consumption is 2.9W at 12VDC. This low draw makes it suitable for solar-powered or battery-backed installations and reduces strain on shared 12V distribution systems.
Q: Can the ACE-6020R operate in freezing temperatures?
A: Yes. The operating temperature range is −30°C to +55°C. Cold-weather operation does not reduce IR effectiveness or video quality.
Q: What is the horizontal field of view with the fixed 3.6mm lens?
A: The 3.6mm lens provides an 81° horizontal field of view, offering wide coverage suitable for building facades and fence lines while reducing blind spots.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ACE-6020R is a solid play if you're maintaining analog infrastructure and need to extend perimeter coverage without ripping out working DVRs. The multi-format support (AHD/TVI/CVI/CVBS) means you can drop this camera into almost any legacy analog system, and the 2MP resolution will give you acceptable facial and vehicle identification at typical entry-point distances. What sets it apart from generic analog turrets is the combination of IP67/IK10 durability and unusually low power draw—2.9W typical at 12VDC is genuinely useful for remote or solar-powered sites where every watt counts.
Technical Highlights:
- 20m IR range with 0 lux B/W performance: Covers typical perimeter zones (entry gates, loading docks, fence lines up to 65 ft) in complete darkness without auxiliary lighting. Plan for multi-camera placement beyond that range.
- 2.9W typical power draw at 12VDC: Makes the ACE-6020R viable for solar or battery-backed setups where a traditional analog camera consuming 5–8W would quickly drain reserves. Verify total wattage when daisy-chaining multiple units on a single 12V supply.
- IP67 + IK10 ratings with −30°C to +55°C operating range: Survives rain, dust, submersion to 1m, high-impact areas, and seasonal temperature swings from northern winters to sun-baked walls. Cold weather does not degrade IR performance.
Deployment Considerations:
- Fixed 3.6mm lens at 81° horizontal FOV suits building perimeters and fence lines but lacks zoom. If you need variable focal length or pan-tilt capability, step up to a motorized turret in the same family.
- Analog output limits scalability: if you plan a future IP migration, plan for parallel IP deployment or DVR replacement. This is a legacy-infrastructure play, not a forward path.
The ACE-6020R is the right choice for outdoor perimeter extension on working analog systems where durability, low power, and cost-per-camera matter more than resolution or remote manageability. Pair it with an industrial 12V supply and appropriate cabling in exposed environments, and you'll have stable coverage for years.
