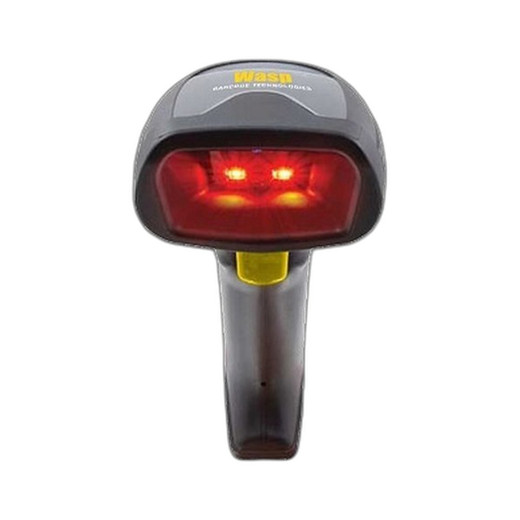

Wasp 633809014413 WWS652 2D Wireless Barcode Scanner
Overview
The Wasp 633809014413 (WWS652) is a handheld 2D wireless barcode scanner built for warehouse, retail, and field operations where mobility and scanning speed matter. The 1 megapixel sensor delivers omnidirectional reads of 1D, 2D, postal codes, stacked barcodes, DotCodes, and digital watermarks without rotation constraints — pitch ±65°, roll 360°, yaw ±65° — eliminating the need for precise label alignment. Bluetooth 4.0 Class 1 wireless connectivity (2.4 GHz, open-air range available on request) removes cable tether, and motion sensing automatically switches between trigger and continuous modes. The scanner pairs with any host system accepting standard barcode input: WMS platforms, POS terminals, asset-tracking software, and ERP applications.
Compatibility
The WWS652 integrates via USB-C, RS-232, USB keyboard wedge, or Bluetooth wireless input to any host accepting HID or serial barcode strings. Confirm your host infrastructure supports at least one of these protocols before deployment. Works with mobile devices via Bluetooth SPP (Serial Port Profile). Aladdin 3.0 software enables barcode programming and setup via smartphone, simplifying field configuration without a PC dependency.
Installation Notes
Wireless pairing must complete before field use. Test Bluetooth range and signal strength at actual deployment locations — Class 1 range varies by environment and wall density. Battery runtime depends on scan frequency and wireless transmission; confirm adequate dock or USB-C charging access for daily shift coverage. The scanner's 7.3 oz weight and 6.2 × 2.7 × 4.2 inch footprint fit palm-first and belt-clip carry. Minimum reading distance depends on bar width: Code 39 5-mil reads 0.2–9.8 inches, Code 39 10-mil reads 0.2–14.9 inches, QR 20-mil reads 0–14.6 inches. Green Spot visual good-read feedback and adjustable beeper tone help operators confirm successful scans in noisy environments.
