Vivotek ND9323P 8-Channel 2TB H.265 NVR with 4x 5MP Cameras

Vivotek ND9323P 8-Channel 2TB H.265 NVR with 4x 5MP IR Bullet Cameras

The Vivotek ND9323P-2TB-4IB80 is a comprehensive surveillance bundle engineered for small to medium-sized businesses requiring robust security infrastructure. This system combines an 8-channel H.265 Network Video Recorder with four 5MP infrared bullet cameras, delivering professional-grade monitoring, recording, and playback capabilities in a single integrated package.

System Overview

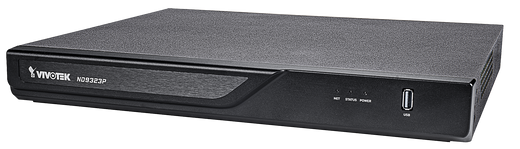

The ND9323P NVR is built on embedded Linux architecture and features dual 3.5-inch HDD bays supporting RAID 0 and RAID 1 configurations for redundancy. With 8 integrated PoE+ ports, the system eliminates the need for separate power supplies, simplifying installation while reducing infrastructure costs. The 2TB storage capacity combined with H.265 compression technology provides extended recording duration with minimal bandwidth consumption—ideal for continuous surveillance operations.

Video Performance and Display

• 4K video decoding up to 3840x2160 at 30 fps (single channel)
• Multi-layout live view including 1x1, 2x2, 3x3, Picture-in-Picture, and custom configurations
• Dual video outputs: HDMI (4K capable) and VGA for flexible display integration
• Hardware-accelerated decoding for efficient processing
• 4-channel playback with synchronized or independent timeline control

Recording and Storage Management

The system supports multiple recording modes—continuous, scheduled, manual, and event-triggered—with flexible pre and post-event recording windows (5–10 seconds pre-record; 20–300 seconds post-record). Recording throughput reaches 64 Mbps, and the recycling mode automatically manages disk space based on retention policies. Video watermarking protects against tampering, while S.M.A.R.T. monitoring alerts operators to potential HDD failures before data loss occurs.

Intelligent Event Management

• Motion detection and Smart VCA (Video Content Analysis) event triggers
• PIR detection, tampering alerts, and camera disconnection notifications
• Customizable event actions: email with snapshots, buzzer alerts, FTP uploads, PTZ control, and CMS integration
• VCA event search for rapid forensic video retrieval
• Crowd control and VCA counting solutions supported

Remote Access and Mobile Monitoring

Full remote access is enabled through VIVOCloud cloud services and iViewer mobile apps (iOS/Android), supporting real-time live view, event playback, and instant push notifications. HTTPS encryption, IPv6 support, and IP filtering provide secure network communication. ONVIF Profile S compliance ensures interoperability with third-party cameras and management systems.

Camera Specifications

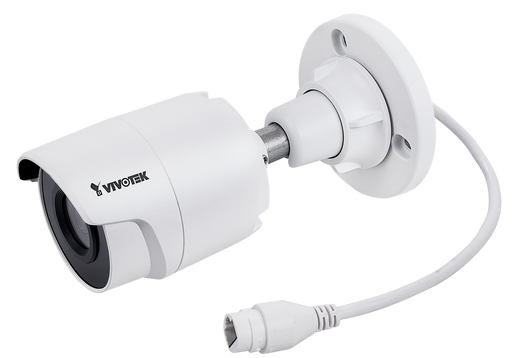

The included four 5MP IR bullet cameras deliver superior image clarity in daylight and low-light conditions. Operating at 30 fps with H.265 compression, they provide efficient bandwidth utilization while maintaining detail for forensic analysis. PoE+ powering from the NVR eliminates external power requirements.

Security and Compliance

Advanced cybersecurity features include Trend Micro IoT Security integration, multi-level user management (administrator/regular user), comprehensive system logging, and PoE management monitoring. The system holds CE, FCC, UL, and CB certifications.

James Everett

The ND9323P represents solid mid-tier NVR engineering with practical features for professional deployments. H.265 codec efficiency is the standout advantage—achieving longer retention on 2TB versus older H.264 systems without sacrificing image quality. Hardware decoding ensures smooth 4-channel playback without CPU strain.

The combination of dual HDD support and RAID options addresses data integrity requirements in mission-critical environments. Event-triggered actions and VCA capabilities reduce operational overhead by automating alert workflows. For organizations balancing budget constraints with reliability demands, this bundle provides genuine value through integrated camera inclusion, eliminating SKU multiplication and compatibility risk.

The 8-port PoE+ design scales well for future expansion, though users should verify HDD compatibility against Vivotek's recommended list to ensure warranty support.

Applications

• Retail storefronts and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics facilities
• Small municipal installations
• Multi-tenant properties requiring zone-based monitoring
