Model:
ND9323P
Operating System:
Embedded Linux
Watchdog:
Hardware + Software
Power Restoration:
System Restart Automatically after Power Recovery
LiveView Display:
8 channels, multi-layout display
Video Outputs:
HDMI x1, VGA x1
Display Resolution:
3840x2160, 1920x1080, 1280x720
Stream Application:
Constant\Auto Stream
Fisheye Dewarp:
Local: 1O, 1R, 1O3R, 1O8R; Web: 1O, 1R, 1P
PTZ Operation:
Direction Control, Preset, Patrol, PiP
Video Format:
H.265, H.264, MJPEG
Graphic Decoder:
Hardware decoding
Decoding Resolution:
Up to 3840x2160
Decoding Capability:
3840x2160@30fps (1-CH) / 1920x1080@120fps (4-CH)
Audio Format:
G.711, G.726
Audio In/Out:
3.5mm audio out x1, audio in x1
Recording Time (sec:
Pre-Record: 5 (Max. 10); Post-Record: 20 (Max. 300)
Recording Stream:
Single
Recording Throughput:
64 Mbps
Recording Mode:
Continuous, Schedule, Manual, Event
Recording Setting:
Recycle (unit: Day)
Watermark:
Supported
HDD Devices:
Internal x2 (3.5"); *HDD is purchased by separately.
HDD Max. Capacity:
*Please refer to recommended HDD list on the VIVOTEK website.
RAID Support:
RAID 0, 1
Disk Management:
Create, Format and Remove Disk; HDD S.M.A.R.T.
External Storage:
USB Storage (USB 3.0)
Video Clip Export:
USB Dongle (FAT Format)
Schedule Backup:
FTP
Playback Display:
4 Channels; Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
Playback Control:
Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search:
By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard:
Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot:
JPEG
Ethernet:
10/100/1000Mbps Ethernet (RJ-45) x1
Network Throughput Input/Output Total:
88 Mbps
Power Type:
PoE+
PoE Management:
Supported
Protocols:
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB:
Front: 1 (USB 3.0); Back: 1 (USB 2.0)
Alarm In:
4
Alarm Out:
1
Audio In/ Out:
3.5mm Jack Audio In/Out x2
Camera Integration:
ONVIF Profile S
Event:
Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
Event Action:
Video recording, email, buzzer, PTZ, FTP, DO
User Management:
User level: administrator, regular user
Log:
System, recording, user, error
Date & Time:
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language:
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
VCA Counting Solution:
Supported
VCA Event Search:
Supported
Trend Micro IoT Security:
Supported
Cybersecurity Management:
Supported
Crowd Control Solution:
Supported
Software AP:
Shepherd, VAST 2
Mobile/Tablet App:
iViewer (Android & iOS)
Web Browser:
IE 10+ or Chrome 68+/Windows
VIVOCloud:
Supported
Input Voltage:
100-240V AC, 50/60Hz
Power (Max:
Max. 175 W
Dimensions:
366 (W) x 320.3 (D) x 46 (H)mm
Weight:
2.5 kg (without HDD)
Operating Temperature:
0°C ~ 40°C (32°F ~ 104°F)
Humidity:
0 ~ 95%
Safety Certifications:
CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
Frame Rate:
30fps

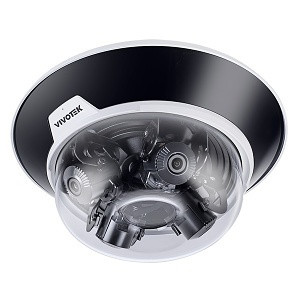

Product Type:
Dome
Connectivity:
Wired
Resolution:
5MP
Video Compression:
H.265
Storage Capacity:
microSD
Housing Color:
White
